Back-Up Light, Clear, Round, Le: 4-19/64 in
#TRL49003C
Product Overview

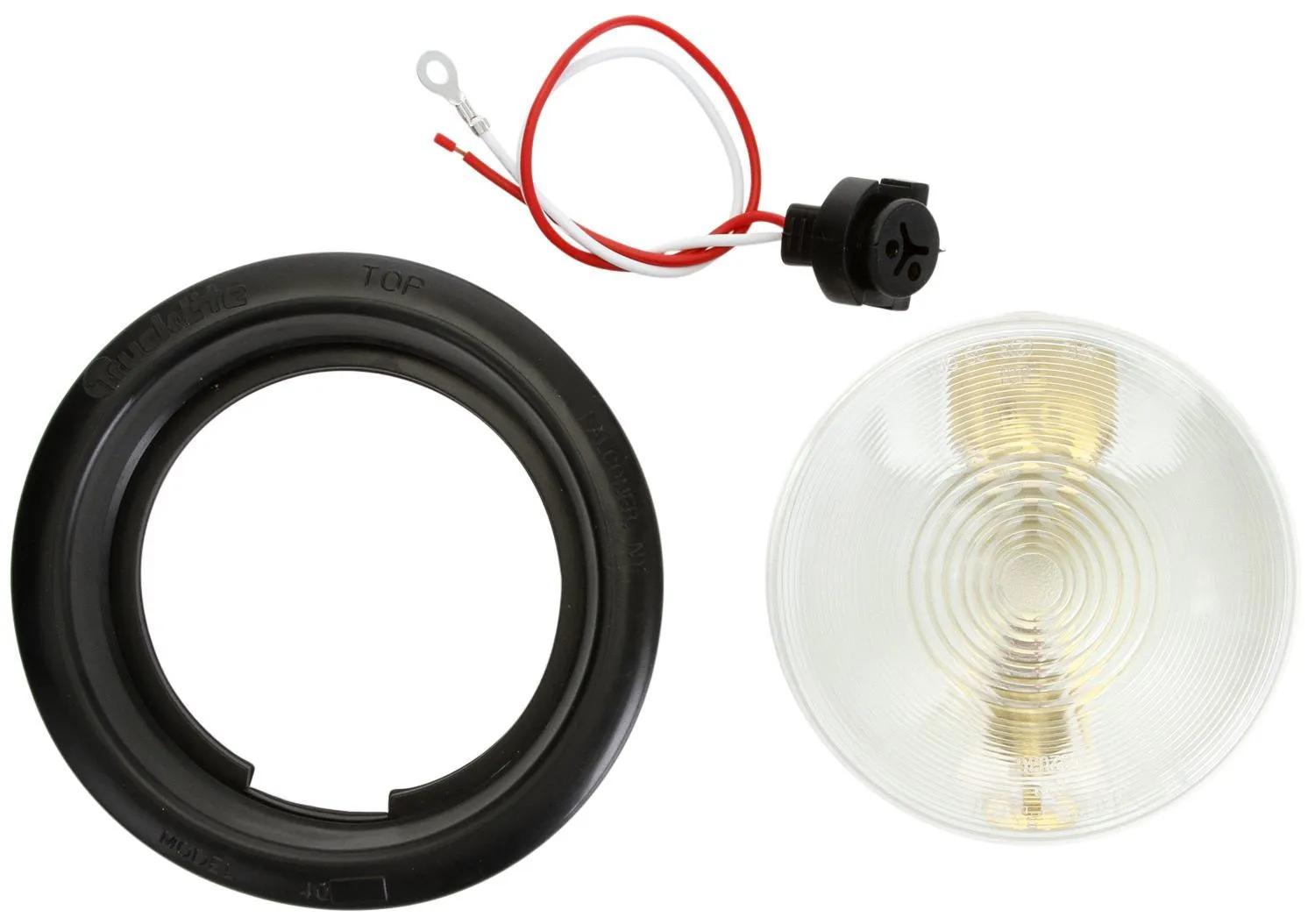

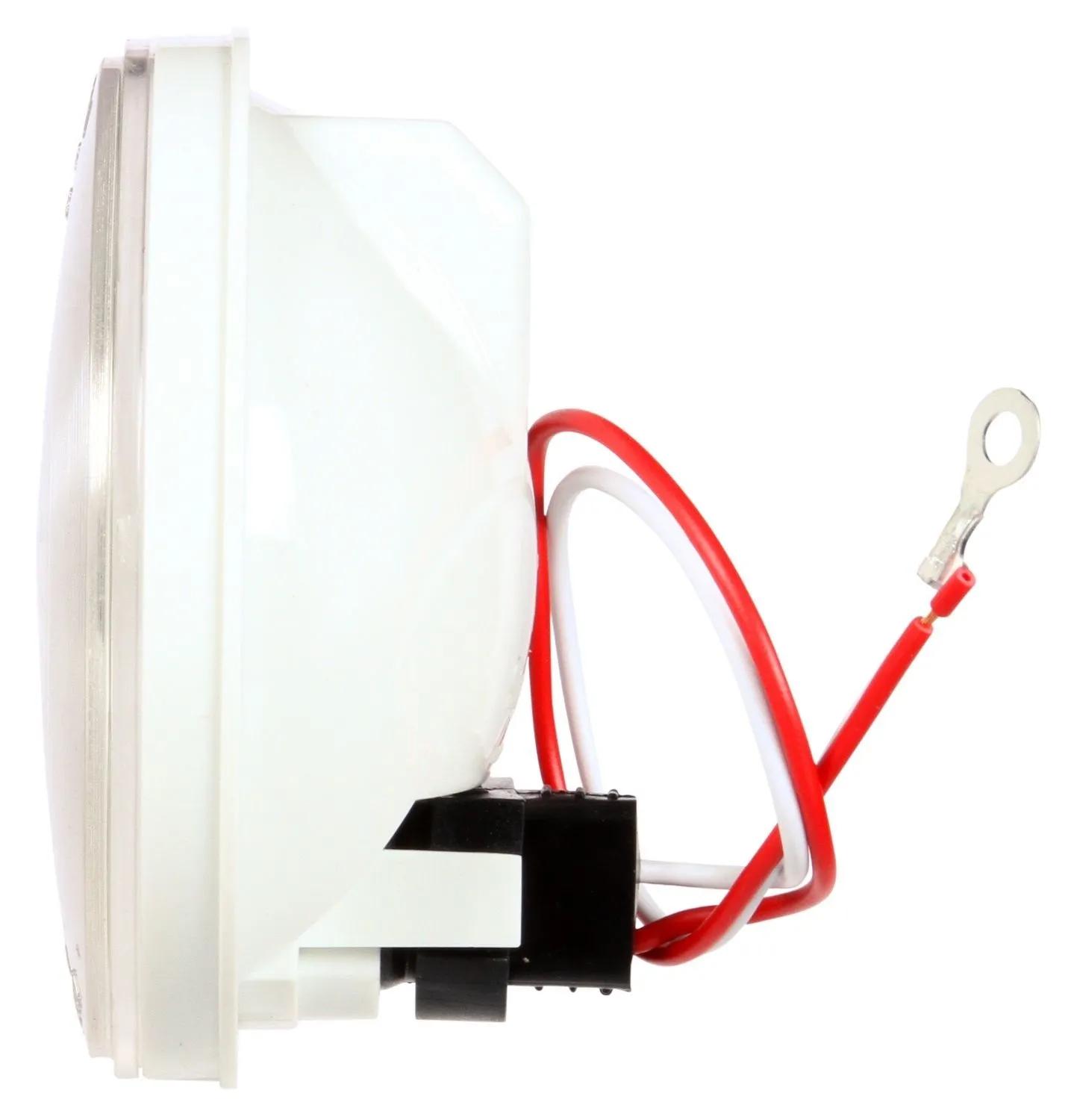

Male Pin, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Black Grommet Mount, PL-2 , Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Features male pin connections
- High-impact polycarbonate lens and housing
- Shock mount resists road shock and vibration
- Two lamps required to meet federal lighting regulations
- Not recommended for dome lamp use
- Replaces Grote #62211
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 2.1 amp |
| Color | White |
| Common Size | 4 in (10.16 cm) |
| Contents | Lamp Kit |
| Depth | 2-1/32 in (5.16 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 96107 |
| Height | 5-9/32 in (13.41 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Lamp Type | Sealed |
| Length | 4-19/64 in (10.92 cm) |
| Lens Height | 4 in (10.16 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4 in (10.16 cm) |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Back-Up Light |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 0.2 lb (0.09 kg) |
| Width | 5-9/32 in (13.41 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 49003C |
| T41WC0T1 |
| TL49003C |
| TLD49003C |
| TRU49003C |
| 8413-49003C |
| LIT49003C |
| T41-WC0T-1 |
| TL 49003C |
| TL 49003C |
| 62121GR0 |
