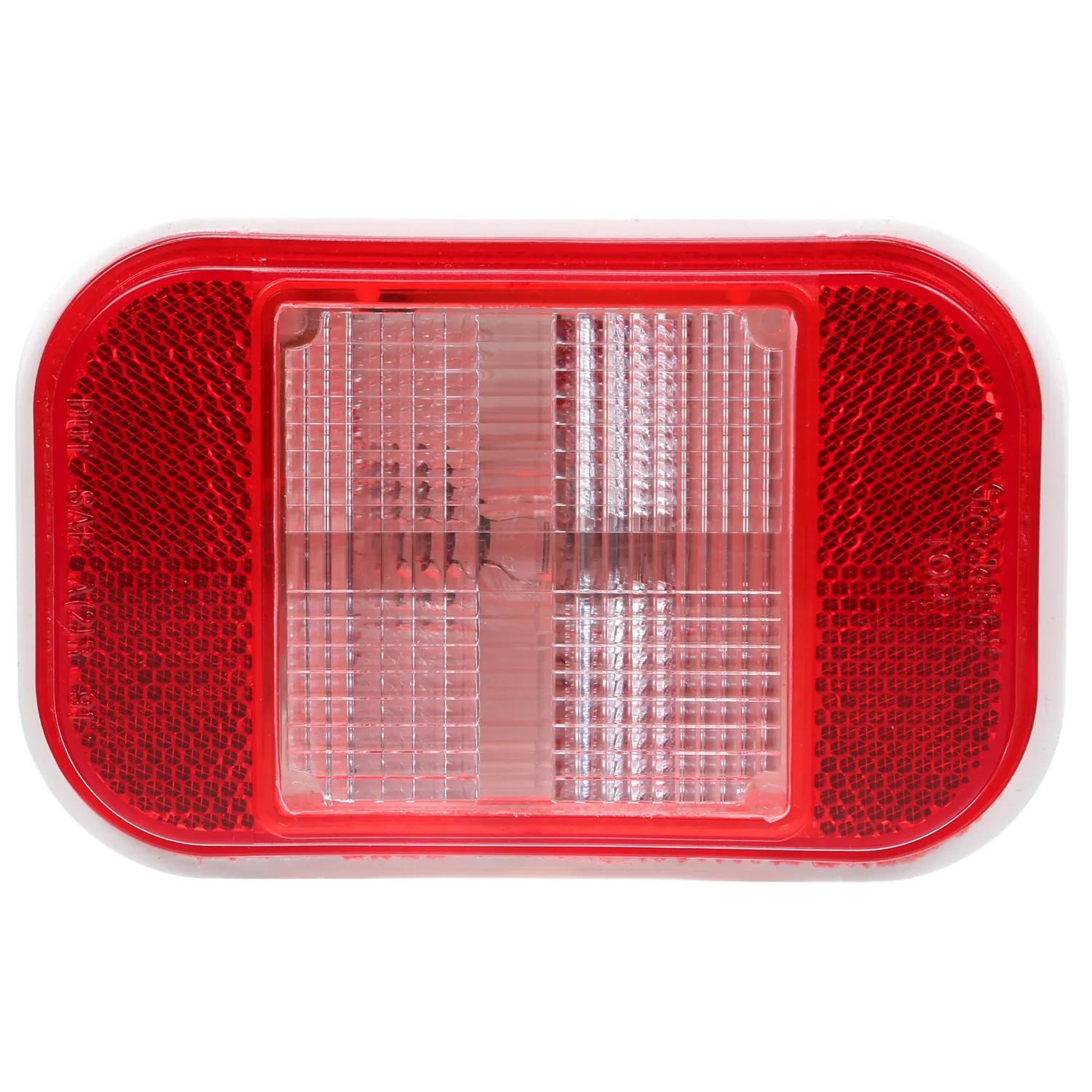

Back-Up Light, Rectangular, Le: 5-5/16 in
#TRL45024
Product Overview
45 Series, Reflectorized, Incandescent, Clear Rectangular, 1 Bulb, Back-Up Light, White Grommet Mount, PL-2, Packard Connector 12020398, 12V, Kit
Features & Benefits
- Direct replacement for approved lamps on United States Postal Service LLV (Long Life Vehicle)
- Designed for mounting on a 7 - 11 degree rollback from the vertical plane
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 2.1 amp |
| Color | White |
| Common Size | 3 in (7.62 cm) |
| Contents | Grommet Kit |
| Depth | 1-27/64 in (3.61 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94841 |
| Height | 5-5/16 in (13.49 cm) |
| Housing Color | White |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Lamp Type | Sealed |
| Length | 5-5/16 in (13.49 cm) |
| Lens Height | 2-45/64 in (6.86 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 2-45/64 in (6.86 cm) |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Packard Connector |
| Product Type | Back-Up Light |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | A, R |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 0.54 lb (0.24 kg) |
| Width | 3-13/32 in (8.66 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 45024 |
| 81600296 |
| 841345024 |
| HT50601977 |
| TL45024 |
| TLD45024 |
| 45024-3 |
| 5113W |
| 5113W3 |
| 8413-45024 |
| LIT45024 |
| TL 45024 |
| TL 45024 |
| 62381GR0 |
| 522023 |
