Pedestal Light, 24 Diode, Signal-Stat LED, Red/Yellow, Square, Chrome, Hardwired, 12V
#TRL2756
Product Overview

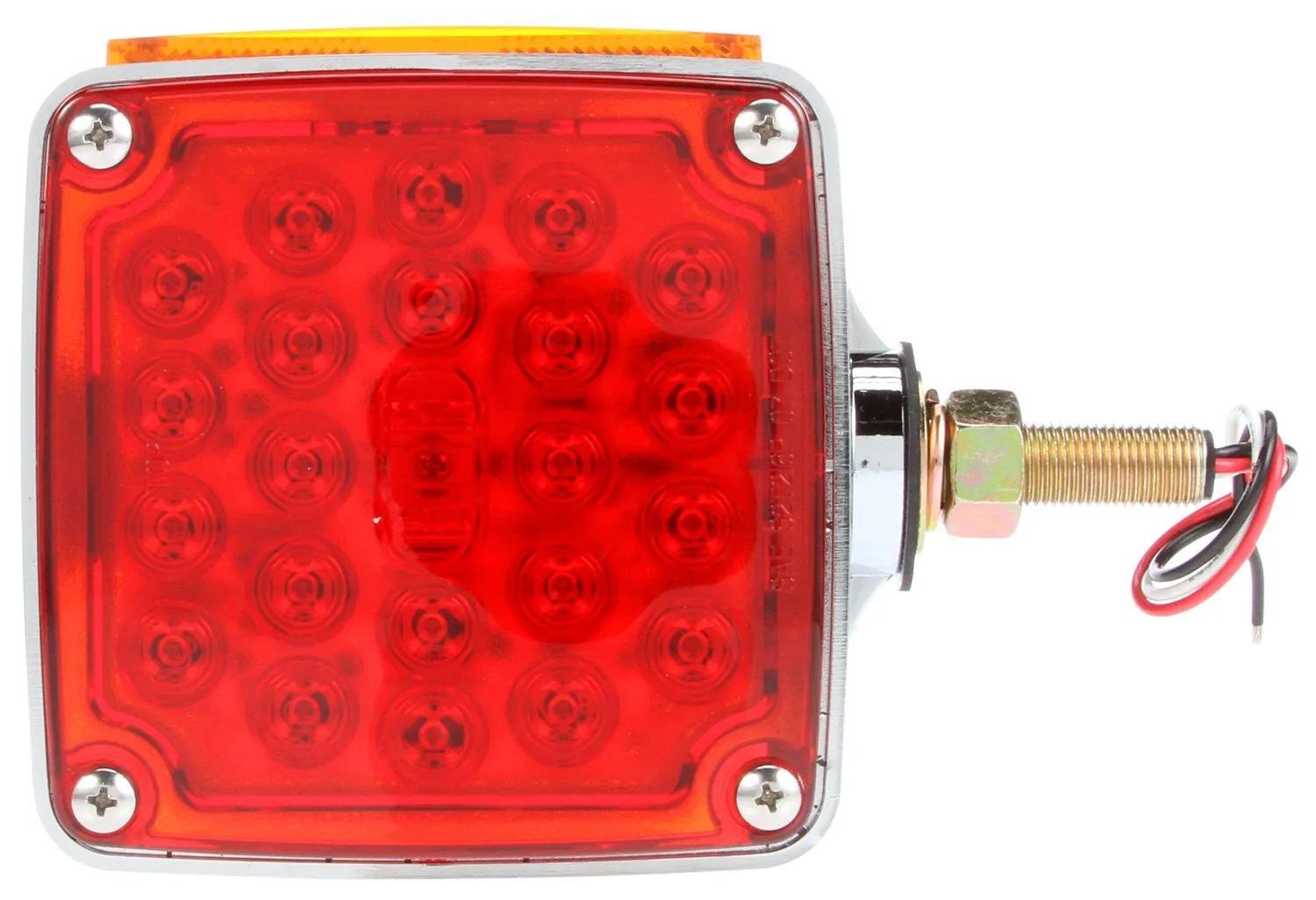

Signal-Stat LED pedestal light featuring a red/yellow square lens with 24 diodes. Designed for right-hand vertical mount with dual face and side marker functionality. Equipped with 3 wires and a single stud chrome-plated housing. Hardwired connection with stripped end/ring terminal. Durable polycarbonate lens and epoxy-encapsulated electronics protect against chemicals and moisture. Meets FMVSS 108, DOT, SAE, and SAE J974 standards for agricultural warning devices.Pedestal Light, 24 Diode, LED Bulb, Hardwired, 1 Stud, Polycarbonate, Chrome, Red/Yellow, 4.92 in H, 0.38 in L, Light Function: I6, Signal-Stat, Square, 12 V, Warranty: 2 Years, 4.74 in W
Features & Benefits
- Ideal for show trucks, highway, mowing, municipal and farm equipment
- Unique LED array displays full pattern output
- Side marker reflex reflector
- LEDs have no filament, therefore are extremely resistant to shock and vibration
- 18 Diode Pattern w/ Chrome-Plated Housing. Single-Stud Mount
- LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- Chrome plated housing
- Meets SAE J974 for agricultural warning devices
- Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture
Specifications
| Type d'ampoule | DEL |
| Bougie (cp) | 24 diodes |
| Type de connexion | Câblé |
| Profondeur | 2-13/32 po |
| Hauteur | 4-35/64 po |
| Couleur du boîtier | Chromé |
| Longueur | 4-23/32 po |
| Couleur des lentilles | Rouge/Jaune |
| Matériel | Polycarbonate |
| Type de fixation | Goujon |
| Quantité | 1 |
| Forme | Carré |
| Standards | FMVSS 108, DOT, SAE, SAE J974 |
| Type | Feu piédestal |
| CUP | 7351111169451 |
| Tension nominale | 12 V |
| Garantie | 2 ans |
| Poids | 0,63 kg |
| Largeur | 4-47/64 po |
| Courant nominal | 0,38 A |
| Fonction d'éclairage | I6 |
| Gamme de produits | Signal-Stat |
| Catégorie de produit | Feu piédestal |
Interchanges & Equivalent parts:
| 2756 |
| 2756S1G |
| 8413-2756 |
| TL 2756 |
| TL2756 |
| TLD2756 |
| 321 |
| G5543-5GR0 |
| GRTG5543-5 |
