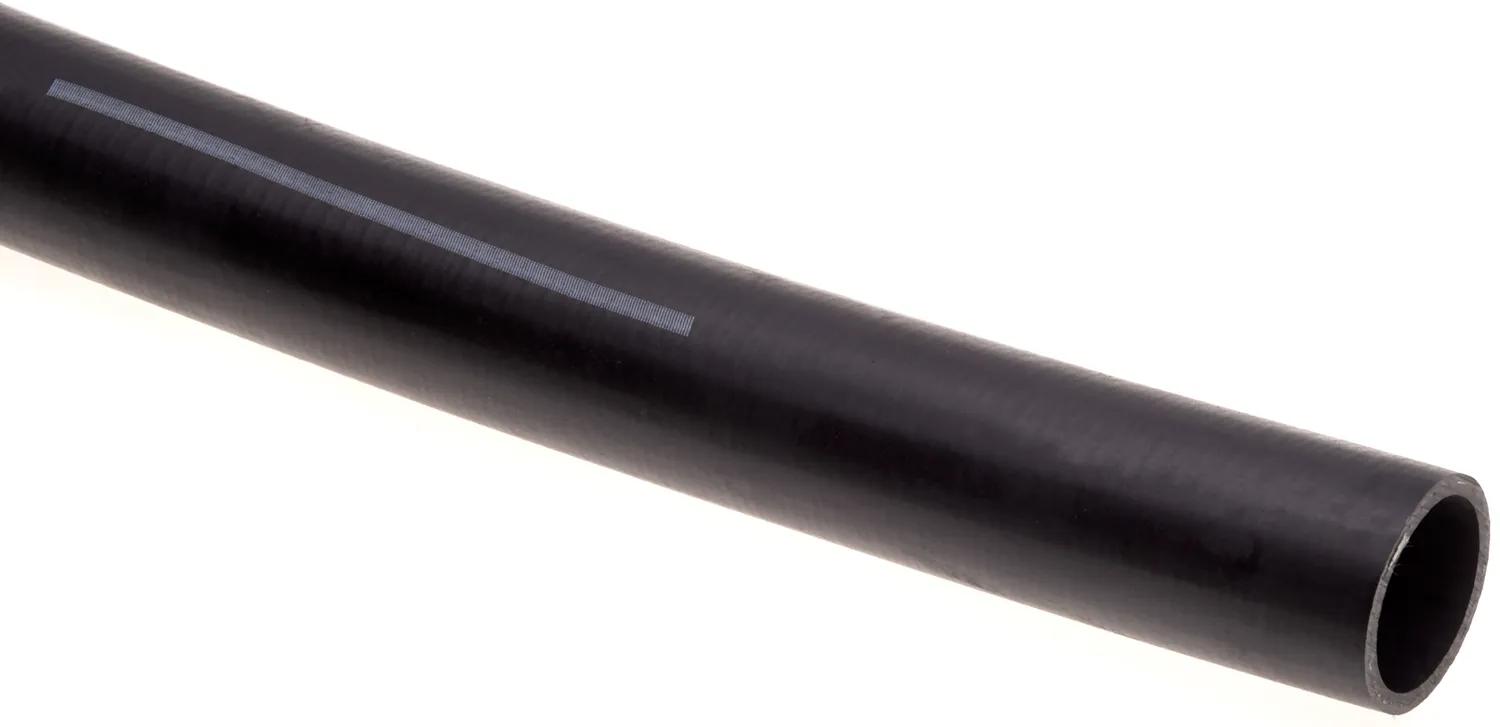

Filler Neck Hose, ID: 1-1/4 in
#GAT23963
Features & Benefits
- 4663K
- Meets SAE 30R5 - Wall thickness is 4.47±1.42mm (0.176±0.056 inch) excluding embedded wire area.
- Meets SAE 30R6 or SAE 30R7*(*except oxidized gasoline test)
- Offered in bent formed configurations and straight
- Nitrile tube, synthetic fabric reinforcement w/2 embedded helical wires, neoprene coated fabric cover
- Nitrile tube, synthetic knit reinforcement, modified nitrile cover
Specifications
| Inside Diameter 1 (in) | 1-1/4 in (3.18 cm) |
| Length | 2-63/64 ft (0.91 m) |
| Note | Use Gates Super Hex clamps for reliable installation. |
| Pressure | 20 psi (1.38 bar) |
| Temperature Range | -40°F @ 212°F with gasoline blends, -40°F @ 125°F with bio-diesel (B20) |
| Type | Gasoline Filler Neck Hose |
| Weight | 1.44 lb (0.65 kg) |
