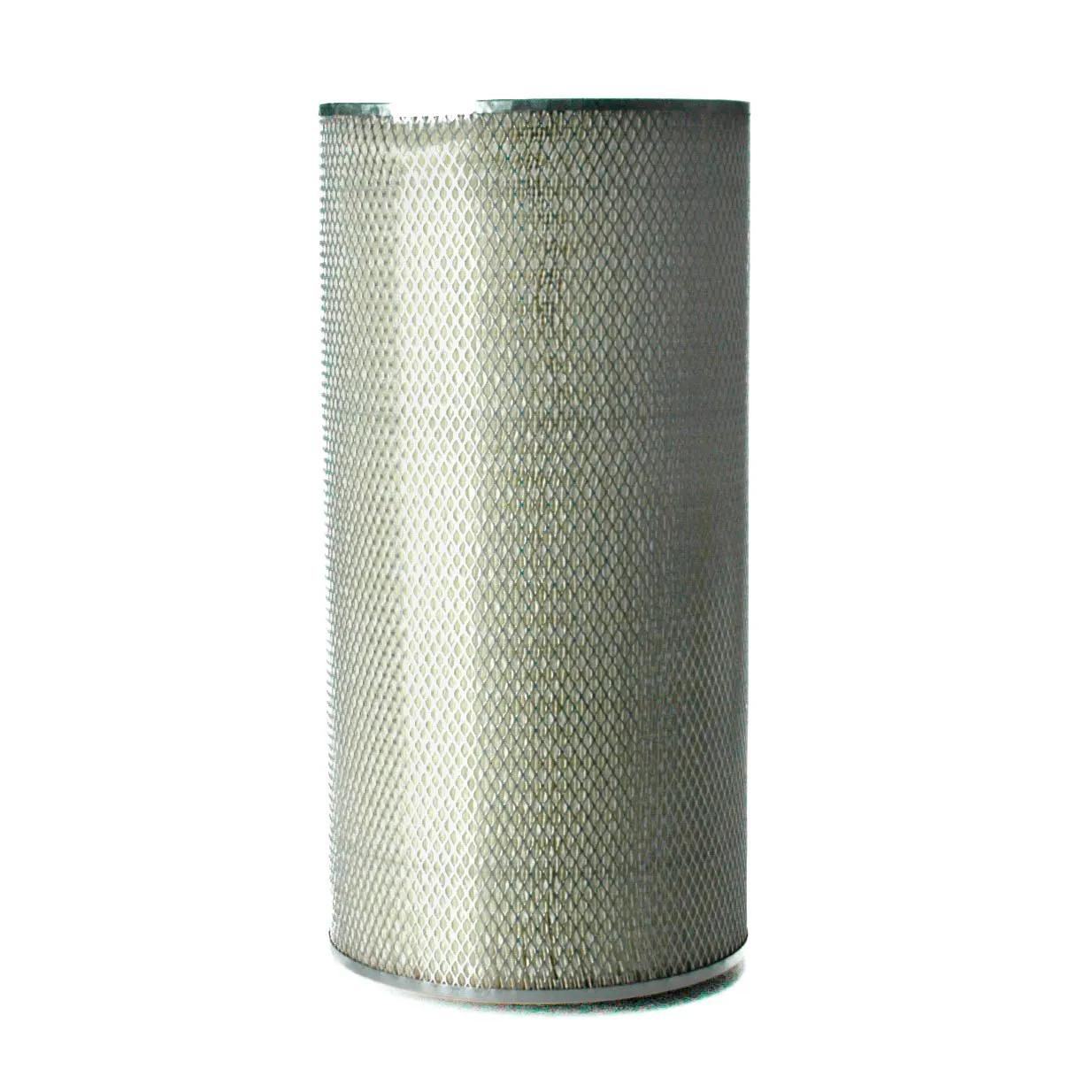

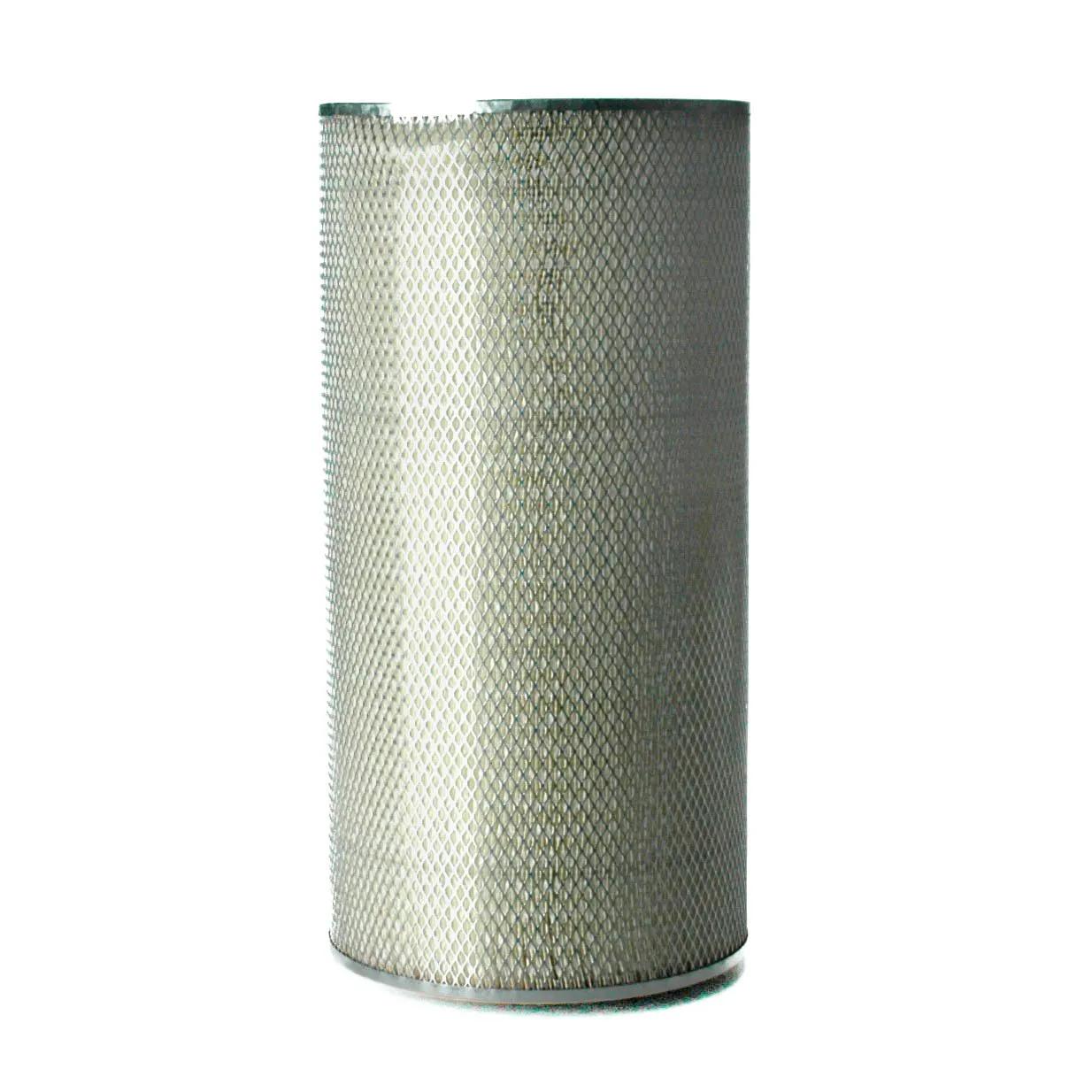

Donaldson Primary Air Filter, Cellulose Media, 24.5 in Length, 12.09 in Outer Diameter, 7.73 in Inner Diameter, 99.9% Efficiency
#DONP127308
Product Overview
Air Filter, Primary, Cellulose Media, Bolt Hole Diameter: 0.89 in, 99.9 Filter Efficiency, 7.72 in ID, 12.09 in OD, Standards: ISO 5011, Round
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
- Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life
Specifications
| Bolt Hole Diameter | 0.89 in (22.7 mm) |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 7.73 in (196.4 mm) |
| Length | 24 in (609.6 mm) |
| Outer Diameter | 12.09 in (307.09 mm) |
| Style | Round |
| Filter Efficiency | 99.9 |
| Filter Type | Primary |
| Media Type | Cellulose |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ARM127308 |
| PA2902 |
| CFM2016 |
| 88854 |
| AF1921 |

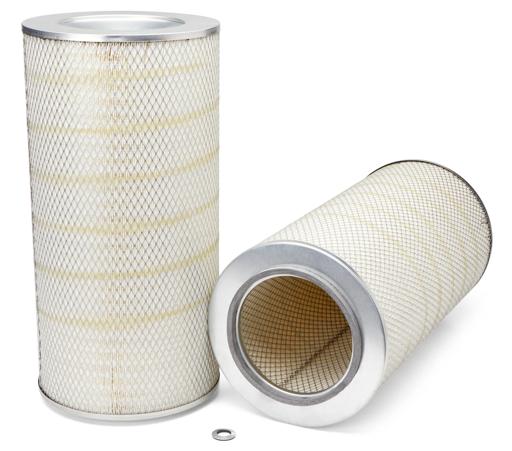

| AF1921M |
| FA7308 |
| AFR81921 |
| AFR81921M |
| CA6319 |
| AF2087 |
| A7308 |
| HDA7308 |
| SA11871 |
| LA1410 |
| LAF8634 |
| A1443C |
| 6854 |
| 70810N |
| A85087 |
| A5629 |
| A56291 |
| SL81155 |
| SFA2180P |
| 2787100 |
| 46854 |
| 546854 |
| IA3363 |
| A5629A5630 |
| SFA2180SET |
| 94854 |
| HF374 |
| 3098170130 |
| 3872336 |
| 4240294 |
| 5610212330 |
| 7Y1196 |
| 3I0202 |
| 7Y11OO |
| AEM2064 |
| 799333 |
| 71497009 |
| 9576P127308 |
| FC599 |
| G127308 |
| 4240294HCS |
| HJ4240294 |
| L4240294 |
| 1141250820 |
| 1142150820 |
| 1142151300 |
| 1142151930 |
| AT179371 |
| 3098160150 |
| 3098170480 |
| 2446U367S2 |
| 2446U367SAM2 |
| PCE05015 |
| 5610212600 |
| 5610262330 |
| KUH0026 |
| 3H2052 |
| 20713 |
| G4742 |
| KFA0233363 |
| 4722038800 |
| 4722038801 |
| 4722038802 |
| 7116200380000 |
| 71414760 |
| Y05995700 |
| SFA369 |
| 4044434 |
| T47810 |
| 686756 |
| AF127308 |
| 810701 |
| WGA474 |
| 020713 |
| 00810701 |
| DN P127308 |
| DN P127308 |
| 1-14215082-0 |
| 2191-P127308 |
| 3I-0202 |
| 3I02 |
| PX951 |
| 6196 |
| 2VMJ7 |
| ARM-12-7309 |
