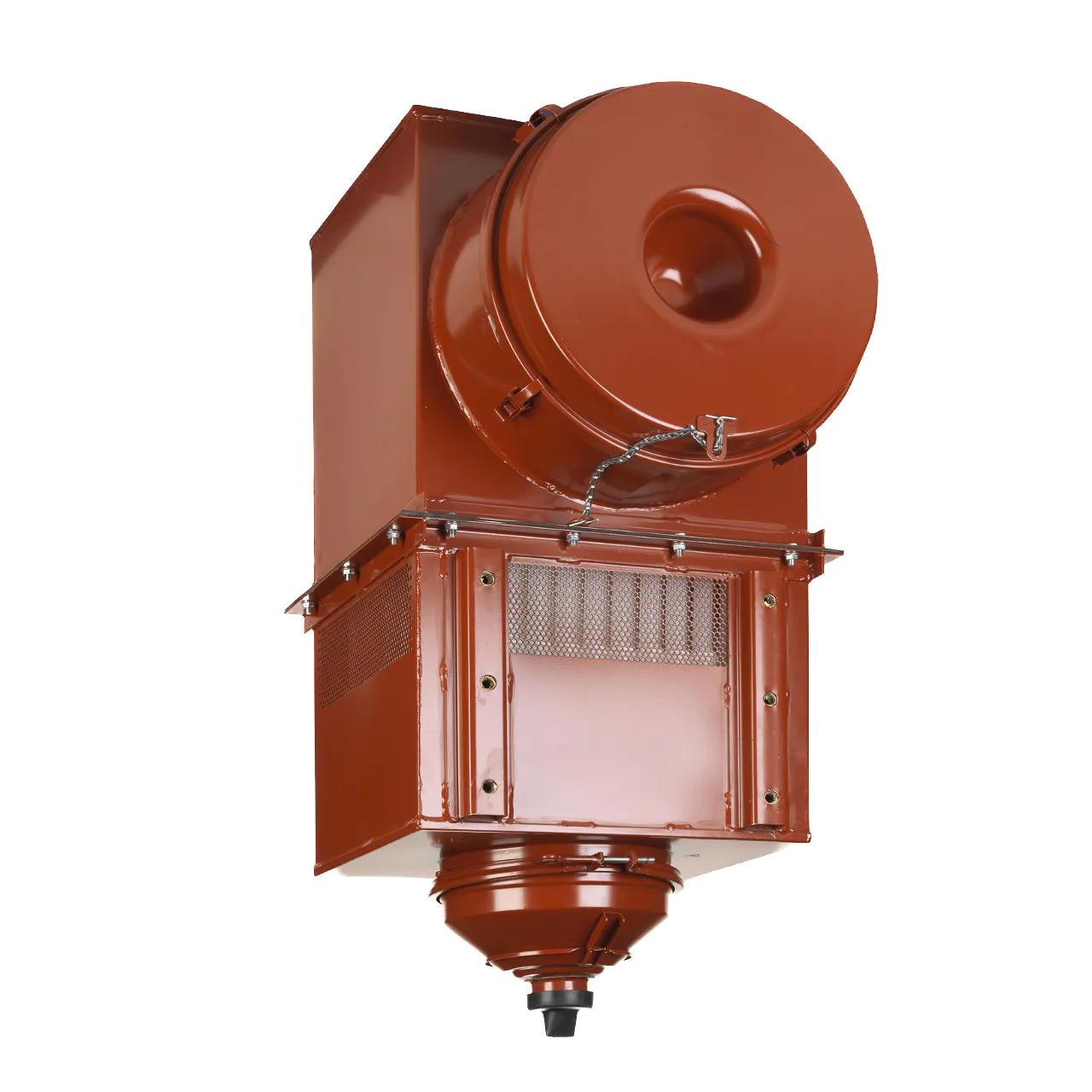

Donaldson Air Cleaner Vertical, 26.18 in Length, 19.67 in Body Diameter, 8 in Outlet Diameter, 1699 CFM (LR), 1978 CFM (HR)
#DONG200087
Product Overview
Air Cleaner, Vertical, 1699 CFM (LR), 1978 CFM (HR), 19.67 in Body Dia, 7.99 in Outlet Dia, Pressure Drop: 5.98 in (LR), 7.99 in (HR), SSG, 29.24 in L, 20.98 in W, 15.75 in H
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 19.67 in (499.7 mm) |
| Diameter Range | 10 to 10.99 in |
| Family | SRG |
| Height | 15.75 in |
| Length | 26.18 in (665 mm) |
| Outlet Diameter | 8 in (203.2 mm) |
| Rated Flow High Range | 1978 cfm (56.02 m³/min) |
| Rated Flow Low Range | 1699 cfm (49 m³/min) |
| Restriction HR | 8 in H2O (203 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Series | SSG |
| Length Range | 26 to 26.99 in |
| Style | Vertical |
| Width | 20.98 in (532.9 mm) |
| Airflow Rate | 1699 CFM (LR), 1978 CFM (HR) |
| Body Diameter | 19.67 in |
| Filter Type | Vertical |
| Product Category | Air Cleaner |
Interchanges & Equivalent parts:
| G200087 |
| PC2556 |
| DN G200087 |
| 803305490 |
| 001036002 |
| 2191-G200087 |
| DONG200087 |
| 1036002 |
