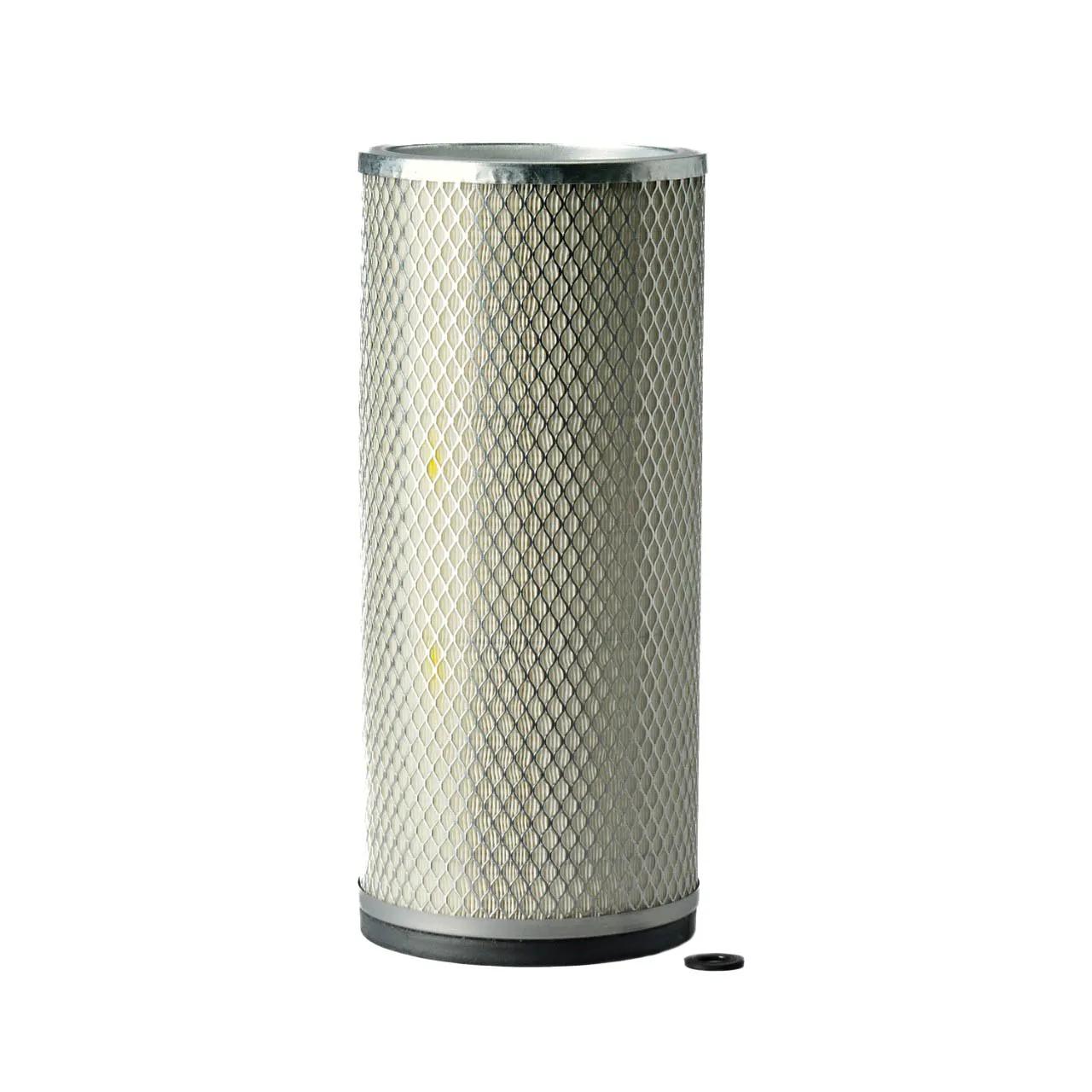

Air Filters L: 14 in, OD: 6,4 in, ID: 5,29 in
#DONP134354
Product Overview
Why Choose Donaldson Safety Filters?
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 6 to 6.99 in |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 5.29 in (134.4 mm) |
| Length | 14 in (355.6 mm) |
| Outer Diameter | 6.4 in (162.4 mm) |
| Length Range | 14 to 14.99 in |
| Style | Round |
| Type | Safety Air Filter |
Interchanges & Equivalent parts:
| ARM134354 |
| ARM52221 |
| ARM52224 |
| PA2578 |
| PA3689 |
| CFM960 |
| 88545 |
| P823366 |
| 9787 |

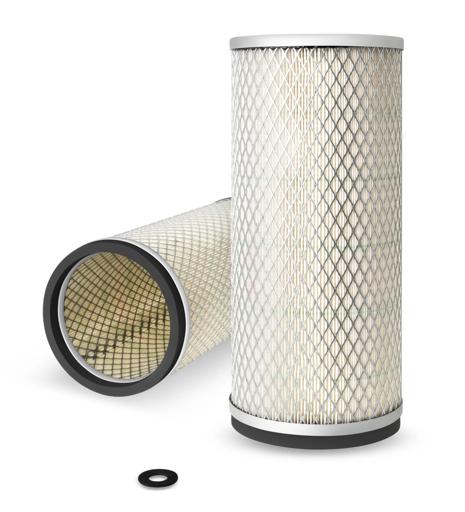

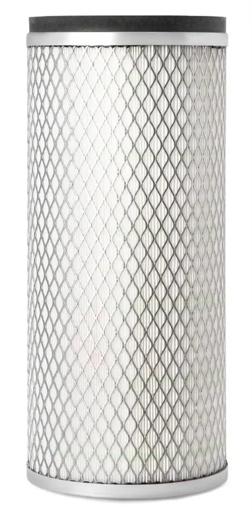

| AF1863M |
| AF1863MT5222 |
| AF4866 |
| AFR81863M |
| AFR84866 |
| CA5021SY |
| AF654 |
| A4354 |
| HDA4354 |
| SA11813 |
| LA960 |
| LAF1835 |
| A1074C |
| CF16158Z |
| AC6413B |
| AV7480B |
| 29A4608 |
| 6545 |
| 84929S |
| AP51250 |
| A63518 |
| AF3518 |
| HDA5260 |
| HDA5649 |
| A7607 |
| SL8916 |
| SFA4354S |
| SFA7599S |
| 46545 |
| AE26020 |
| 1601 |
| 94545 |
| A2287A |
| A399B |
| 841061700 |
| 3I0299 |
| 3I1436 |
| 3I1444 |
| 9Y6825 |
| 1991960 |
| AES2075 |
| 9720 |
| GEO695 |
| 4700928915 |
| 928915 |
| 17801406 |
| 14440039 |
| 1444039 |
| AIR039 |
| 9576P134354 |
| DNP134354 |
| FA3475 |
| FC2010 |
| FC422 |
| 1275A |
| G134354 |
| 10031876 |
| 31876 |
| S17801311M |
| 178013110 |
| 71426641 |
| L4288964 |
| T52224 |
| 1142150870 |
| 1142151250 |
| 1142151251 |
| 1142151510 |
| 142151510 |
| 92956389 |
| AT50526 |
| AT57784 |
| 2446R273S1 |
| 2446U191S2 |
| 20701K1290 |
| 6001811680 |
| 6001823100 |
| EF722 |
| 21310 |
| 12472378 |
| ME063140 |
| 1654696072 |
| 1654699202 |
| 1654699425S |
| 16546Z9026 |
| D6546Z9008 |
| D6546Z9026 |
| FL546Z9008 |
| TJ841061700 |
| AF6545 |
| 12607137 |
| 15810 |
| 410617 |
| 8410317 |
| 8410617 |
| 841071700 |
| T5224 |
| 686864 |
| 126 |
| 88544 |
| PA2577 |
| 93223 |
