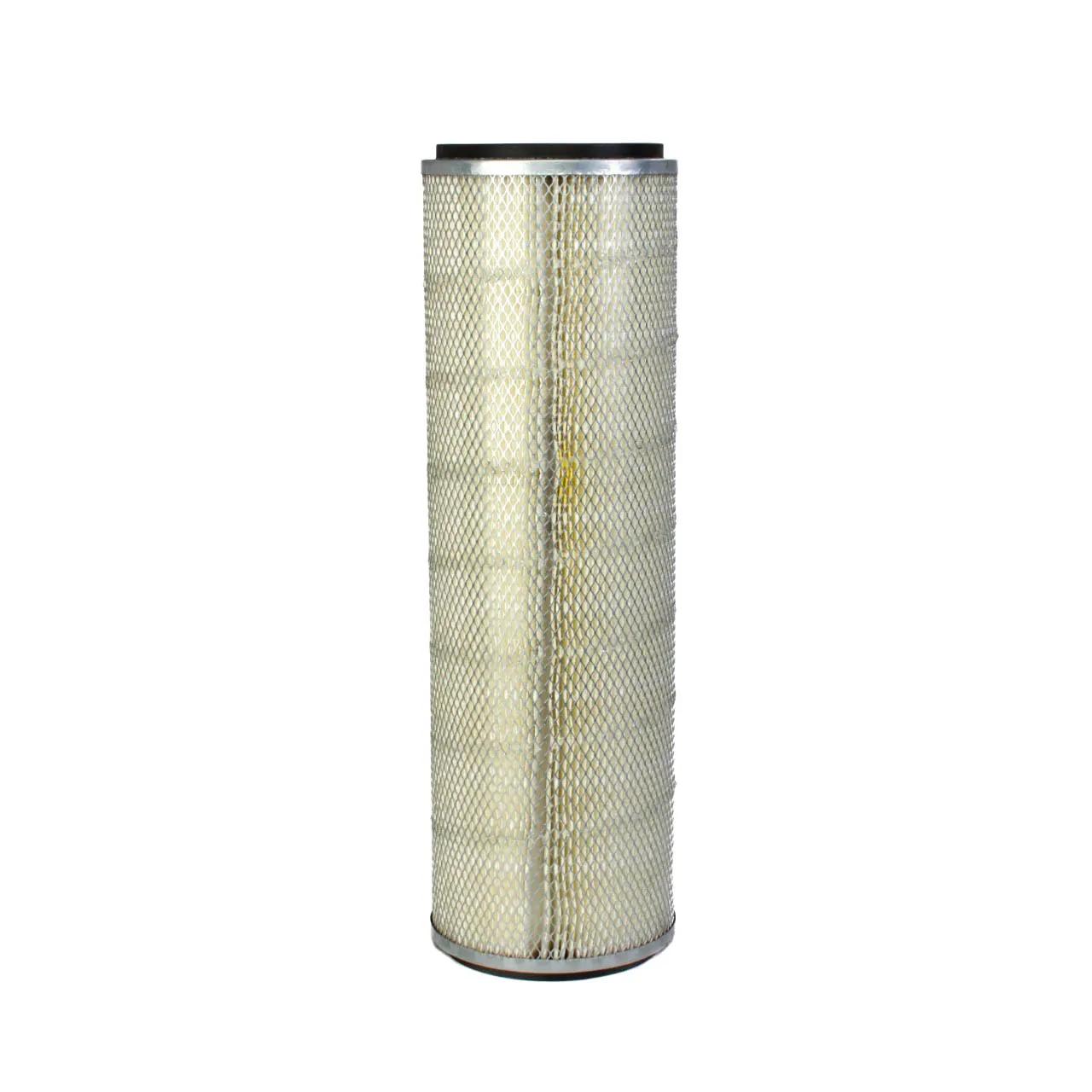

Air Filters L: 27,5 in, OD: 8,85 in, ID: 5,48 in

#DONP181097

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Diameter Range 8 to 8.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 5.48 in (139.2 mm)
Length 27.5 in (698.5 mm)
Outer Diameter 8.85 in (224.6 mm)
Overall Length 28 in (711.2 mm)
Length Range 27 to 27.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P181097
2820
42820
542820
ARM32
LL2532
PA2532
CFM917
87820
LAF9532
AF1603M
FA250D32
AFR81603M
CA2568
CA3707A
AF607
A1603
HDA1603
LA917
FA863
70584N
A83312
A83312Q
AF3312
AF3312Q
250D32
250D32S
A786C
1445
93820
E1FZ9D695B
3I0844
9576P181097
E7FZ9D695A
DNP181097
2030100
N1188
N3088
T3088
AF2820
AF181097
WGA674
DN P181097
2034764
2191-P181097
25040902
CA3517
DONP181097
DN P181097
