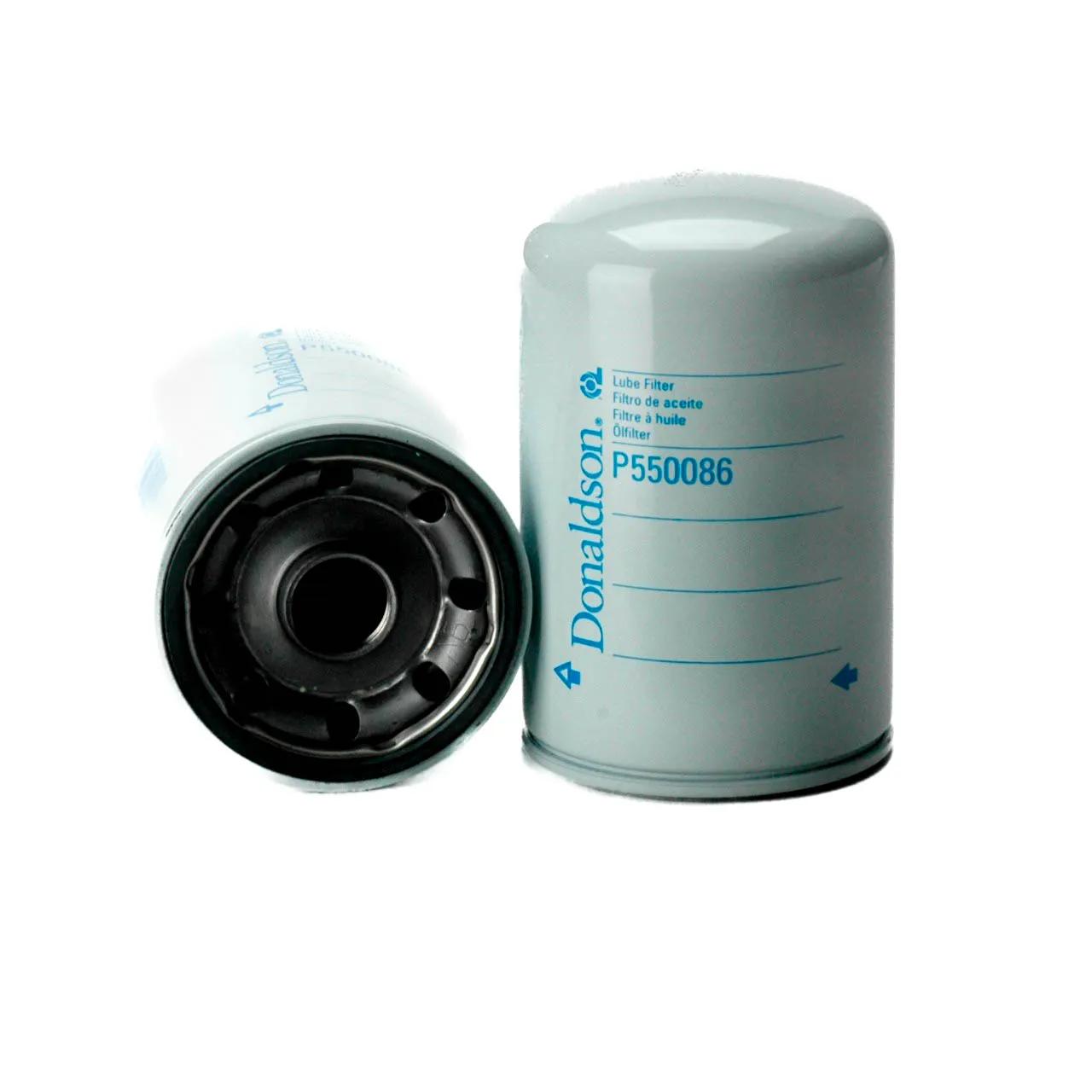

Engine Oil Filter, Spin-On L: 6,58 in, Thread : 1 1/8-16 UN , OD: 4,26 in
#DONP550086
Product Overview
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 2.1 bar |
| Bypass Valve Setting LR | 1.8 bar |
| Diameter Range | 4 to 4.99 in |
| Efficiency 50% | 20 Micron |
| Efficiency Test Std | ISO 4572 |
| Gasket ID | 3.54 in (90 mm) |
| Gasket OD | 3.9 in (99.1 mm) |
| Length | 6.58 in (167.2 mm) |
| Outer Diameter | 4.26 in (108 mm) |
| Length Range | 6 to 6.99 in |
| Style | Spin-On |
| Thread Size | 1 1/8-16 UN |
| Type | Full-Flow |
| Vehicle Make | Komatsu |
Interchanges & Equivalent parts:
| B7223 |
| BT402 |
| B7483 |
| JX1011 |
| 85444 |
| LFP5120 |
| J8610120 |
| LF3362 |

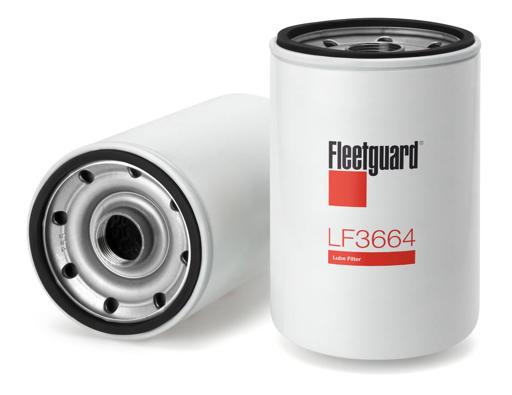

| LF3664 |
| LFR83362 |
| LFR83664 |
| PH4804 |
| LF406 |
| LF559 |
| H29W01 |
| SO6152 |
| SO3362 |
| L227 |
| LFF3362 |
| LFP5120B |
| W11507 |
| 1444 |
| L54514 |
| PER4514 |
| C56021 |
| SP5004 |
| SFO5120 |
| SFO5121 |
| 51444 |
| PF2157 |
| KO1568 |
| 92444 |
| 29005120 |
| 2900512000 |
| 6136515120 |
| 30Z5180495 |
| E6620 |
| 3I1482 |
| 5W3407N |
| JX1011B |
| JX1012 |
| JX1013A |
| FF1106M |
| LSF5016 |
| FT5004 |
| 9009S |
| Z210 |
| 1132401600 |
| KBP0722 |
| VA3424011101 |
| 613615120 |
| 6136515121 |
| 613651520 |
| SP101847 |
| SP110636 |
| 25005 |
| KFO0332449 |
| 3254001600 |
| 3254021600 |
| 32G4001100 |
| 2405701 |
| 1220744 |
| BC1179 |
| 60176476 |
| 60176476P |
| T50512 |
| 688216 |
| LF550086 |
| 811816 |
| WGL3362 |
| WGL3664 |
| 6401012210 |
| M30001012240A |
| YJX6135 |
| C5614 |
| DN P550086 |
| DN P550086 |
| VA32G4001100J1M |
| 025005 |
| 00811816 |
| 4110001060122 |
| 6401012210A |
| 6136-51-5121 |
| 122-0744 |
| 2191-P550086 |
| 32540-01600 |
| 3I-1482 |
| DONP550086 |
| FIL1444 |
| FT50 |
| CFL817 |
| CFL-817 |
