Engine Oil Filter, Spin-On L: 6,86 in, Thread : 1-12 UN , OD: 3,66 in

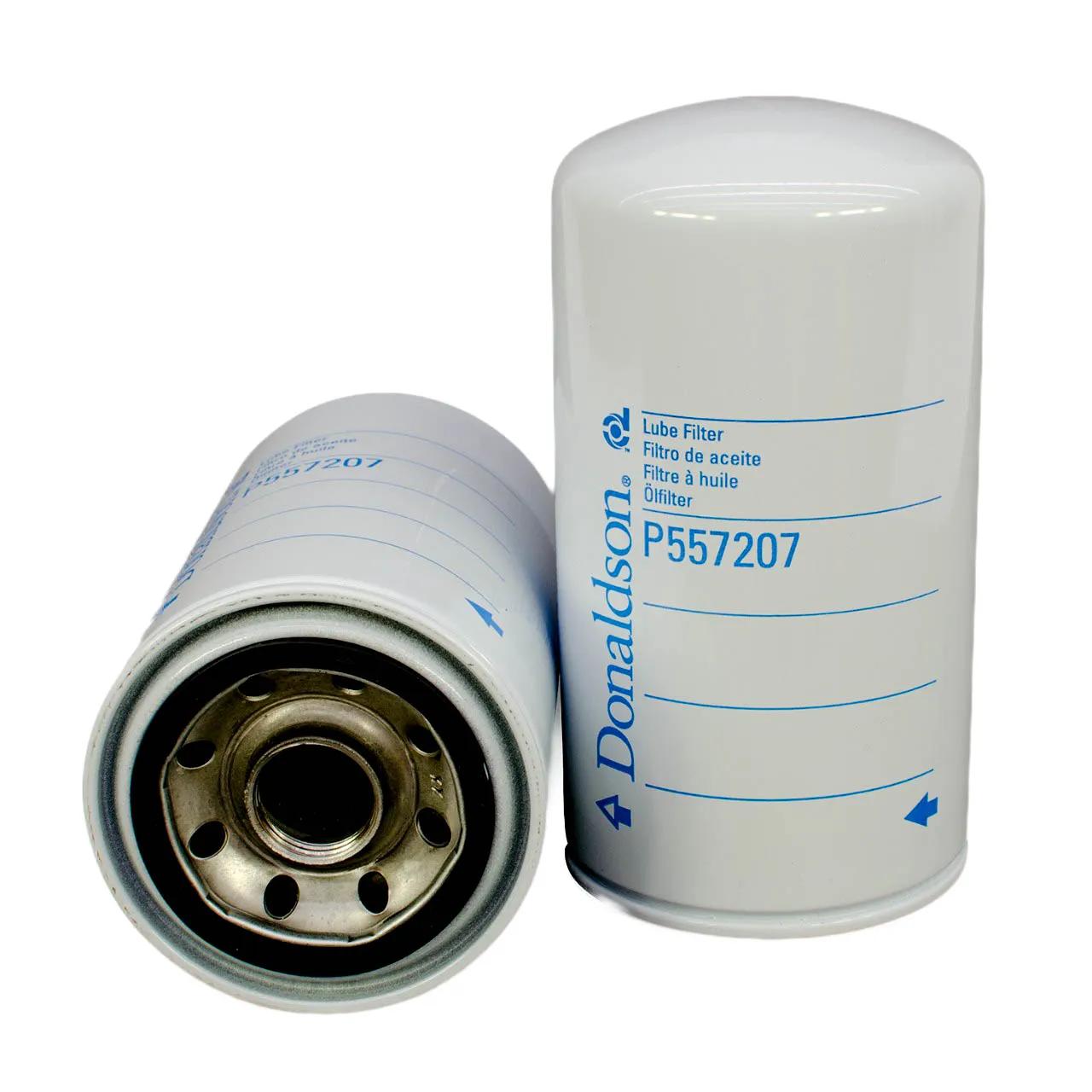

#DONP557207
Product Overview
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Bypass Valve | Oui |
| Bypass Valve Setting HR | 0,7 bar |
| Bypass Valve Setting LR | 0,5 bar |
| Diameter Range | 3 à 3.99 po |
| Efficiency 50% | 20 Micron |
| Efficiency Test Std | ISO 4548-12 |
| Gasket ID | 2,4 po (61 mm) |
| Gasket OD | 2,8 po (71,1 mm) |
| Length | 6,86 po (174,3 mm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 6 à 6.99 po |
| Style | Visé |
| Thread Size | 1-12 UN |
| Type | Full-Flow |
| Vehicle Make | Case/Case IH |
Interchanges & Equivalent parts:
| 3306 |
| L3306 |
| 9318 |

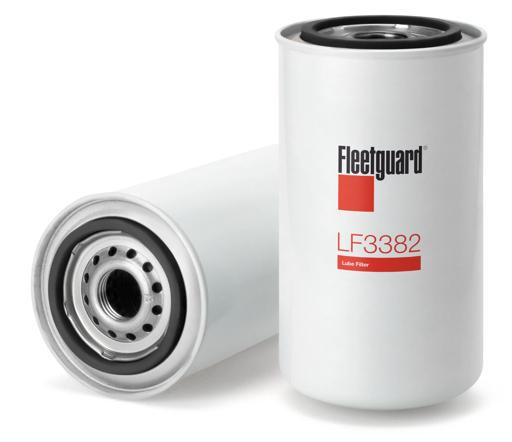

| LF3382 |
| LF3382J |
| LF690 |
| PH3306 |
| PH3403 |
| GP66 |
| FP356 |
| LF356 |
| P356 |
| HDA15001 |
| SO1690 |
| LFP880 |
| MH351 |
| FL305 |
| FL305FP |
| 1797 |
| 1797MP |
| 6695318 |
| L40110 |
| PER110 |
| PER11001 |
| C5401 |
| X41 |
| SP870 |
| 4272037C2 |
| 427203C2 |
| NO225 |
| 92797 |
| 85128 |
| 85797 |
| 85797MP |
| H19W07 |
| KL176A |
| L176A |
| L988 |
| SP4375 |
| 51797 |
| 51797MP |
| 9Y4483 |
| PH690 |
| 7255720700 |
| LSF5011 |
| 9329 |
| 3002261 |
| FD8240 |
| 398080R2 |
| 427207C1 |
| 677709C91 |
| 69008936 |
| D1NP557207 |
| 101201029DB |
| 1012010A36D |
| 101201081DF |
| D0NNF933A |
| 9576P557207 |
| DONNF933A |
| DNP557207 |
| GL579X |
| Z140 |
| Z53 |
| 398808R2 |
| 52763110 |
| L302 |
| J131109 |
| T3139 |
| 1509C8602 |
| 1520976200 |
| 15209C8600 |
| 15209G9600 |
| 15209J2000 |
| 15209J6500 |
| 15209Z6502 |
| 4NJ101 |
| 103853 |
| BC1118 |
| PE913 |
| QS3306 |
| QS3306A |
| 46701 |
| HDO6 |
| 124565 |
| 2240115 |
| 688976 |
| OF1797 |
| LF557207 |
| LO216K |
| 811460 |
| 172010001 |
| WGL3382 |
| WGL690 |
| ABP N10G LF690 |
| 00811460 |
| 0451203227 |
| 12-4565 |
| 3000303 |
| 398080R1 |
| 427207C2 |
| DN P557207 |
| DN P557207 |
| 1133270R1 |
| 1133276R2 |
| 11456 |
| PF1801 |
| B167 |
| 11041 |
| QS42 |
| 451203227 |
| 896 |
