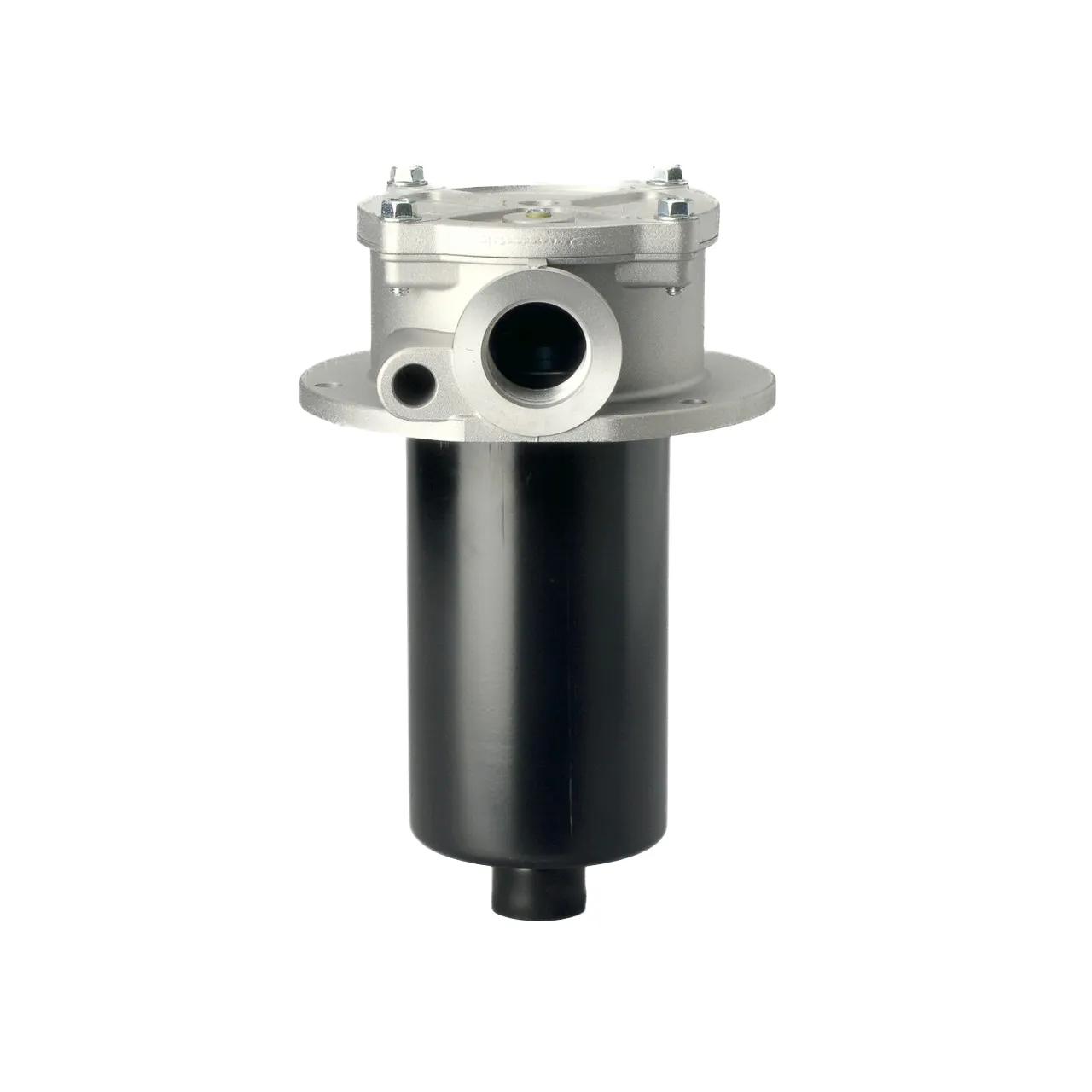

Hydraulic Filters Assy, OD: 1,6 in, ID: 1 5/8-12 UN
#DONK051204
Caractéristiques et avantages
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Spécifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 1 to 1.99 in |
| Efficiency (Percent) | 96 Percent |
| Inlet Size | 1 5/8-12 UN |
| Outlet Diameter | 1.6 in (40.64 mm) |
| Overall Length | 10.79 in (274.1 mm) |
| Primary Application | DONALDSON POWERPLEAT 13 |
| Series | FIK |
| Service Clearance (in.) | 12,64 in (321,1 mm) |
Interchanges et pièces équivalentes:
| K051204 |
| DN K051204 |
| DN K051204 |
| 11042776 |
| 2191-K051204 |
| DONK051204 |
