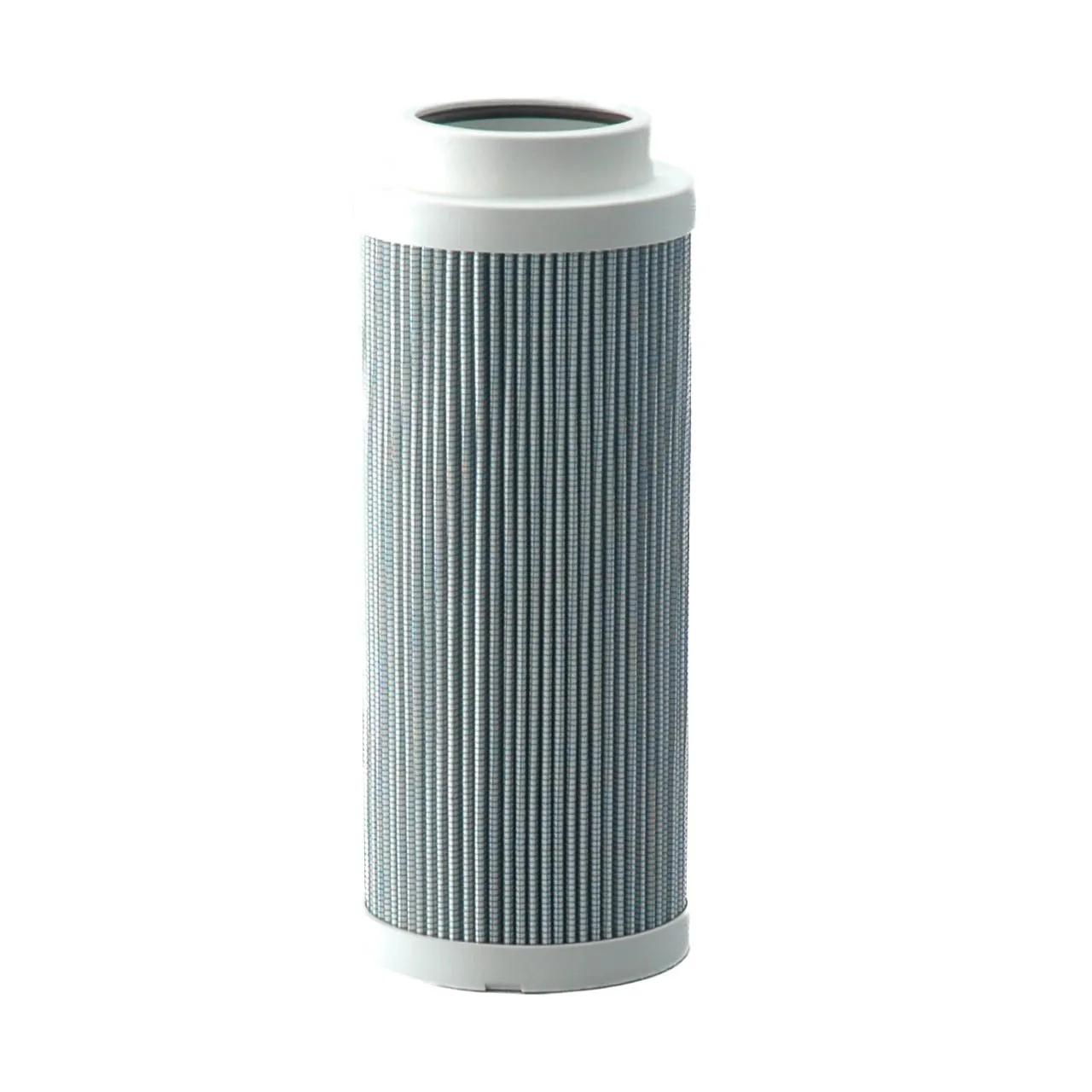

Hydraulic, Cartridge L: 12,68 in, OD: 3,2 in, ID: 2,01 in
#DONP566377
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Beta 1000 (Micron) | 4 Micron |
| Inner Diameter | 2.01 in (51.1 mm) |
| Length | 12-11/16 in (32.23 cm) |
| Outer Diameter | 3-13/64 in (8.13 cm) |
| Overall Length | 12.69 in (322.4 mm) |
| Length Range | 12 to 12.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP964L131MB |
| HP964L131MV |
| P566377 |
| DT9604132UM |
| HP9613MAAVL |
| HC9604FDZ13H |
| HC9604FDZ13Z |
| HC9604FMZ13H |
| SBF960413Z1V |
| SBF9604M13Z1V |
| 15931301V |
| BE964L131MV |
| HC9604FKZ13H |
| HC9604FKZ13Z |
| HC9604FCZ13H |
| HC9604FCZ13Z |
| HC9604FMZ13Z |
| HC9604FRZ13H |
| HC9604FHZ13H |
| HC9604FHZ13Z |
| KMP9604AKC13B |
| KMP9604AKC13V |
