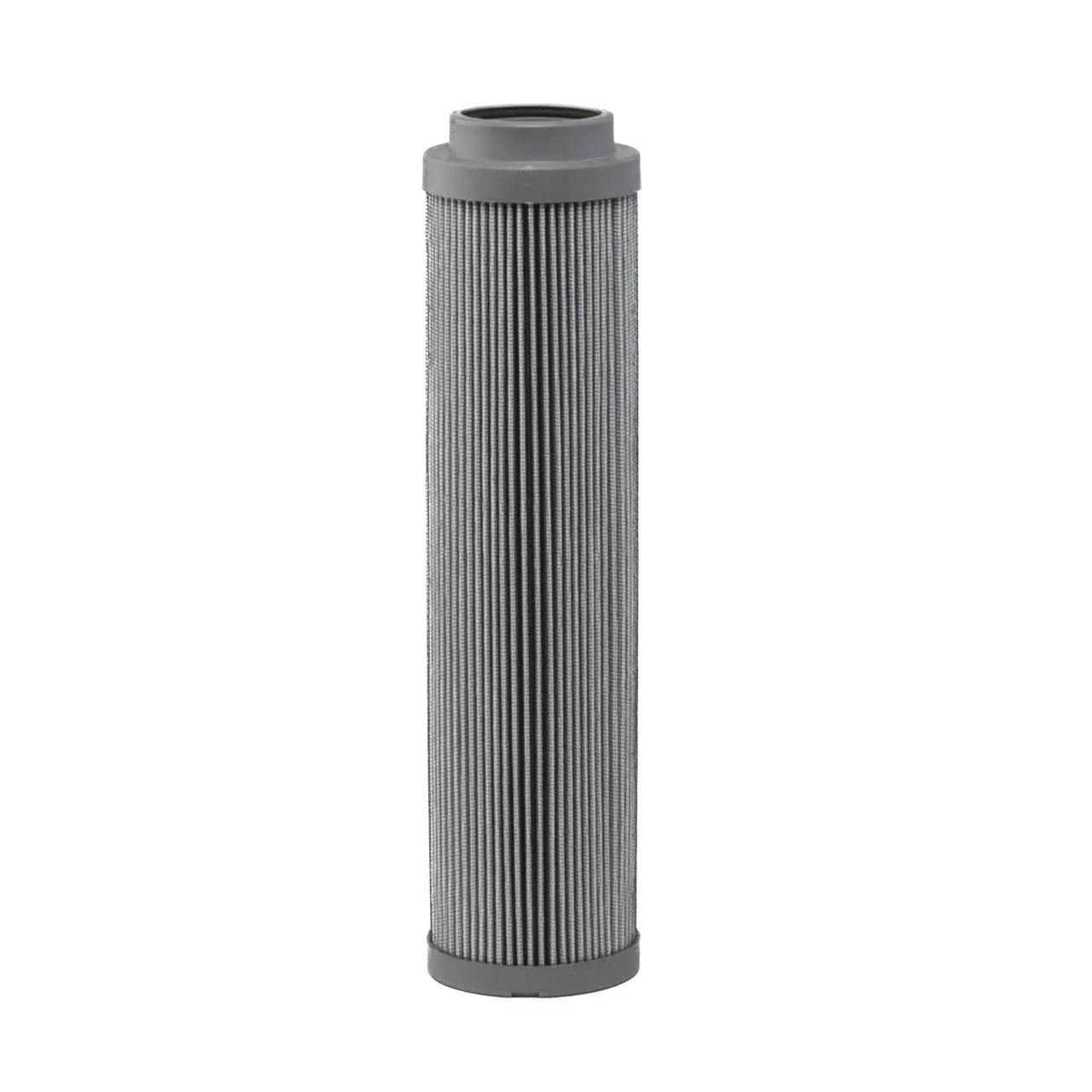

Hydraulic, Cartridge L: 12,68 in, OD: 3,2 in, ID: 2,01 in
#DONP566378
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 à 3.99 po |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 2,01 po (51,1 mm) |
| Length | 12-11/16 po (32,23 cm) |
| Outer Diameter | 3-13/64 po (8,13 cm) |
| Overall Length | 12,69 po (322,3 mm) |
| Length Range | 12 à 12.99 po |
| Style | Cartouche |
Interchanges & Equivalent parts:
| HP964L133MB |
| HP964L133MV |
| P566378 |
| C25A03GV |
| P564552 |
| DT9604135UM |
| HP9613MABL |
| HP9613MAVL |
| C342G03 |
| C342G03V |
| FC342G03 |
| FC342G03V |
| SH87653 |
| HC9604FDP13H |
| HC9604FDP13Z |
| 937197Q |
| 938795Q |
| SBF960413Z3V |
| SBF960413Z3B |
| SBF9604M13Z3V |
| SBF9604M13Z3B |
| HY20862 |
| 9605133UM |
| 9605133UMV |
| 15931303 |
| 15931303V |
| E6021B4E03 |
| E6021V4E03 |
| BE964L133MB |
| BE964L133MV |
| HC9604FKP13H |
| HC9604FKP13Z |
| HC9604FCP13H |
| HC9604FCP13Z |
| HC9604FMP13H |
| HC9604FMP13Z |
| PC96050GFB |
| PC96050GFV |
| C3960ZGCB13 |
| C3960ZGCV13 |
| HC9604FRP13Z |
| HC9604FHP13H |
| HC9604FHP13Z |
| KMP9604AKF13B |
| KMP9604AKF13V |
| SBF-960413Z3B |
| SBF-960413Z3V |
