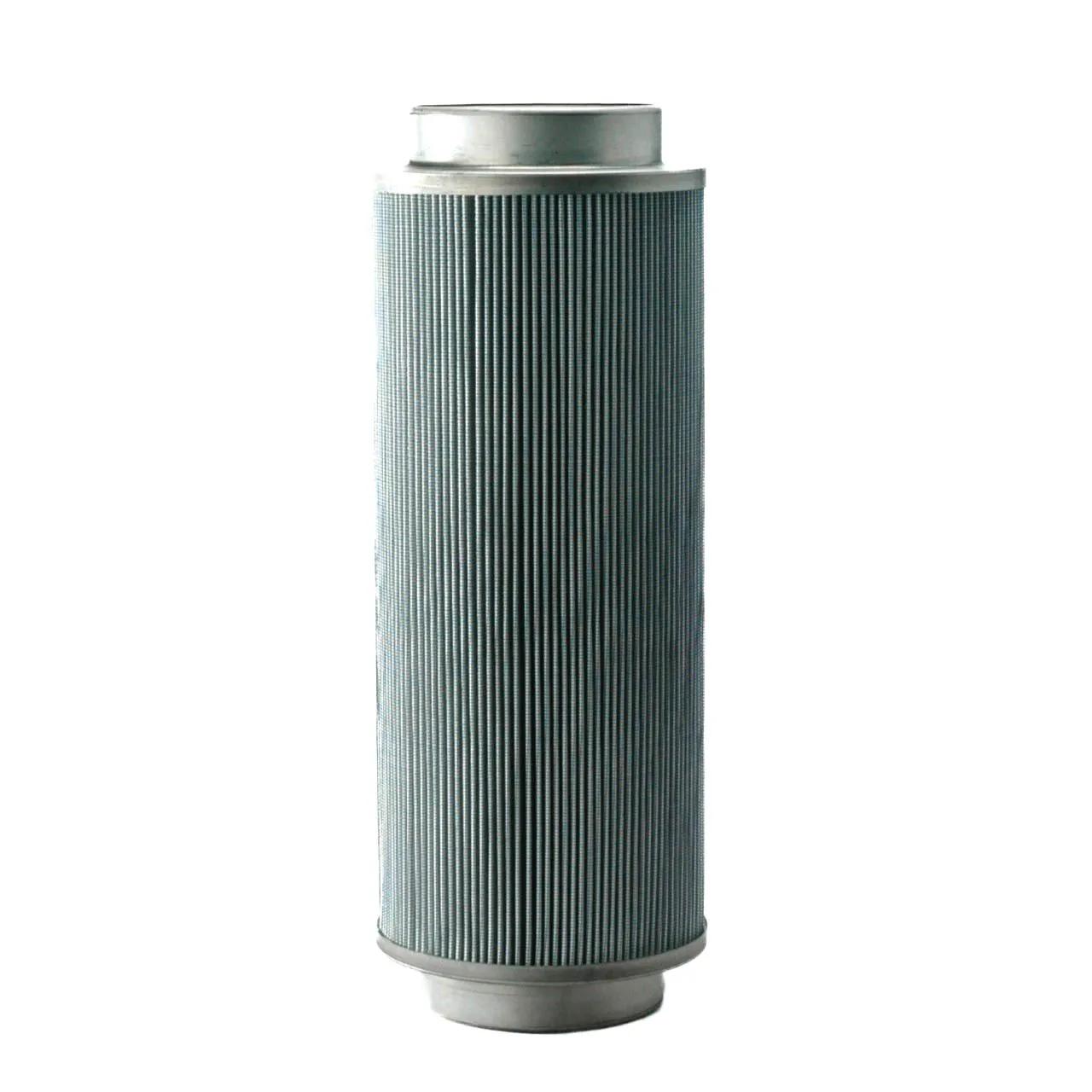

Hydraulic, Cartridge L: 16,1 in, OD: 5,94 in, ID: 4,12 in
#DONP566250
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 4.12 in (104.7 mm) |
| Length | 16-3/32 in (40.87 cm) |
| Outer Diameter | 5-15/16 in (15.09 cm) |
| Overall Length | 16.09 in (408.7 mm) |
| Series | W041 |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP8310L163MB |
| HP8310L163MV |
| P566250 |
| 7086 |
| 57086 |
| P170157 |
| DT8310165UM |
| R831H1603A |
| R831H1603H |
| F831016K3B |
| F831016K3V |
| 11416D03BN |
| H831016003BN |
| 1269878 |
| 2060578 |
| 11416D03BNV |
| A912068 |
| A912070 |
| KM8310163 |
| KM8310163V |
| KMP8310A03B16 |
| KMP8310A03V16 |
| LH95550 |
| LH95550V |
| MP3402 |
| MP5222 |
| HC8310FDP16HX321 |
| HC8310FDP16ZX321 |
| HC8310FMP16HX321 |
| HC8310FMP16ZX321 |
| HC8310FKP16HX321 |
| HC8310FKP16ZX321 |
| 933044Q |
| 16QPMLZ3V |
| 16QZ3V |
| 16QPMLS1 |
| 16QPMLS1V |
| 16QPMLZ3 |
| 16QPMLZ3B |
| 8310163UM |
| 8310163UMV |
| 15031603 |
| 15031603V |
| V0411B5L03 |
| V0411V5L03 |
| E0411B5L03 |
| E0411V5L03 |
| DE0411B5L03 |
| DE0411V5L03 |
| BE8310L163MB |
| BE8310L163MV |
| HC8310FDP16H |
| HC8310FDP16Z |
| HC8310FKP16H |
| HC8310FKP16Z |
| HC8310FUP16H |
| HC8310FUP16Z |
| HC8310FCP16H |
| HC8310FCP16Z |
| HC8310FMP16H |
| HC8310FMP16Z |
| DP83150GFB |
| DP83150GFV |
| 2831L03B16 |
| 2831L03V16 |
| 3831DGCB16 |
| 3831DGCV16 |
| SF8310163UM |
| SF8310163UMV |
| HC8310FRP16HX321 |
| HC8310FRP16H |
| HC8310FRP16Z |
| HC8310FHP16H |
| HC8310FCP16HX321 |
| HC8310FCP16ZX321 |
| HC8310FHP16HX321 |
| HC8310FHP16Z |
| HC8310FHP16ZX321 |
| 02060587 |
| 1503160 |
| 2060587 |
