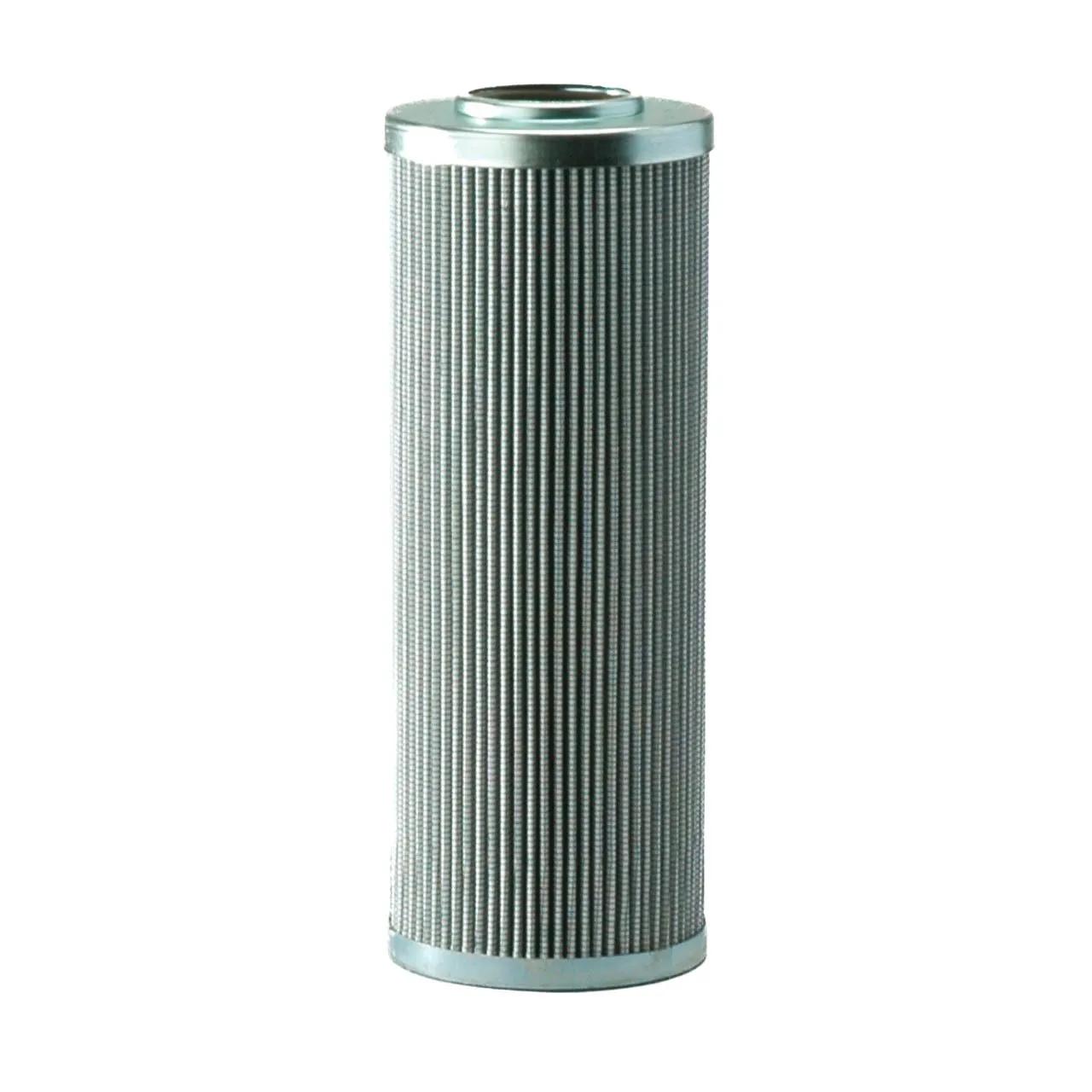

Hydraulic, Cartridge L: 16,81 in, OD: 3,1 in, ID: 1,49 in
#DONP566471
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.49 in (37.9 mm) |
| Length | 16-13/16 in (42.7 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 16.84 in (427.8 mm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566471 |
| DT8200168UM |
| 2062041 |
| 11616D06BN |
| H820016005BN |
| LH95530 |
| LH95530V |
| HC8200FDNH |
| HC8200FDNZ |
| HC8200FMN16H |
| HC8200FMN16Z |
| HC8200FMNH |
| HC8200FMNZ |
| HC8200FKNH |
| HC8200FKNZ |
| 8200166UM |
| 8200166UMV |
| E2682B5C05 |
| HC8200FDN16H |
| HC8200FDN16Z |
| HC8200FKN16H |
| HC8200FKN16Z |
| HC8200FUNH |
| HC8200FUNZ |
| HC8200FCN16H |
| HC8200FCN16Z |
| HC8200FRN16Z |
| HC8200FRNH |
| HC8200FCNH |
| HC8200FCNZ |
| HC8200FHN16H |
| HC8200FHN16Z |
| HC8200FHNH |
| HC8200FHNZ |
| 02062041 |
| 1.16.16D06BN |
