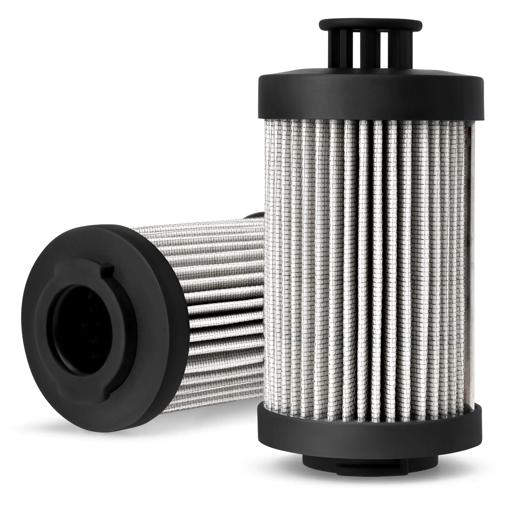

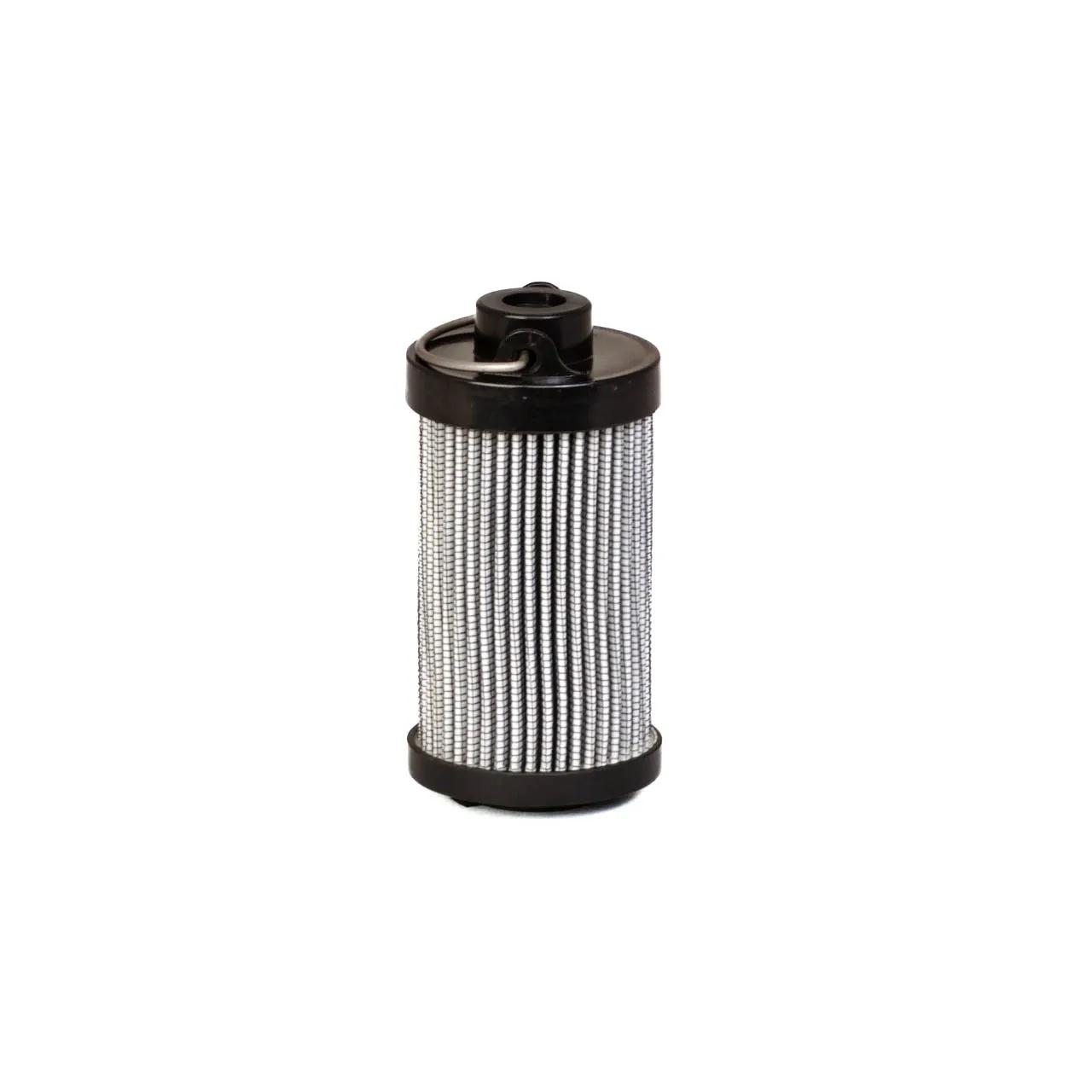

Hydraulic, Cartridge L: 3,48 in, OD: 1,88 in, ID: 0,87 in
#DONP566964
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 43.52 psi (3 bar) |
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 25 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 0.87 in (22.1 mm) |
| Length | 3-31/64 in (8.84 cm) |
| Outer Diameter | 1-7/8 in (4.78 cm) |
| Overall Length | 3.89 in (98.9 mm) |
| Length Range | 3 to 3.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566964 |
| DT0060R25UM |
| RHR60G20B |
| RHR60G20V |
| HF6884 |
| SH74061 |
| 0060R020PHC |
| 303524 |
| 2071582 |
| 0060R020BN3HC |
| 0060R020BN4HC |
| 0060R020BNHC |
| 1262938 |
| 2067835 |
| 2077328 |
| 0060R020BN3HCV |
| 0060R020BN4HCV |
| 0060R020BNHCV |
| 0060R020BNV |
| 0060R020ONV |
| 0060R020PHCV |
| HC2196FDT4H |
| HC2196FDT4H50 |
| HC2196FDT4Z |
| HC2196FDT4Z50 |
| HC2208FDT4H |
| HC2196FMT4H |
| HC2196FMT4Z |
| HC2196FMT4Z50 |
| HC2208FMT4H |
| HC2208FKT4H |
| PR3242 |
| SBF0060RZ25B |
| SBF0060RZ25V |
| RE014E20B |
| RE014G20B |
| RE014G20V |
| RE014N20V |
| 15250425V |
| ER602V1C20 |
| VR602V1C20 |
| R49D20GV |
| R49D20NV |
| R49D20EV |
| DER602V1C20 |
| BE06RNL425MV |
| HC2196FKT4H |
| HP06RNL425MB |
| HP06RNL425MV |
| HC2196FKT4Z |
| HC2196FCT4H |
| HC2196FCT4Z |
| HC2208FCT4H |
| HC2196FCT4H50 |
| HC2196FCT4Z50 |
| HC2196FKT4Z50 |
| HC2196FRT4Z |
| HC2208FRT4H |
| HC2196FHT4H |
| HC2196FHT4H50 |
| HC2196FHT4Z |
| HC2196FHT4Z50 |
| HC2208FHT4H |
| 01262934 |
| 0060 R020 BN3HC |
| DONP173159 |
| HC2196FC |
| 1262934 |
