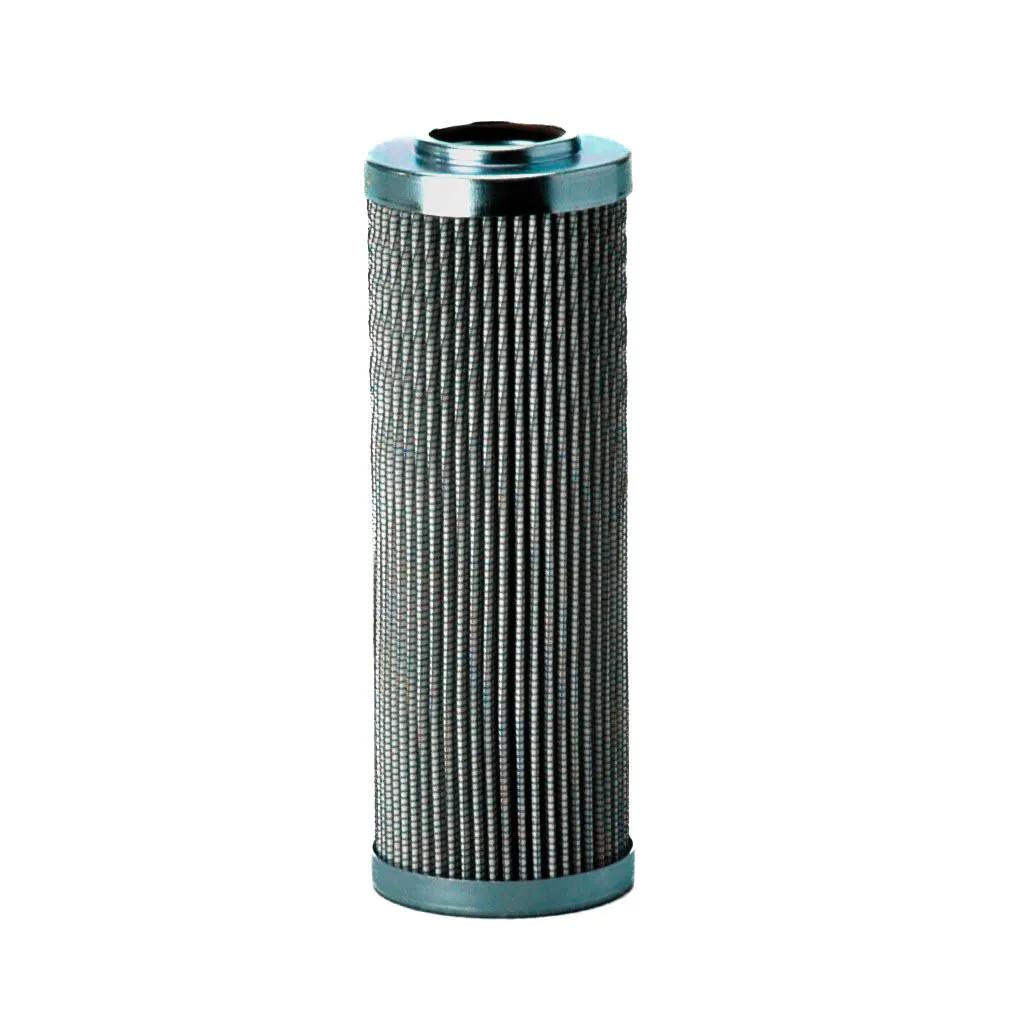

Hydraulic, Cartridge L: 6,1 in, OD: 2,13 in, ID: 1,08 in
#DONP574182
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Gasket ID | 1.05 in (26.7 mm) |
| Gasket OD | 1.26 in (32.1 mm) |
| Inner Diameter | 1.08 in (27.5 mm) |
| Length | 6-3/32 in (15.47 cm) |
| Outer Diameter | 2-1/8 in (5.41 cm) |
| Overall Length | 6.12 in (155.5 mm) |
| Length Range | 6 to 6.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| W01AG518 |
| P574182 |
| WG518 |
| 6R3 |
| 6R3V |
| 6RZ5V |
| 6RZ5 |
| 7241856 |
| 7241858 |
| PT9378MPG |
| HP152NL66MV |
| HP152NL66MB |
