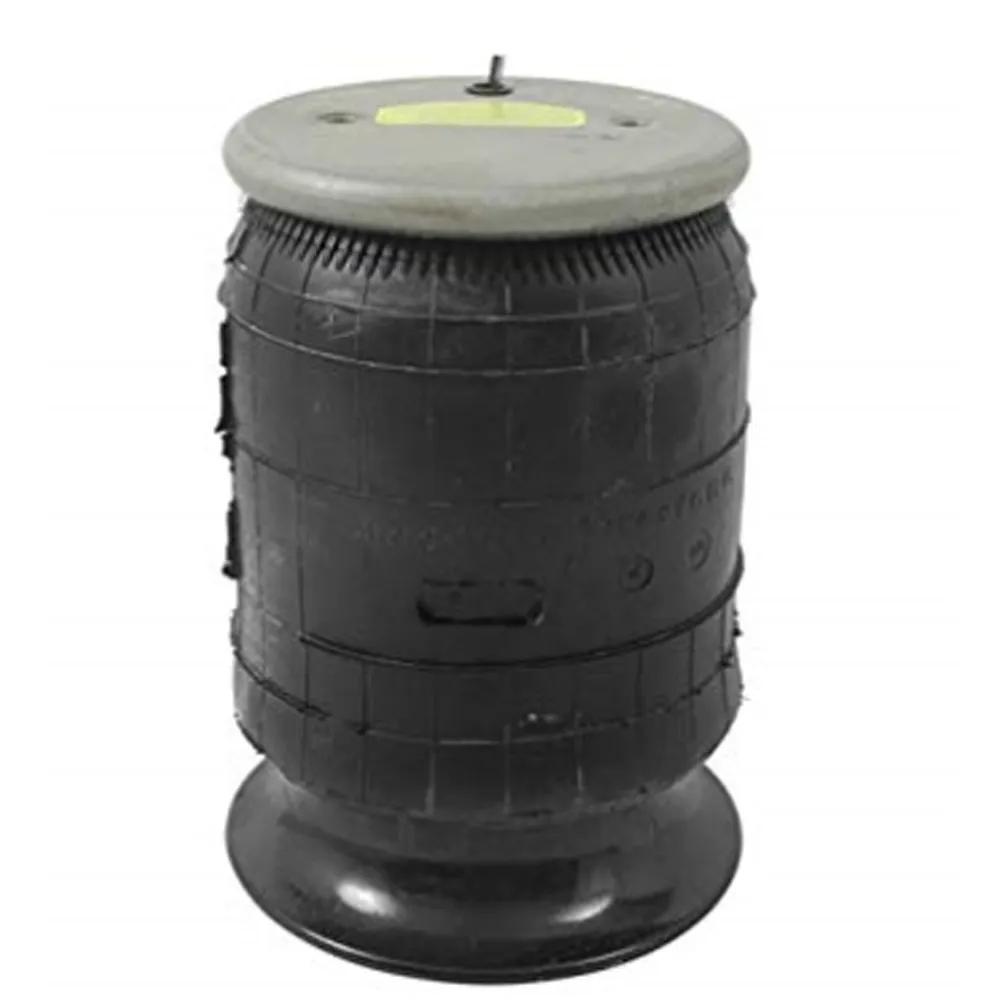

Firestone Air Spring 1T Reversible Sleeve, Compressed Length 6 in, Extended Length 23-13/64 in, Model 1T15VMR-8

#FIRW01-358-9865

Product Overview


Although air springs are produced in single, double, and triple convoluted and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 5.9 in Compressed Length, 23.2 in Extended Length, 10.12 in Width

See More
See Less

Specifications


Air Inlet 1/4 in NPT
Air Spring Type 1T Reversible Sleeve
Application Hendrickson 67043-2
Bead Plate (Top) & Deflated Bellows O.D. 9 in @ 10.12 in
Bottom Plate Diameter 9 in
Bottom Stud Configuration 1/2 in-13 UNC
Bottom Plate Hole/Stud Qty 2
Compressed Length 6 in
Diameter 10-1/8 in
Extended Length 23-13/64 in
Firestone Bellows Number 1T15VMR-8
Piston (Bottom) Mounting Bolt Dimensions Center to Center 6 in
Piston Height 5-19/64 in
Top Bead Plate Hardware Key Bold or Stud 1/2-13 in
Top Plate Diameter 9 in
Weight 14.55 lb
Width 10.12 in
Product Category Air Spring

Interchanges & Equivalent parts:


352-9865
67043-2
3040-W013589865
AS98650
FIPW013589865
67043002
W013589865
CON75266
W01-358-9865
