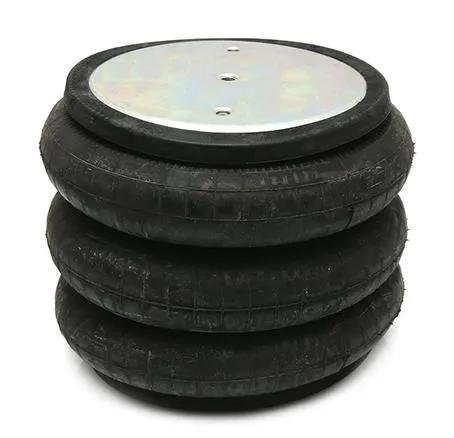

Firestone Air Spring - Triple Convoluted, 4 in Compressed Length, 38 Bellows

#FIRW01-358-8006

Product Overview


Although air springs are produced in single, double, triple convoluted, and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, Triple Convoluted Air Spring, 4 in Compressed Length, 11.7 in Width

See More
See Less

Specifications


Air Spring Type Triple Convoluted
Application Superior
Bellows 38
Bottom Mount Flat
Bottom Plate Diameter 9 in
Bottom Plate Hole/Stud Qty 2
Compressed Length 4 in
Diameter 11-45/64 in
Temperature 57°C @ -54°C (134.6°F @ -65.2°F)
Top Mount Flat
Top Plate Diameter 9 in
Top Plate Hole/Stud Qty 3
Weight 14.5 lb (6.58 kg)
Width 11.7 in
Capacity 1282 lb-ft at 20 psig, 3846 lb-ft at 60 psig, 5769 lb-ft at 90 psig
Product Category Air Spring

Interchanges & Equivalent parts:


354-8006
3B12-304
3B12304
8006
FIR8006
AS8006
FI W01 358 8006
FSIW013588006
G2298006500
GTK-358-8006
W013588006
AS80060
FT 330-29 430
TWDW013588006
FT330-29430
W01-358-8006
