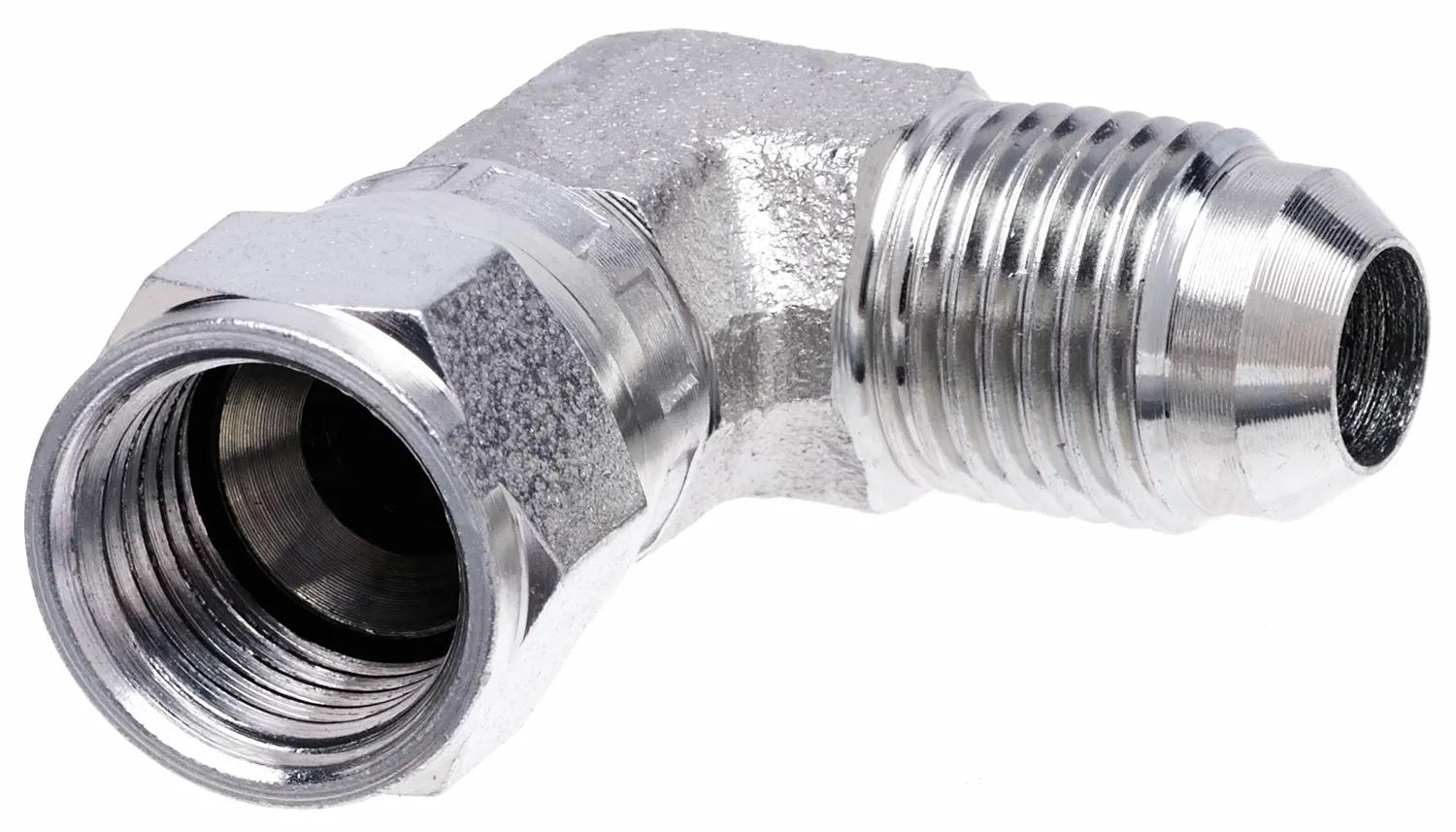

Fitting Male Flare to Female Flare Swivel, 20MJ-20FJX90
#GATG60422-2020
Product Overview
Gates SAE to SAE Adapter Line Offers Full Coverage w/ Sizes From 1/8 in. to 2 in. in the Most Popular Thread Configurations.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings.
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- A Problem Solver When Required Coupling Thread Styles Might Not Be Available. Caps & Plugs Included.
Specifications
| Adapter Type | SAE to SAE |
| Angle | 90 deg |
| Industrial Description | 20MJ-20FJX90 |
| Note | For use up to SAE 100R2 maximum working pressure |
| OEM Part # | 20MJ-20FJX90/G60422-2020 |
| Product Number | 725924075 |
| Thread | 1-5/8 in-12 |
| Type | Male JIC 37 Flare to Female JIC 37 Flare Swivel - 90 deg |
Interchanges & Equivalent parts:
| 39032020 |
| 70308-2020 |
| 703082020 |
| GYH70308-2020 |
| G604222020 |
| S354920 |
| G60422-2020 |
| 725924075 |
