Spicer 1810 Series Drive Shaft Slip Yoke, Steel, 3 in Spline Diameter, 1.938 in Bearing Cap Diameter
#SPI6.5-3-1351KX
Product Overview

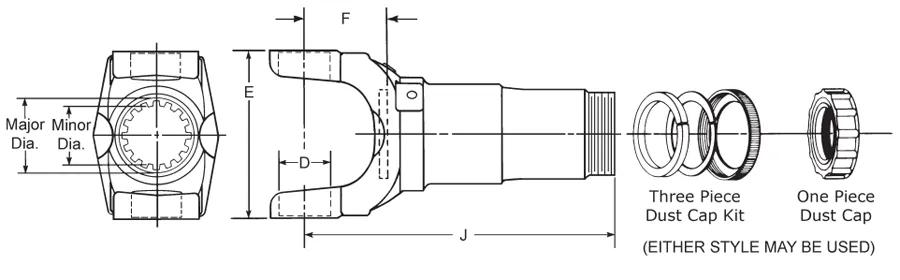

Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft Slip Yoke, Steel, 1.938 in Bearing Cap Dia, 10.250 in, 2.375 in Center Line to Face of Plug, 30 deg Joint Angle, 16 Splines, 7.547 in Outside Yoke, 1810, 3 in Spline O.D., BP
Specifications
| Bearing Cap Diameter | 1-15/16 in |
| Number of Splines | 16 |
| Series | 1810 |
| VMRS Code | 24002038 |
| Center Line to Face of Plug | 2.375 in |
| C/L to End of Spline | 10.250 in |
| Joint Angle | 30 deg |
| Material | Steel |
| Outside Yoke Dimension | 7.547 in |
| Spline O.D. | 3 |
| Style | BP |
| Product Category | Drive Shaft Slip Yoke |
| Quantity | 1 |
| Weight | 23.5 lb |
Interchanges & Equivalent parts:
| 1114584 |
| 18N3 1351XMXL |
| 18N31351X |
| 2104-6531351KX |
| 6.5-3-1351KXR |
| 6.5-3-1351X |
| 6531351KX |
| 6531351KXS |
| D6531351KX |
| E6531351KX |
| SP 6.5 3 1351KX |
| SP 6531351KX |
| TWD6531351KX |
| 6 5 3 1351X |
| 6.5 3 1351KX |
| 230118 |
