Spicer SPL250-C/B Splined Hole Drive Shaft End Yoke, Steel, HR Style, 3.344 in Hub Diameter, 6.417 in Outside Dimension
#SPI250-4-21-1
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Drive Shaft End Yoke, Splined Hole, Steel, 5.75 in Center Line to End Hub, 3.344 in Hub Dia, 25 deg Joint Angle, 2.75 in Length Thru Hole, 6.417 in Outside Yoke, SPL250, 46 Spline Count, 2.362 in Yoke Bearing Dimension, HR Yoke, 2.39 in Length
Specifications
| Bearing Cap Diameter | 2-23/64 in |
| Hub Diameter | 3.344 in |
| Joint Angle | 25 deg |
| Length | 2.39 in |
| Material | Steel |
| Quantity | 1 |
| Series | SPL250 |
| Spline Count | 46 |
| Spline Diameter | 2-25/64 in |
| Type | Splined Hole Yoke |
| VMRS Code | 24001003 |
| Weight | 16.05 lb |

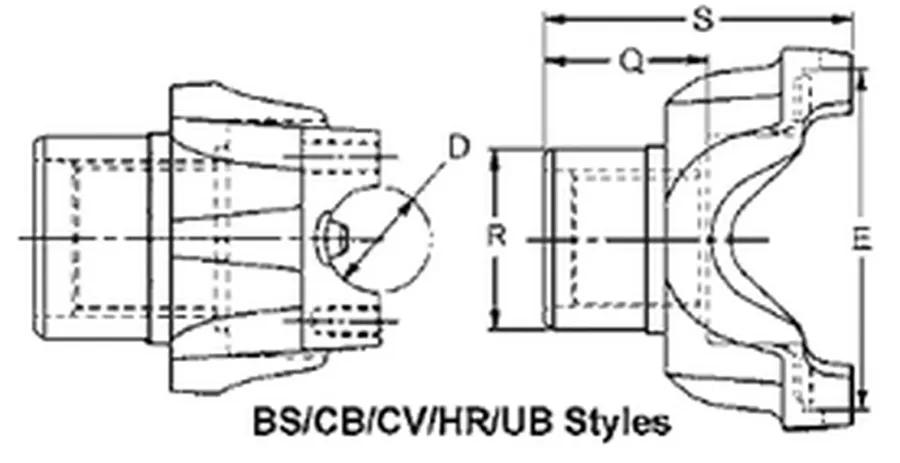

| Yoke Style | HR |
| Center Line to End Hub | 5.75 in |
| Length Thru Hole | 2.75 in |
| Outside Yoke Dimension | 6.417 in |
| Yoke Bearing Dimension | 2.362 in |
| Product Category | Drive Shaft End Yoke |
Interchanges & Equivalent parts:
| N250-4-21-1 |
| 2104-2504211 |
| 250 4 21 1 |
| 250-4-21-1R |
| 2504211 |
| 2504211-SP |
| 250N-4-21-1 |
| 250N4211 |
| 3947962 |
| D2504211 |
| E2504211 |
| S-15188 |
| SP 250 4 21 1 |
| SP 250-4-211 |
| SP 2504211 |
| TWD2504211 |
| 250-4-21-1 |
