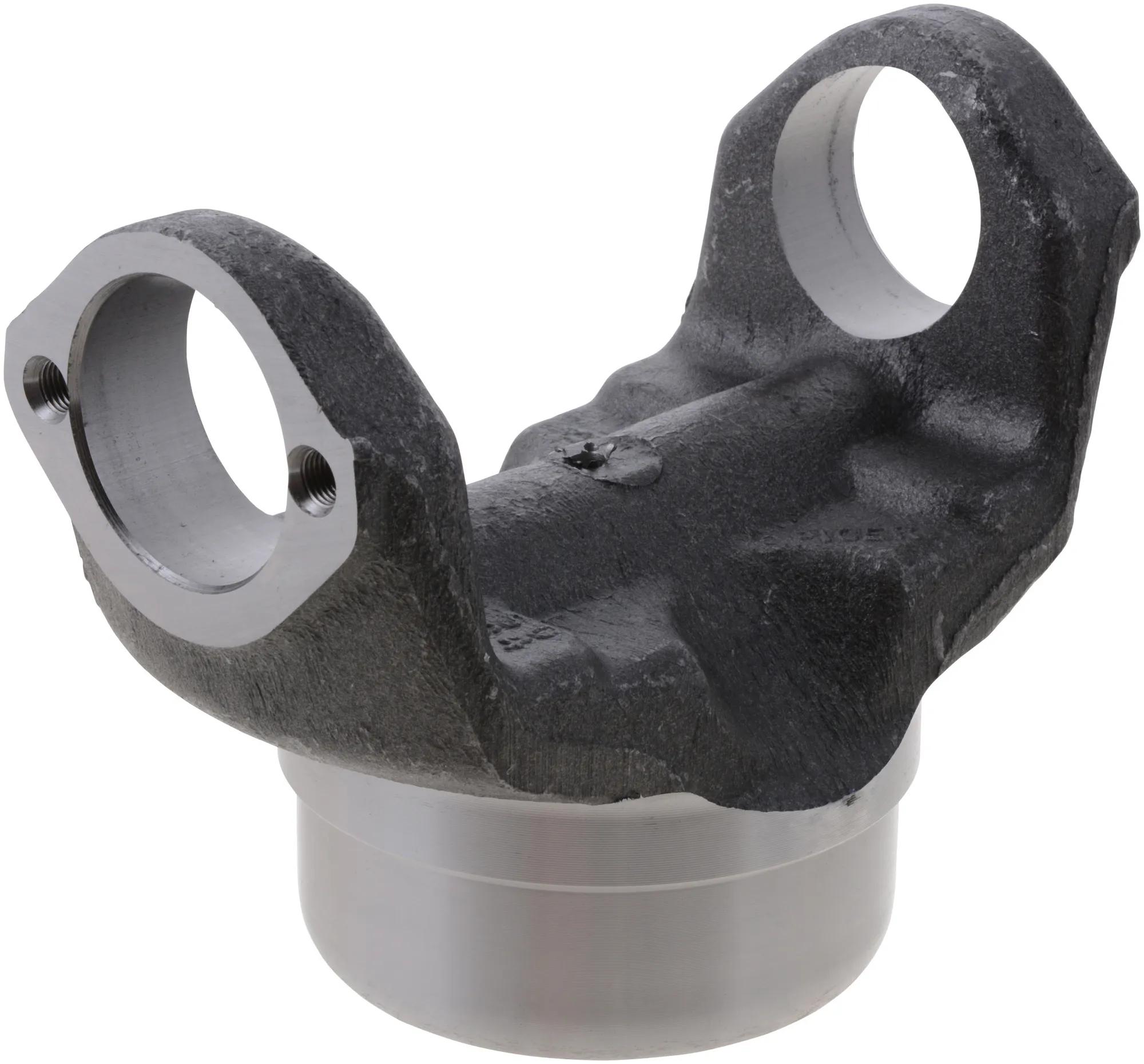

Spicer 1810 Tube Weld Yoke, BP Design, Steel, 1.938 in Bearing Cap Diameter
#SPI6.5-28-117
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft Tube Weld Yoke, Steel, 1.938 in Bearing Cap Dia, 4.243 in Butt Dia, 3.375 in Center Line to Weld, BP, 4.5 in Fits Tube Dia, 0.134-WELDED Fits Tube Wall, 30 deg Joint Angle, 7.547 in Outside Yoke, 1810
Specifications
| Bearing Cap Diameter | 1.938 in |
| Centerline to Point of Weld | 3-3/8 in (8.59 cm) |
| Design | BP |
| Fits Tube Wall (S=Seam W=Weld) | .134-WELDED |
| Joint Angle | 30 deg |
| Material | Steel |
| Series | 1810 |
| VMRS Code | 024002057 |
| Center Line to Weld | 3.375 in |
| Fits Tube Wall | 0.134-WELDED |
| Fits Tube Diameter | 4.5 in |
| Outside Yoke Dimension | 7.547 |
| Product Category | Drive Shaft Tube Weld Yoke |
| Quantity | 1 |
| Weight | 13.14 lb |
Interchanges & Equivalent parts:
| 18N28117 |
| U966528117 |
| 2104-6528117 |
| 38MU3272 |
| 38MU3272P1 |
| 6528117-SP |
| 6528117S |
| D6528117 |
| E6528117 |
| SP 6.5 28 117 |
| SP 6528117 |
| TWD6528117 |
| 1662162C1 |
| 18N-28-117 |
| 18N28-117 |
| 6.5 28 117 |
| 6.5-28-117R |
| S-7455 |
