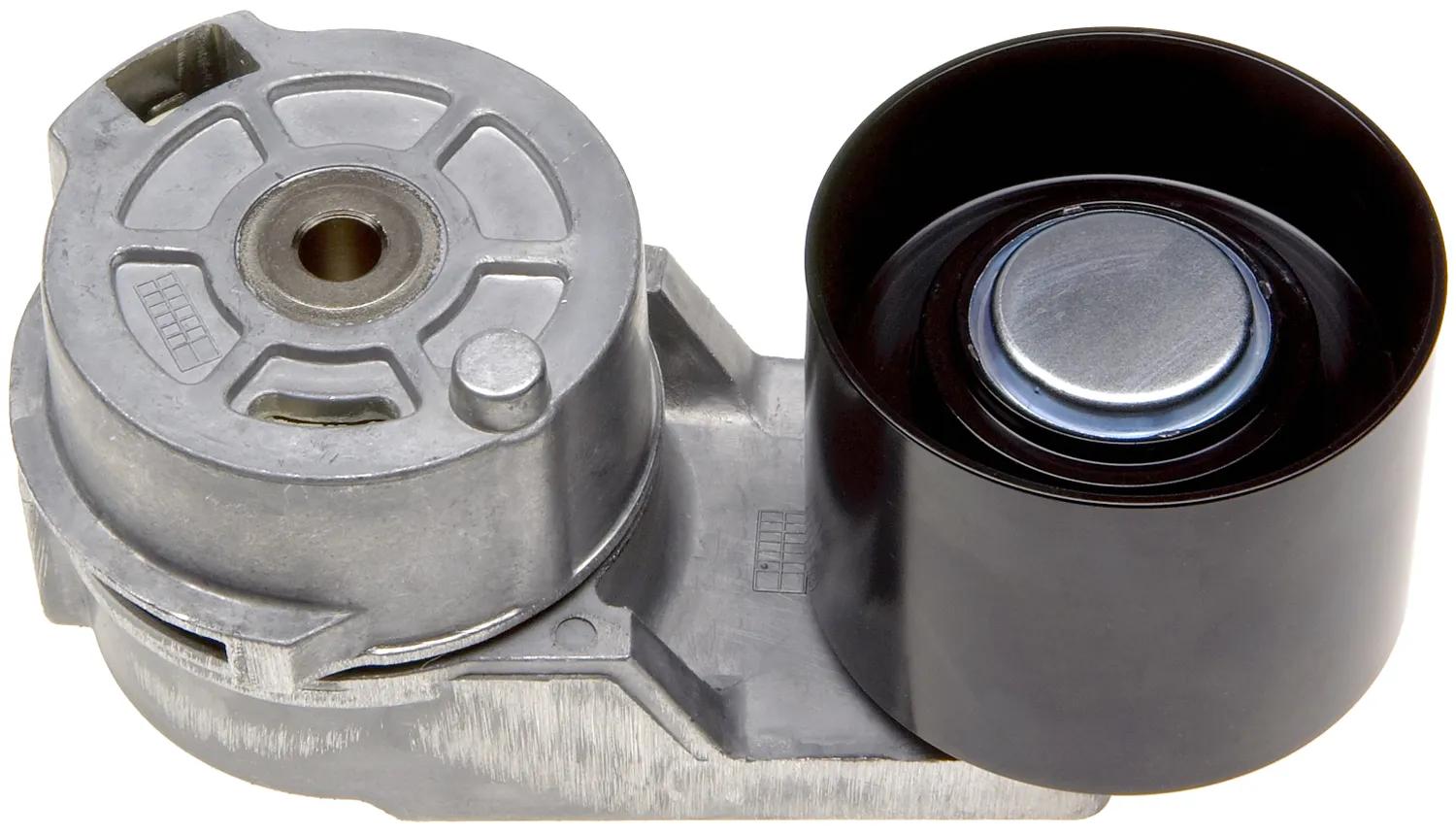

Gates Fleetrunner™ Heavy Duty Belt Tensioner Assy, Steel, 1 Pulley, 3 in (76.3 mm) Outside Diameter, 17 mm Bearing Bore
#GAT38587
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function. When it comes to rugged applications in severe conditions, Gates Fleetrunner™ heavy duty belt tensioners are top of the line. Tested to withstand and excel under extreme pressure, they deliver up to three times the life cycle compared to other aftermarket providers.Belt Tensioner, Heavy Duty, ISX, ISX12, ISX15, Signature 600 Cummins Engine, Steel, 17 mm Bearing Bore ID, Smooth/Backside Contact Surface, 2871292, 2871293, 3682946, 4299051, 2871292, 2871293, 3682946, 4299051 Cross Reference, 1 Pulleys, 76.3 mm OD, 57 mm Width
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
- Gates Fleetrunner™ Tensioners last up to three times longer than other aftermarket, heavy-duty solutions, significantly reducing downtime and increasing economic efficiency.
- The components in the Fleetrunner™ tensioners have been improved and engineered for increased strength and durability, leading to superior, long-lasting products.
- Double row bearings carry more load and last up to three times longer than two separate bearings.
- Labyrinth seal technology prevents contamination of internal parts, improving durability and service life.
- A machined steel pulley reduces surface wear while shielding the internal bearing from external contaminants and damage.
- A patented damping mechanism provides maximum stability, reduces vibration, and increases service life.
Specifications
| Belt Top Width | 2-1/8 to 2-1/4 in |
| Contact Surface | Smooth/Backside |
| Material | Steel |
| Number Of Mounting Holes | 1 |
| # of Pulleys | 1 |
| Outside Diameter | 3 in |
| Width | 2-15/64 in / 57 mm |
| Bearing Bore Inside Diameter | 17 mm |
| Drive Type | Automatic |
| Engine Type | ISX, ISX12, ISX15, Signature 600 Cummins |
| Includes | Tensioner Assy |
| Number of Pulleys | 1 |
| Type | Heavy Duty |
| Product Category | Belt Tensioner |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 910074A |
| 236-2301 |
| 2871292 |
| 3682946 |
| 3683289 |
| 3691282 |
| 4299051 |
| 49563 |
| 689440 |
| 89440 |
| D1186-2613 |
| GYB49563 |
| 2871293 |
| 3684428 |
| 3691283 |
| 4299052 |
| 910074 |
| GT38587 |
| GT 38587 |
