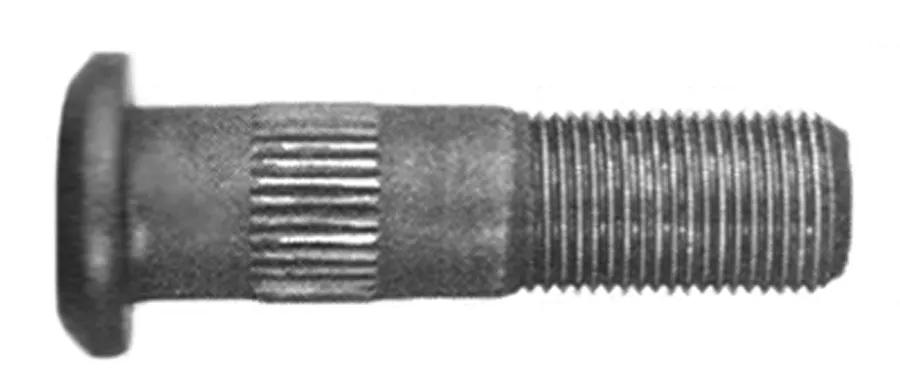

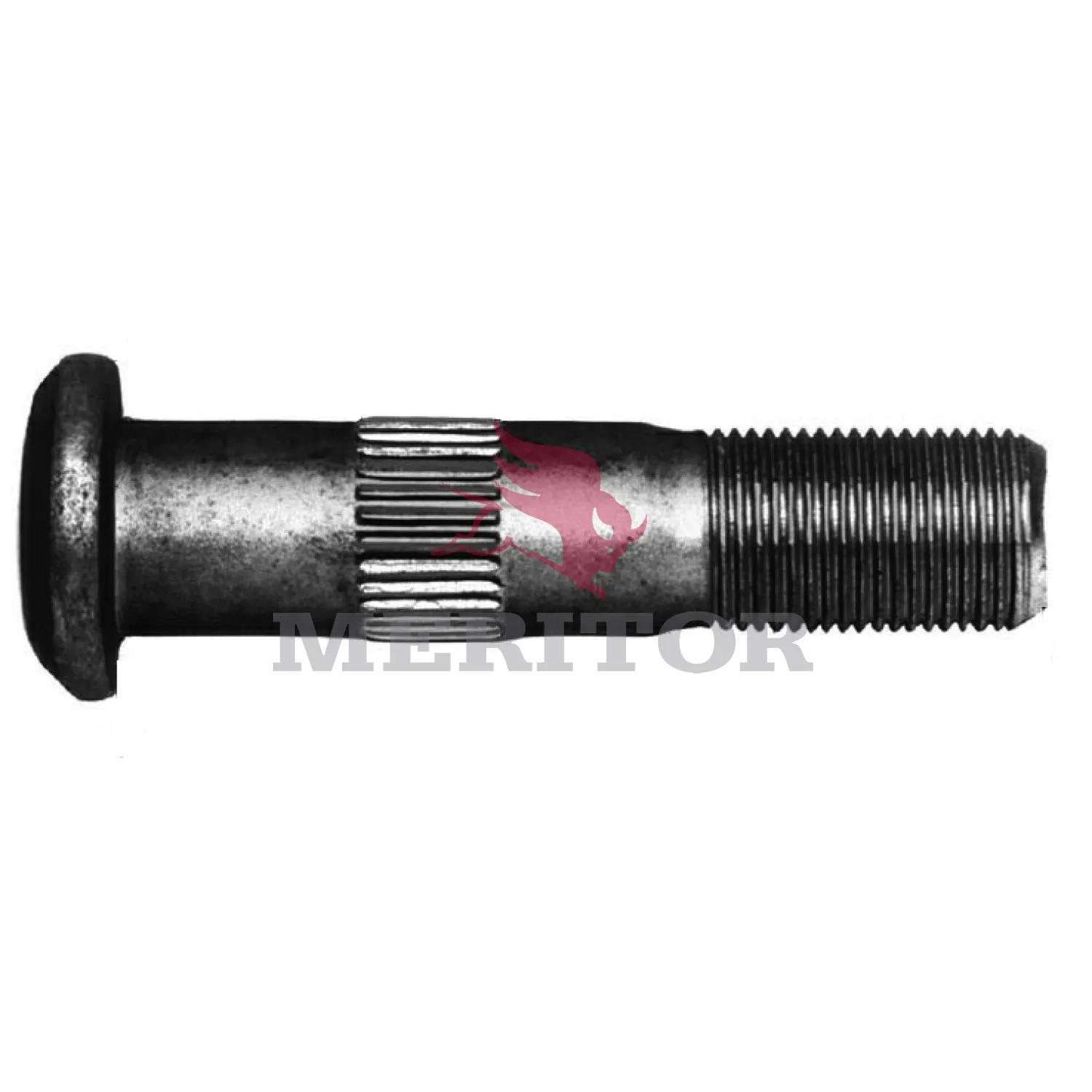

Goujon dentelé, UHL: 2-3/8 po, Filet: 31/32 po x 3/4-16
#ROCR004965L
Specifications
| Diamètre du corps | 25/32 po (1,98 cm) |
| Longueur du corps | 1 po (2,54 cm) |
| Hex | 1-9/32 po (3,26 cm) |
| Longueur | 2-3/8 po (6,03 cm) |
| Longueur sous la tête-OAL | 2-3/8 po (6,05 cm) |
| Nombre d'éléments | 10 |
| Filetages droit ou gauche | Gauche |
| Dentelure | Cranté |
| Filetage | 3/4-16 |
| Longueur du filetage | 31/32 po (2,47 cm) |
| Type | Rond |
| Application | Used on TK. TKL. RL. TL (also Eaton). With some cast drums on TK. TKL. use R004968-R/L. Used on RN. RQ. TKN. |
Interchanges & Equivalent parts:
| 13-1102L |
| E-4965L |
| U73X1081 |
| U73X1715 |
| X1081 |
| X1715 |
| 20X687 |
| 501122L |
| 1541702L |
| 20X1805 |
| 50-1122L |
| 610051 |
| 67242 |
| 8235-R004965L |
| 9628 R004965 L |
| ATIR004965L |
| K-36708 |
| K36708 |
| NL5303 |
| R004965L-RI |
| TDA R004965L |
| TDAR004965L |
| TP820L |
| TWDR004965L |
| 1194127 |
| 121365H1 |
| 2405564 |
| 3723956 |
| 50-33A-28 |
| 59191 |
| 59192 |
| 59533 |
| 59534 |
| M-75 |
| TDAA1119A |
| W-65 |
| W65 |
| WA1044 |
| X-1081 |
| 180208 |
| 878211R1 |
| 884823 |
