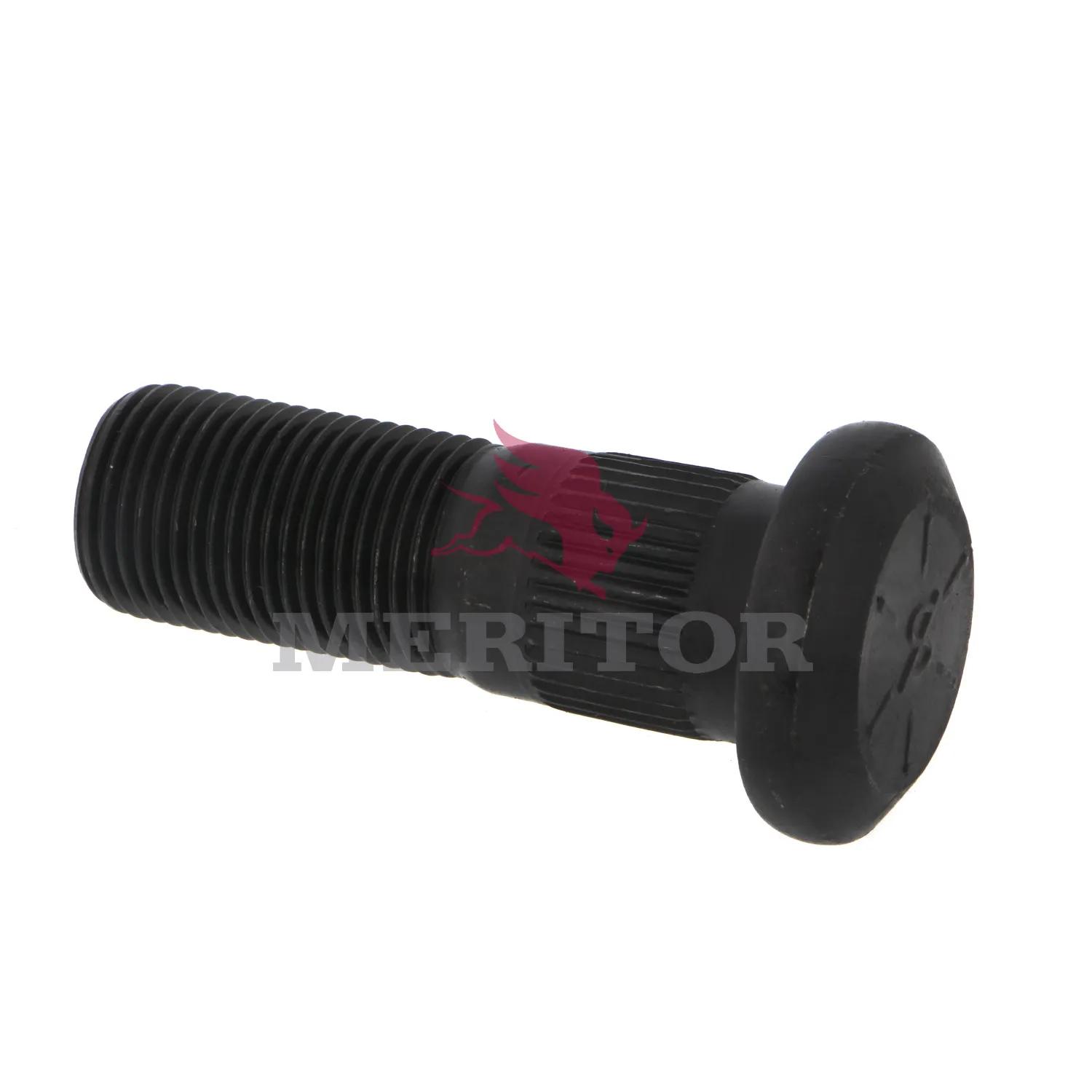

Goujon dentelé, UHL: 2-3/8 po, Filet: 31/32 po x 3/4-16
#ROCR004965R
Sommaire du produit
We Offer a Wide Variety of Wheel Attaching Hardware Sure to Meet Your Fleets Ever Changing Needs.
Caractéristiques et avantages
- Heavy duty grade 8 materials for strength and durability
- Stepped Body Diameter
Spécifications
| Diamètre du corps | 25/32 po (1,98 cm) |
| Longueur du corps | 1 po (2,54 cm) |
| Hauteur | 3-29/64 po (8,78 cm) |
| Hex | 1-9/32 po (3,26 cm) |
| Longueur | 7-3/32 po (18,02 cm) |
| Longueur sous la tête-OAL | 2-3/8 po (6,05 cm) |
| Nombre d'éléments | 10 |
| Filetages droit ou gauche | Droite |
| Dentelure | Cranté |
| Filetage | 3/4-16 |
| Longueur du filetage | 31/32 po (2,47 cm) |
| Type | Rond |
| Application | Used on TK. TKL. RL. TL (also Eaton). With some cast drums on TK. TKL. use R004968-R/L. Used on RN. RQ. TKN. |
Interchanges et pièces équivalentes:
| 13-1102R |
| 50-1122R |
| E4965R |
| M74 |
| U73X1080 |
| X1080 |
| 20X688 |
| 3946438 |
| 501122R |
| 67241 |
| 8235-R004965R |
| 9628 R004965 R |
| ATIR004965R |
| K-36707 |
| NL5302 |
| R004965R-RI |
| TDA R004965R |
| TDAR004965R |
| TWD R004965R |
| 1541702R |
| 1194126 |
| 121364H1 |
| 36707 |
| 3723955 |
| 50-33A-27 |
| 59191 |
| 5919192 |
| 59192 |
| 59533 |
| 59534 |
| 610-050 |
| 878210R1 |
| 884822 |
| M-74 |
| TDAA1118A |
| TP820R |
| W-64 |
| W64 |
| WA1045 |
| X-1080 |
| 180207 |
