Grote LED Amber Directional Warning Light, Low Profile, Clear Lens, Rectangular, Die-Cast Aluminum, S-Link™ Compatible

#GRO78163

Product Overview

Warranty: GRO78163 - Warranty Documents - A

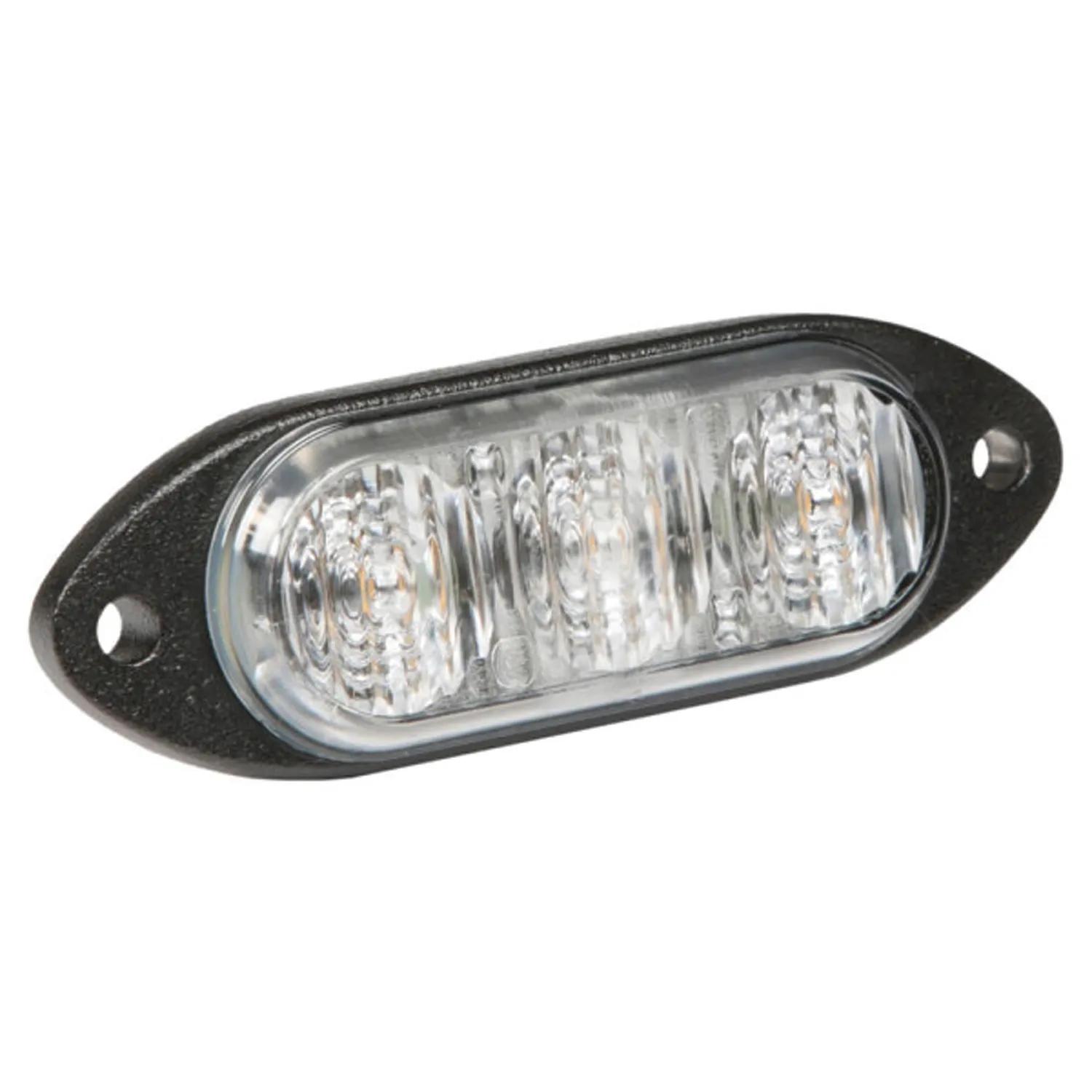

Ultra-low profile LED directional warning lights offer a reliable, high-intensity solution with wide-angle visibility and robust die-cast aluminum construction. Features include single and split color options, 25 built-in flash patterns, and S-Link™ System compatibility for synchronization with up to eight interconnected modules. Designed with a polycarbonate lens and blunt cut connection, this versatile directional warning lamp meets SAE J595 standards and operates reliably in temperatures from -40 to 55°C.Directional Warning Lamp, Low Profile, Blunt Cut Connection Type, LED, Surface Mounting, Clear Lens, Polycarbonate/Aluminum, 0.3 A Current Rating, 22 GA Gauge, -40 to 55 deg C Operating Temperature, Class I SAE, Rectangular, SAE J595 Standards, 5 Years Warranty, 0.39 in Height, 3.08 in Length, 1 in Width

Features & Benefits

Only .84" thin profile for discreet installation

Selectable flash patterns in 2 phases + steady-on

Synchronize with up to six other s-link™ system units

Compatible with other s-link™ products for versatile use

Grommet mount convertible to surface mount with optional bezels

Robust design with die-cast aluminum base

Self-contained high intensity, wide angle LED module

S-Link™ System synchronizing capabilities with up to eight interconnected modules

25 different built-in flash patterns

Specifications

Connection Type	Coupe franche
Gauge	22 GA
Height	0.39 po
Length	3.08 po
Lens Color	Transparent
Material	Aluminium / Polycarbonate
Mounting Type	Surface
Operating Temperature	-40 à 55°C
SAE Class	Classe I
Shape	Rectangulaire
Standards	SAE J595
Type	Low Profile
VMRS Code	034-001-021
Warranty	5 Years
Width	1 in
Current Rating	0.3 A
Light Pattern	25 built-in flash patterns
Light Type	LED
Product Category	Directional Warning Lamp
