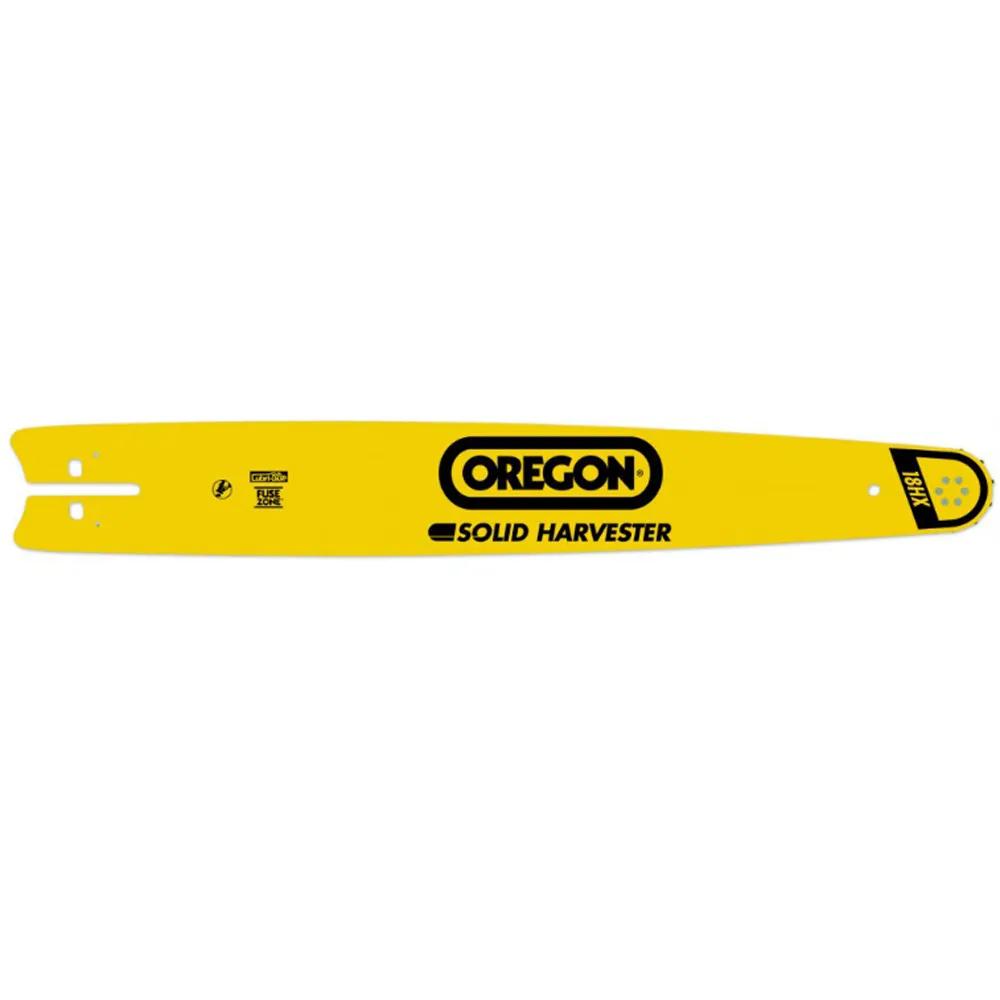

Oregon Yellow 0.080 in. Gauge 0.404 in. Pitch 6.68 lbs 75 cm Bar Length Harvester Chainsaw Bar
Product Overview
Faster. Stronger. Longer lasting. Oregon solid harvester (Sprocket nose) guide bar delivers superior performance in demanding, high-speed conditions. This bar resists chipping and features outstanding springback. Made from high-grade alloy steel with induction-hardened bar rails, it is tough and durable. Harvester replaceable sprocket nose bars extend the life of the bar body. The RSN’s strong and rigid design helps accelerate your return on investment by increasing workload efficiency with quick and easy nose replacement in the field. The patented jet-fit bar-mount system maximizes productivity. The slotted motor-mount design fits harvester equipment outfitted with automatic chain tensioners and easily slides in and out of the bar clamp. The jet-fit is available in 0.080 in gauge.Harvester Bar, Steel, Yellow, 76.2 cm Bar Length, For Logset, Timbco, Rottne, Logmax, John Deere, Drive Links Count: 86, 12 AWG, 0.404 in Pitch, 0.61 cu dm Volume
Features & Benefits
- The patented jet-fit bar-mount system maximizes productivity, the slotted motor-mount design fits harvester equipment outfitted with automatic chain tensioners and easily slides in and out of the bar clamp
- Guide bar RSN requires fewer rotations ultimately extending the life of your bar
- 0.404 in guide bars are equipped with unique features that facilitate superior performance in demanding, high-speed conditions
- Guide bar RSN can be replaced in the field several times, decreasing downtime between cuts
- Lubritec increases the life of your guide bar and saw chain with advanced precision to allow the chain drive links and oil to have closer contact, significantly reducing oil waste
- The induction hardening process increases the longevity of your guide bar with precision heat-treated rails and added resistance to wear and chipping
- Our straight and square-milled grooves are designed for consistency, stability, and decreased wear
- Image shown may not reflect actual bar tail motor mount, check Oregon harvester catalog for actual tail mount configurations
Specifications
| Material | Steel |
| Type | Harvester |
| Bar Length | 75 cm |
| Color | Yellow |
| Compatibility | Logset, Timbco, Rottne, Logmax, John Deere |
| Drive Links Count | 86 |
| Gauge | 0.080 in. |
| Includes | Jet-fit bar-mount system |
| Pitch | 0.404 in |
| Sprocket Tip Type | Sprocket nose |
| Volume | 0.61 cu dm |
| Product Category | Harvester Bar |
| Weight | 6.68 lbs |
Interchanges & Equivalent parts:
| OR752RHFL149 |
