Strobe Light, Yellow, V: 12 & 24
#TRL92860Y
Product Overview

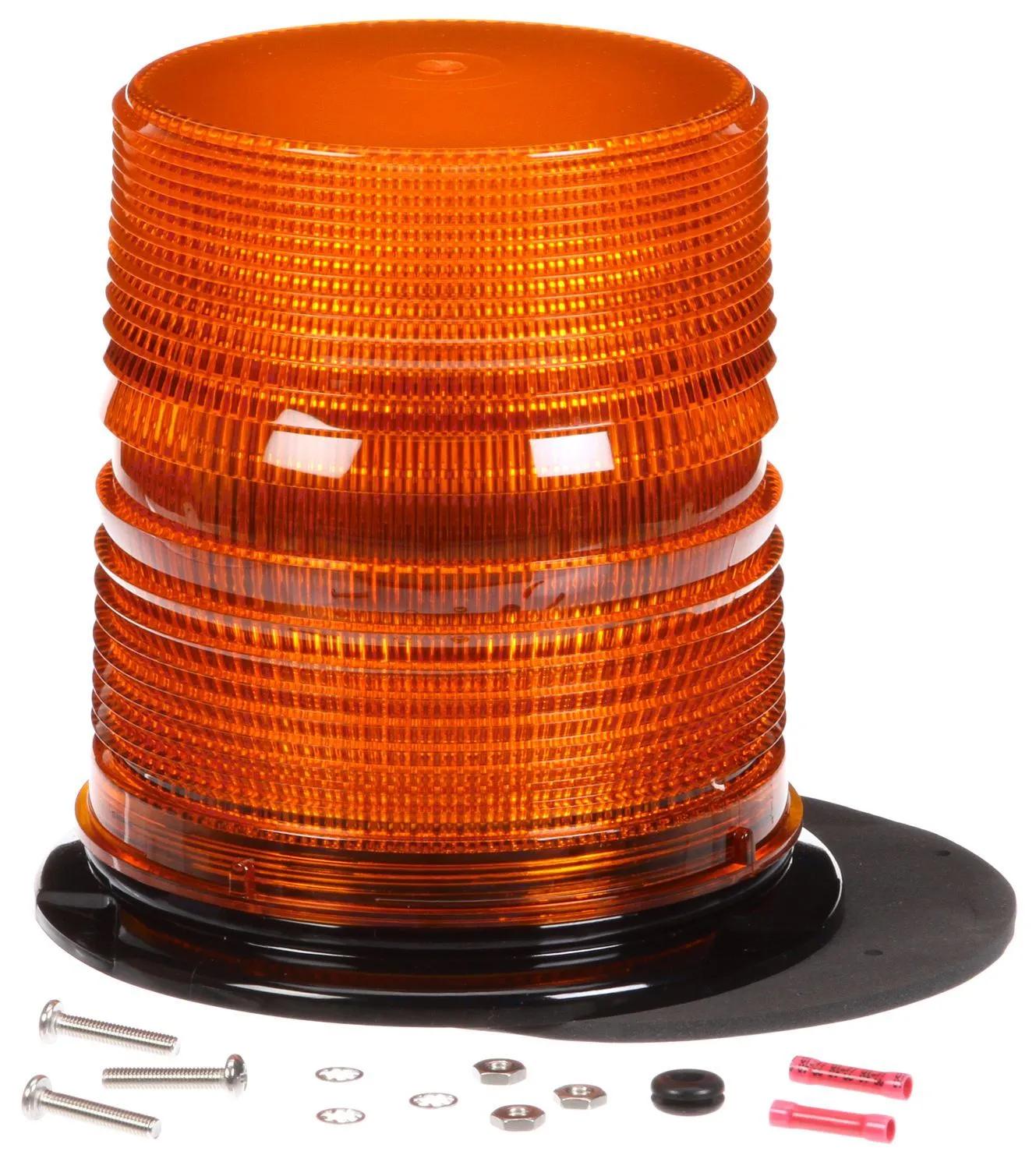

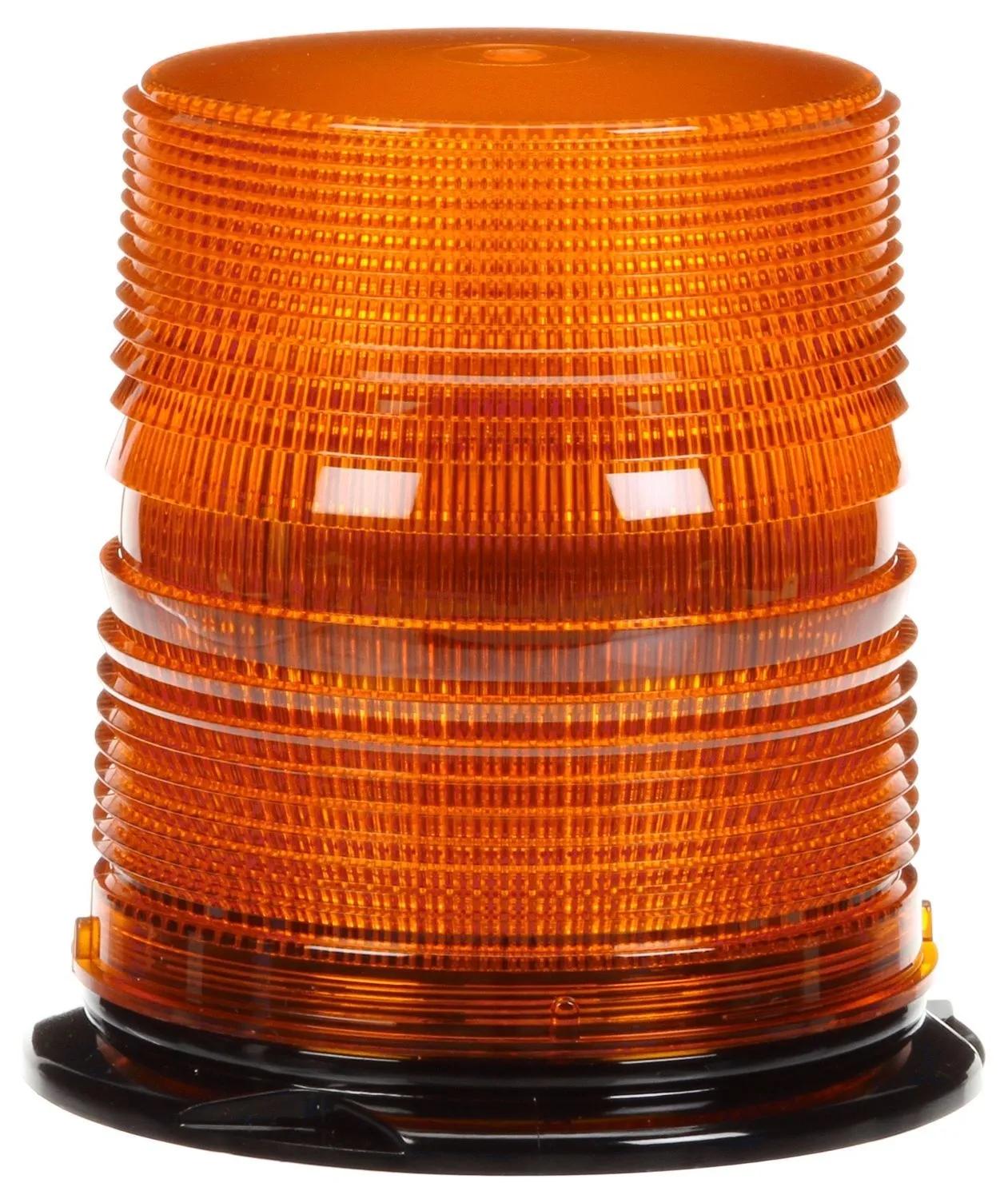

LED, Medium Profile Beacon, Yellow, Permanent Mount/Pipe Mount, Class I, Hardwired, Stripped End, 12-24V
Features & Benefits
- Designed for surface and pipemount. Field selectable flash patterns for single, double or quad flash patterns. Twist on/off lens.
- Replacement lens number LIT 99220Y
Specifications
| Color | Yellow |
| Contents | LED Strobe |
| Depth | 6-13/32 in (16.28 cm) |
| FPM | 244 FPM |
| Height | 6-11/16 in (16.99 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Lamp Type | LED Strobe Medium Profile Permanent Mount |
| LED | Yes |
| Length | 6-45/64 in (17.02 cm) |
| Lens Height | 5-7/8 in (14.94 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 5-1/2 in (13.97 cm) |
| Material | Polycarbonate |
| Mount Type | Permanent Mount |
| Number Of Wires | 5 |
| Pattern | Quad |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Beacon |
| Profile | Medium Profile |
| Shape | Round |
| Standard | SAE |
| Technology | LED |
| VMRS Code | 034-006-004 |
| Volt | 12V & 24V |
| Weight | 3 lb (1.36 kg) |
| Width | 6-13/32 in (16.28 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 16 in (40.64 cm) |
Interchanges & Equivalent parts:
| 250121 |
| 255HTCL |
| 77833 |
| 7970A |
| L10 |
| LED400A |
| 126-LED67422A-8 |
| 8413-92860Y |
| 92860Y |
