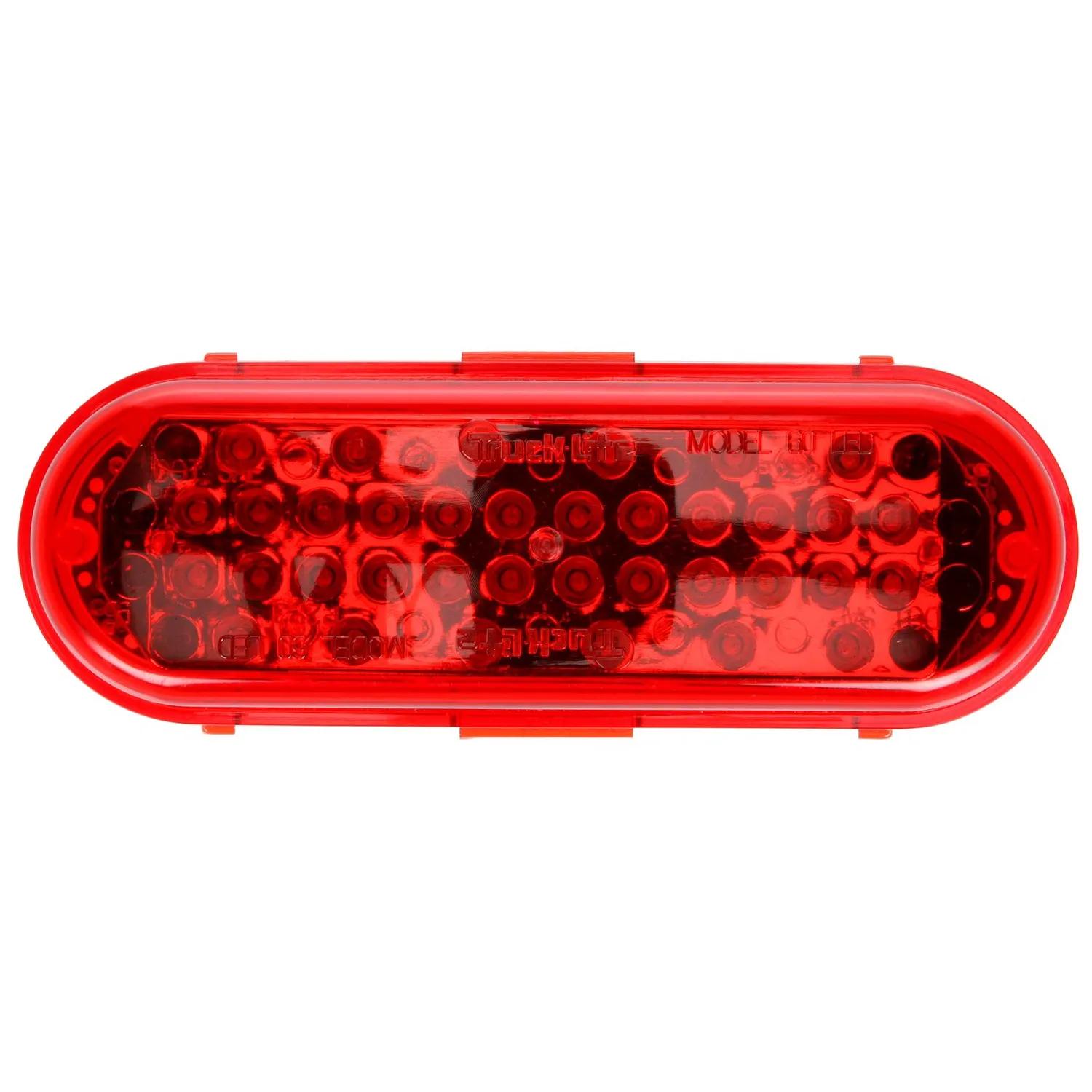

Strobe Light, Red, V: 12
#TRL60120R
Product Overview
Super 60, LED, Strobe, 36 Diode, Oval Red, Red Grommet Mount, Class II, Metalized, Fit 'N Forget S.S., Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- External power pack not required
- Metalized reflector version offers more intense focused light
- Non-metalized version offers wider viewing angle
- Dual or quad flashing patterns
Specifications
| Amps | 0.5 amp |
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Grommet, Plug |
| Depth | 1-39/64 in (4.09 cm) |
| Finish | Metalized |
| Fits Pigtail Part #(s) | 95220 Included |
| Height | 3-11/32 in (8.48 cm) |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 3 |
| Lamp Type | Super 60 LED Integral Strobe Kit |
| Length | 6-1/2 in (16.51 cm) |
| Lens Height | 2-5/16 in (5.87 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 6-1/2 in (16.51 cm) |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Pattern | Dual |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | PL-2 (Stripped End) |
| Power Type | Self-Contained |
| Product Type | Strobe Light |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| VMRS Code | 034-001-063 |
| Volt | 12V |
| Weight | 0.21 lb (0.1 kg) |
| Width | 7-37/64 in (19.25 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 60120R |
| 77362 |
| 92420 |
| 841360120R |
| 67002 |
| TL60120R |
| TLD60120R |
| TRL60120R |
| 8413-60120R |
| LIT60120R |
| TL 60120R |
| TL 60120R |
| GRT92420 |
