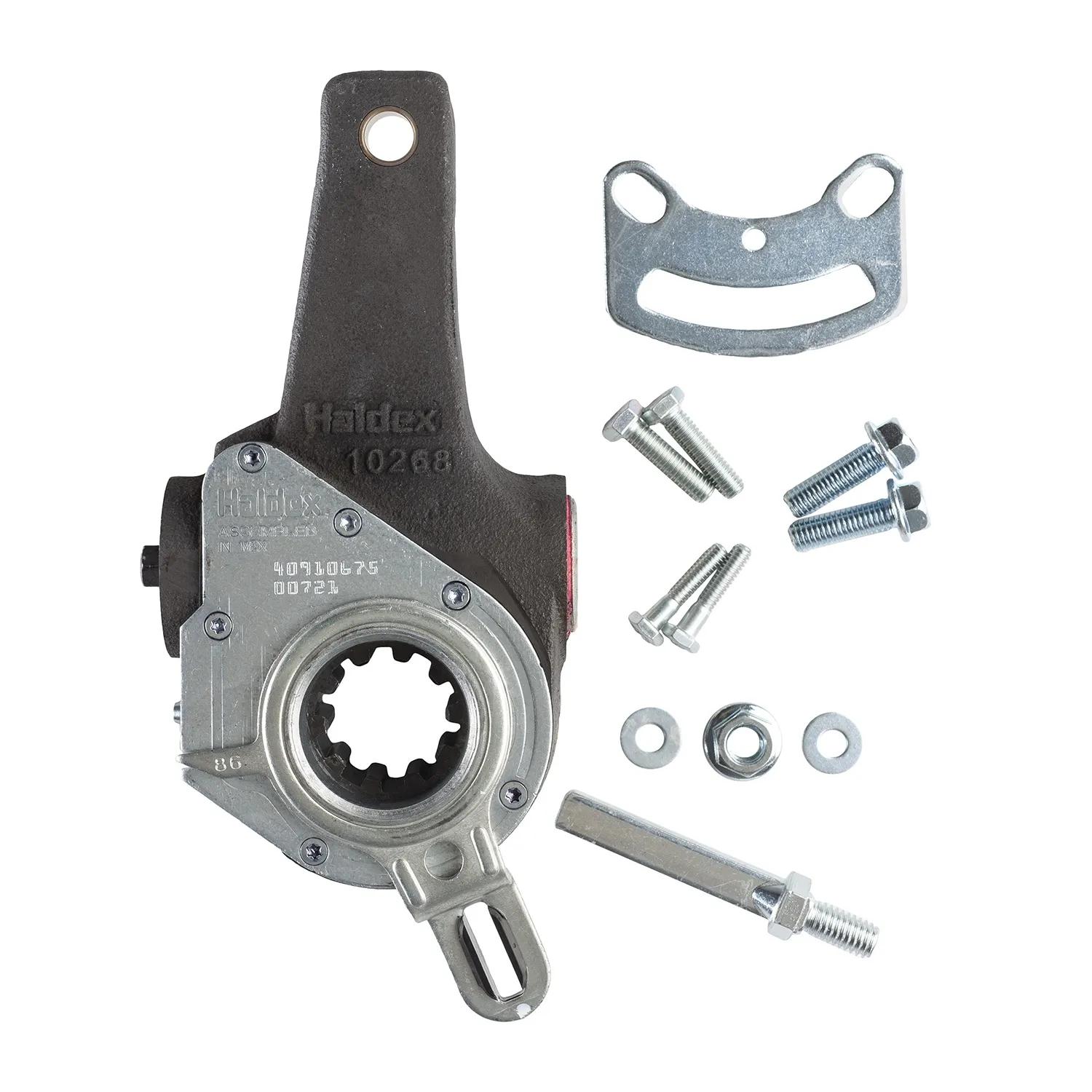

Haldex Automatic Brake Adjuster, 1-1/2 in Spline Diameter - 10 Splines, 6 in Arm Length
#MID40010216
Product Overview
Haldex develops and manufactures brake systems for heavy trucks, trailers, and buses. The product offering covers all primary components and subsystems included in complete air brake systems.ABA Brake Adjuster Service Kit, 6 in Arm Length, Automatic Automatic or Manual, 16-1/2 in Brake, 10 Splines, Prop65, 1-1/2 in Spline Dia, For Trailer Axle
Features & Benefits
- Reliable O-Rings & Gaskets Seal Out Moisture & Contaminants.
- Haldex Automatic Brake Adjusters cover more applications than any other brand.
- Backed by the industry's longest warranty.
- Compatible with all major brand clevises.
Specifications
| Application | Style Haldex, Essieu de remorque |
| Automatique ou manuel | Automatique |
| Dimension du frein | 16-1/2 po |
| Type de chape | Sans chape |
| Remarques | Eaton 16,50 po, ES Severe Service Brake with cast shoes, Pour use with the following Brake Shoe: E-9040 (7,00 po,), |
| Nombre de cannelures | 10 |
| Diamètre de spline (po) | 1-1/2 po |
| Brake Type | ES-SS |
| Prop65 | Oui |
| Product Category | Kit d'entretien de régleur de frein ABA |
Interchanges & Equivalent parts:
| 1040010216 |
| 17A23105 |
| 104NL10216 |
| 40010216 |
| 214620 |
| 40910230 |
| 40910231 |
| 40910247 |
| 40910365 |
| 40910392 |
| 40910393 |
| 40910476 |
| 40910626 |
| 40910675 |
| 42910675 |
| 808135 |
| 808172 |
| 808382 |
| 60910230 |
| 60910231 |
| 60910247 |
| 60910365 |
| 60910392 |
| 60910393 |
| 60910476 |
| 60910626 |
| 60910675 |
| 4NL10216 |
| 813643 |
| 813653 |
| 818146 |
| 50010216 |
| 5910010PRB12E |
| 52910675 |
| 712000810 |
| 50910230 |
| 50910247 |
| 50910392 |
| 50910476 |
| 50910626 |
| 50910675 |
| 05501108 |
| E6936 |
| PS02277D |
| R806015 |
| 05-660 |
| 400-10216 |
| 40010216E |
| 40010216S |
| D0010216 |
| E-6936 |
| E6936A |
| MID40910675 |
| IMT409-10675 |
| IMT400-10216 |
| HAL400-10216 |
| DAN40010216S |
| DAN40010216E |
| DAN40010216 |
| HSA1200HR |
| 3946098 |
| 40010216-MD |
| 40010216M1D |
| CS52363M1D |
| CS56047M1D |
| GT-56216 |
| GTA-40010216 |
| HA-400-10216 |
| HAE40010216 |
| HAL40010216 |
| HDX 40010216 |
| MID40010216 |
| S-23857 |
| ZSA40010216 |
| ZZ40010216 |
| 10-400-10216 |
| 10-4NL-10216 |
| AS1033 |
| 409-10230 |
| 409-10231 |
| 409-10247 |
| 409-10365 |
| 409-10392 |
| 409-10393 |
| 409-10476 |
| 409-10626 |
| 409-10675 |
| 429-10675 |
| 500-10216 |
| 509-10230 |
| 509-10247 |
| 509-10392 |
| 509-10476 |
| 509-10675 |
| 8083 |
| A11966 |
| U5540010216 |
| 51100630 |
| 10372 |
| M3921ASS |
| MIR40010216 |
| PNA497 |
| AB23236 |
| 17-A23-105 |
| 5501108 |
| RB10216 |
| 40010212 |
| 40010224 |
| 40020223 |
| MK42106S |
