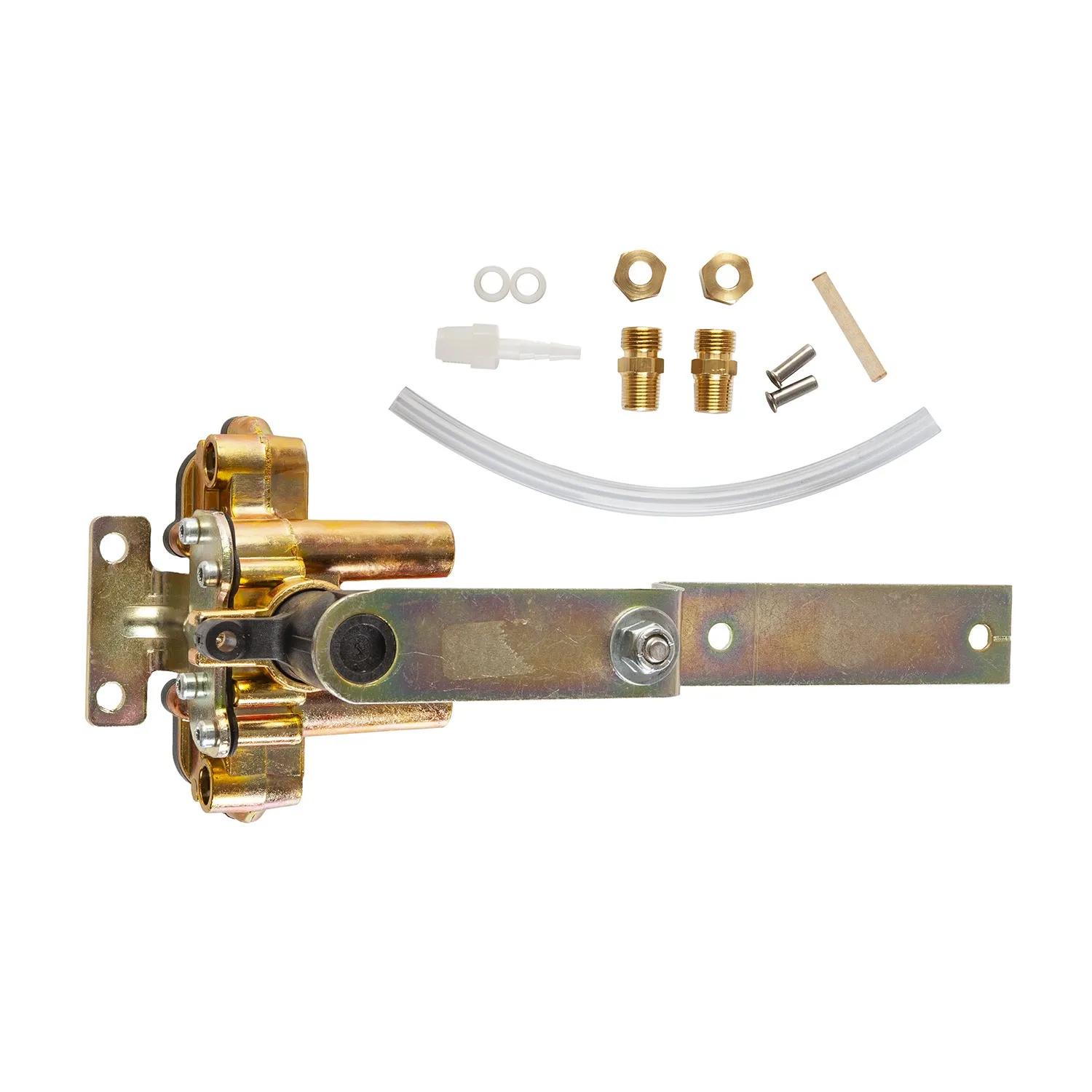

Haldex Controlled Response Height Control Valve, Die Cast Zinc, 1/8 in NPT Inlet & Outlet, Heavy Duty Truck Air Suspension
#MID90054007
Product Overview
Haldex develops and manufactures brake systems for heavy trucks, trailers, and buses. The product offering covers all primary components and subsystems included in complete air brake systems. This height control valve automatically adds or exhausts air from air suspension to maintain constant static design height, improving ride quality and reducing air consumption to extend compressor life.Height Control Valve, NPT Inlet, NPT Outlet, Controlled Response, Die Cast Zinc, 1/8 in Inlet, 1/8 in Outlet, For Tractor and Trailer, Air Suspensions and Industrial
Features & Benefits
- Type CR-Controlled Response Height Control Valve
- 1/4" Fittings Provided
- All ports: 1/8 in NPT
- Original equipment on many trucks and trailers
- Automatically adds air to, or exhausts air from air suspension to maintain constant static design height
- Does not respond to short duration dynamic changes in axle position, reducing air consumption and extending compressor life
- Controlled response time delay technology maintains chassis position and conserves air to increase compressor life
- Robust die cast zinc body with precision machined steel and durable plastic components for extreme condition operation
- Available with 1/4 in, 3/8 in, or metric filter fittings, with integral dump valves and break away arms
- Flexible right or left mounting options for ease of installation and reduced inventories
- Minimum deadband range provides excellent control of suspension ride height to maintain drive system pinion angles
- Optional integrated dump valve allows automatic or manual exhaust of air from the suspension
Specifications
| Application | Tractor and Trailer, Air Suspensions and Industrial |
| Body Configuration | Die Cast Zinc |
| Control Arm | Break Away Arms |
| Dump Type | Without Dump Valve |
| Includes | 1/4" Fittings Provided |
| Inlet Size | 1/8 in |
| Inlet Type | NPT |
| Outlet Size | 1/8 in |
| Outlet Type | NPT |
| Valve Type | Controlled Response |
| Product Category | Height Control Valve |
Interchanges & Equivalent parts:
| 12900193 |
| 12900281 |
| 32755407 |
| 334750 |
| 660070004 |
| 790328C91 |
| 90054007 |
| 90054007N |
| 90054007X |
| 90054008 |
| 90054113 |
| 90054387 |
| PP02077 |
| D4HZ5L712A |
| 90554080 |
| 90554153 |
| 90554186 |
| 90554199 |
| 90554232 |
| 905544235 |
| S8718 |
| 900-54-007 |
| 0871376 |
| 660070001 |
| AA1001003 |
| AS1316 |
| E4323 |
| 947390054007 |
| GAF121288B |
| M3263 |
| 334-1143 |
| 334-750 |
| 3341143 |
| 50860013 |
| NEW90054007 |
| NE-90054007 |
| MID90054007X |
| 171LV100 |
| 2414100 |
| 30900 |
| 401225 |
| 5396-90054007 |
| 66007-0001 |
| 66007-0004 |
| 767653248691 |
| 80-1007 |
| 80-54007 |
| 80-54007TEC |
| 90054007-MD |
| 90054007P |
| 90554235 |
| 90554897 |
| ABP N32 005 009 0 |
| ACA-08178700 |
| E-4323 |
| HA90054007 |
| HAL90054007 |
| HCV-UN1PAC |
| HCV-UN1PACDUMP |
| HDX 90054007 |
| K90054007 |
| KD2357 |
| LV2357 |
| LV90054007 |
| M-3263 |
| MBI90054007 |
| MID90054007 |
| NEW 90054007 |
| PD 90054007P |
| S-8718 |
| SAP90054007 |
| 16008022 |
| ZZ90054007 |
| FS6586 |
| 0-74328 |
| 13-010-033 |
| 13014008 |
| 150040 |
| G754 |
| PA1032 |
| K160083 |
| RB90054007 |
| A1329 |
| 5315022001 |
| 2439307 |
| ACF31001 |
| EM36440 |
| XX90054007 |
| 3843010034 |
