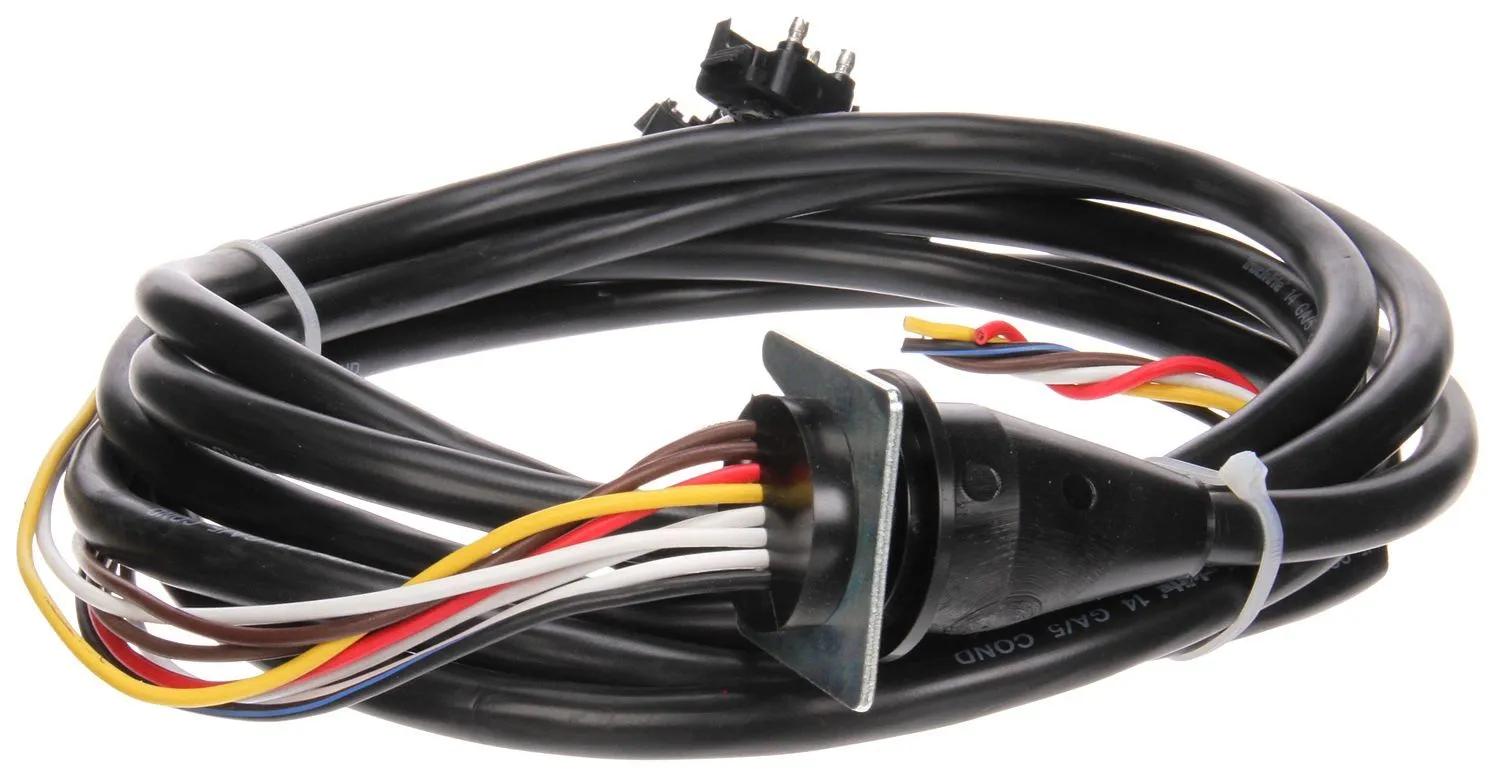

Stop/Tail/Turn Harness, 50 Series, 9 Wires, Le: 12 ft
#TRL50250
Product Overview
50 Series, 3 Plug, LH Side, 139.5 in. Back-Up, Stop/Turn/Tail Harness, W/ S/T/T Breakout, 14 Gauge, Right Angle PL-3, Right Angle PL-2, Ring Terminal
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Cable Type | Round |
| Harness Type | Back-Up |
| Kit (Y/N) | No |
| Length | 12 ft (3.66 m) |
| Number of Plugs | 3 |
| Number Of Wires | 9 |
| Plug Side One | PL-3, Female |
| Plug Side Two | Ring Terminal |
| Position | Left Hand Side |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-002-036 |
| Volt | 12V & 24V |
| Weight | 2.9 lb (1.32 kg) |
| Wire Color | Black, Brown, Red, Yellow, White |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 4138 |
| 46011556 |
| 5350520720 |
| 769367 |
| 76936799 |
| 50250 |
| 893616300 |
| 841350250 |
| 705201021 |
| HT50600187 |
| TL50250 |
| TLD50250 |
| HX17930 |
| TRU50250 |
| 8413-50250 |
| LIT50250 |
| TL 50250 |
| TL 50250 |
