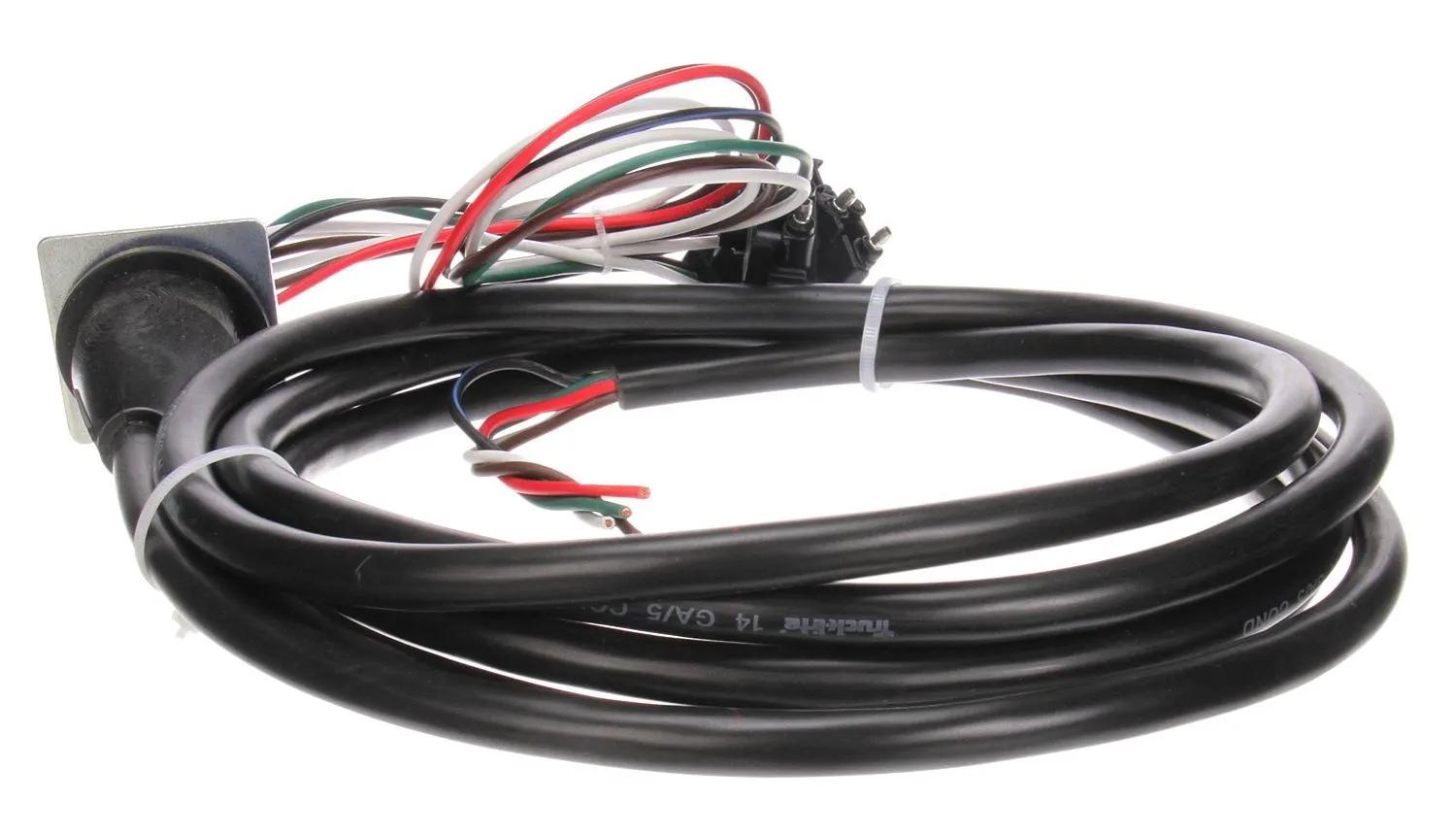

Stop/Tail/Turn Harness, 50 Series, Le: 12 ft
#TRL50251
Product Overview
50 Series, 3 Plug, RH Side, 139.5 in. Back-Up, Stop/Turn/Tail Harness, W/ S/T/T Breakout, 14 Gauge, Right Angle PL-3, Right Angle PL-2, Ring Terminal
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Type de câble | Rond |
| Type de faisceau | Stop/Turn/Tail |
| Trousse (O/N) | No |
| Longueur | 12 ft (3.66 m) |
| Nombre de prises | 3 |
| Nbre de contacts | 9 |
| Fiche #1 | PL-3, Female |
| Fiche #2 | Ring Terminal |
| Position | Right Hand Side |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-002-036 |
| Volt | 12V et 24V |
| Weight | 2.9 lb (1.32 kg) |
| Wire Color | Black, Brown, Green, Red, White |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 41381 |
| 46011557 |
| 5350520620 |
| 769368 |
| 76936899 |
| 50251 |
| 893616200 |
| 841350251 |
| 93800044 |
| 705201020 |
| HT50600192 |
| TL50251 |
| TLD50251 |
| HX17931 |
| TRU50251 |
| 8413-50251 |
| LIT50251 |
| TL 50251 |
| TL 50251 |
