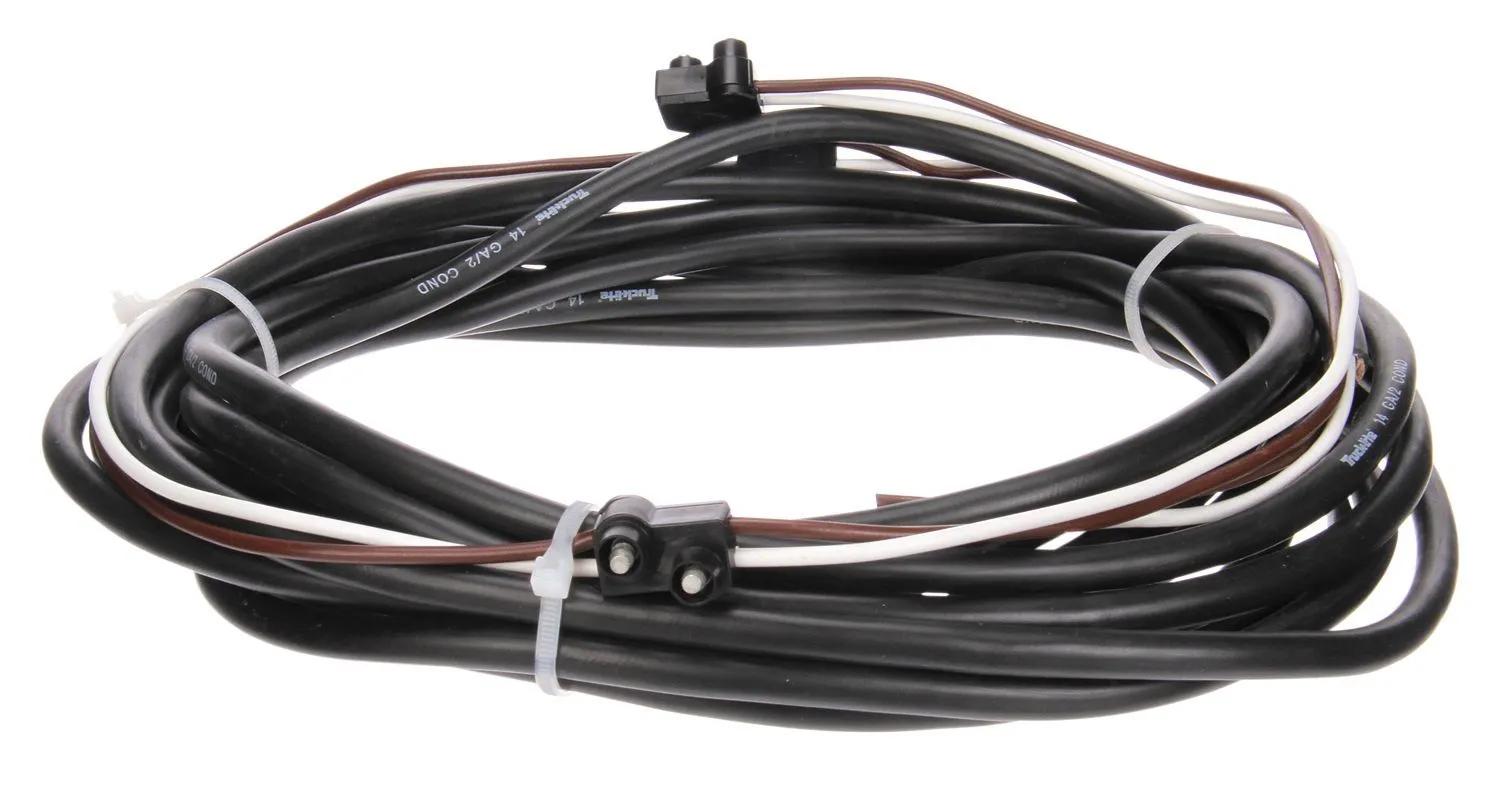

ID Harness, Upper, 50 Series, 6 Wires, Le: 24 ft
#TRL50301
Product Overview
50 Series, 3 Plug, 288 in. Identification Harness, 14 Gauge, PL-10, Blunt Cut
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Cable Type | Round |
| Center Distance | 6 |
| Harness Type | Identification |
| Kit (Y/N) | No |
| Length | 24 ft (7.31 m) |
| Number of Plugs | 3 |
| Number Of Wires | 6 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | ID Harness, Upper |
| Series | 50 Series |
| VMRS Code | 034-004-240 |
| Volt | 12V & 24V |
| Weight | 2.3 lb (1.04 kg) |
| Wire Color | Brown, White |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 4193769 |
| 60883 |
| 5360530120 |
| 878990608 |
| 717300552 |
| 769140 |
| 76914099 |
| 77044464 |
| 68472004 |
| 96800037 |
| 50301 |
| 893815810 |
| AA22F50450100 |
| 841350301 |
| 703050052 |
| 93800037 |
| 705201587 |
| 6702121 |
| HT50600671 |
| TL50301 |
| TLD50301 |
| TWC30151 |
| LYE0809 |
| LYE08091 |
| TRU50301 |
| 8413-50301 |
| LIT50301 |
| TL 50301 |
| TL 50301 |
| PA11573 |
| 293351260 |
