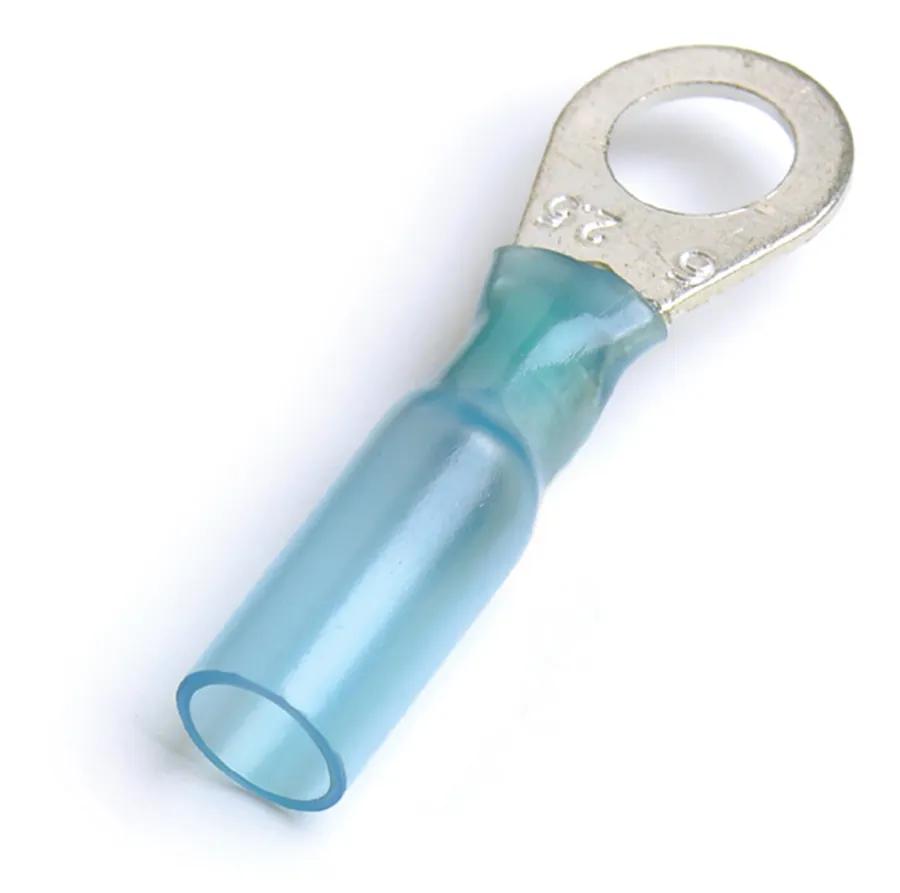

Heat Shrink Ring Terminal, Blue Polyolefin Insulation, 16-14 Gauge, #10 Stud, Pack of 50
#GRO83-2410
Product Overview
Protects splices from water, corrosion, salt, and moisture, provides strain relief, and protects against added vibration in rugged environments. Adhesive-lined, heat-shrinkable polyolefin jacket ensures a moisture-resistant seal and reliable performance in extreme temperatures.Ring Terminal, Blue Insulation, Polyolefin, 16-14 GA Gauge, cUL Listed, RoHS Compliant Standards, 10 Stud or Tab Size, -55 to 110 °C Temperature Range, 600 V
Features & Benefits
- Protects splices from water, corrosion, salt and moisture, strain relief
- No cracking after heat aging for 168 hours at 160°C (320°F)
- Wire pullout after crimping & recovery; blue: 50lb
- Built to perform reliably in extreme temperatures and rugged conditions
- Adhesive-lined, heat-shrinkable jacket ensures a moisture-resistant seal
- Crimp, solder, and seal combination enhances electrical and mechanical integrity
- Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
- Completely insulates and protects electrical connections
- Protects against added vibration in rugged environments
- Seamless butt connectors and brazed-seam rings and spades prevent opening of connector barrel
- UL listed
Specifications
| Gauge | 14 ga, 16 ga |
| Quantity | 50 |
| Stud or Tab Size | 10 |
| Temperature Range | -55 °C (-67 °F) à 110 °C (230 °F) |
| Terminal Type | Cosse à anneau |
| Type | Cosses à anneau thermorétractables |
| Insulation Color | Blue |
| Standards | cUL Listed, RoHS Compliant |
| Voltage Rating | 600 V |
| Product Category | Ring Terminal |
Interchanges & Equivalent parts:
| ZBJ832410 |
| ZBJD832410 |
| 6805-36 |
| 832410 |
| 1-1923 |
| 1-1923-100 |
| 84-2410 |
| PHI1-1923-100 |
| TB10-ST |
| 422001 |
| 7376-832410 |
| 83-2410GR0 |
| GRC83-2410 |
| GRO 83 2410 |
| GRO 83-2410 |
| GRO832410 |
| TB10-ST-R |
| TB10-ST-RTEC |
| CSBR10 |
| TEN761649 |
| 11923100 |
| 58303 |
| 5905-36 |
| 729149 |
| TB25ST |
| 2308H |
| HP1750 |
| HP1860 |
| 2222PT |
| CT363 |
| 83-2410 |
| 710899 |
| BUS-BPATM-5ID |
| BUS-BPATM-TAP |
| 30-9924 |
| 1905D |
| PT3000W |
