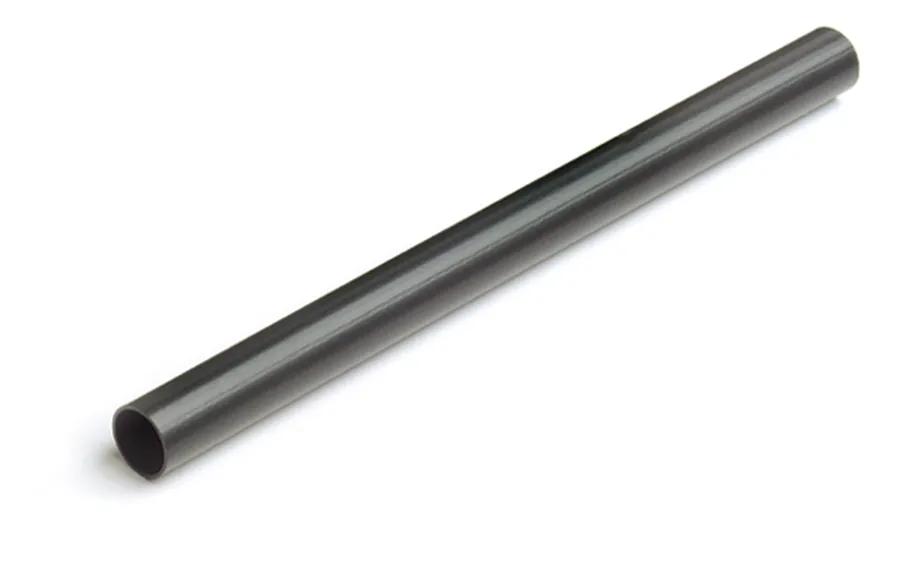

Heat Shrink Tubing, Dual Wall, Encapsulant Lined, Black, 3/8 in x 6 in, 3:1 Shrink Ratio, Pk 6
#GRO84-4001
Product Overview
Dual wall encapsulant-lined heat shrink tubing providing moisture resistance, strain relief, and electrical insulation for splices, terminations, breakouts, and mechanical connections. The semi-rigid, cross-linked outer wall and meltable inner encapsulant lining flow with heat to fill surface irregularities. Offers rugged protection from chemicals, abrasion, vibration, and flexing.Heat Shrink Tubing, Dual Wall, Encapsulant Lined Inner, Semi-Rigid Outer Wall, Black, Cross Linked Polyolefin, 3/8 in, UL E85381, Military AMS-DTL-23053/4 Class 1, RoHS Compliant Standards, 600 V, 12-8 GA Wire Gauge, 6 in Length
Features & Benefits
- Industry leading dual wall, adhesive lined heat shrinkable tubing with encapsulant lining
- Shrinks outer jacket and melts the inner "encapsulant" wall to flow and fill surface irregularities
- Corrosion and abrasion resistance to protect your electrical connection
- Shrink Ratio 3:1
- Now available in retail and bulk sizes
- Minimum shrink temperature 125°F (52°C)
- Operating temperature range -67°F (-55°C) to 230°F (110°C)
Specifications
| Application | Fil primaire |
| Couleur | Noir |
| Longueur | 6 po |
| Quantité | 6 |
| Plage de température | -67 °F à 230 °F (-55 °C à 110 °C) |
| Type | Double paroi |
| Calibre de(s) fil(s) | 8-12 GA |
| Diamètre intérieur avant rétraction | 3/8 in |
| Rapport de rétraction | 3:1 |
| Taille | 3/8 po |
| Standards | UL E85381, militaire AMS-DTL-23053/4 Classe 1, conforme RoHS |
| Tension nominale | 600 V |
| Wall Type | Encapsulant Lined Inner, Semi-Rigid Outer |
| Product Category | Gaine thermorétractable |
Interchanges & Equivalent parts:
| 844001 |
| 200286 |
| 23550 |
| 34010 |
| 6-202 |
| 84-4001-3 |
| GRO34010 |
| U11200286 |
| 057058 |
| 057146 |
| 7376-844001 |
| 85107994 |
| GRO 84 4001 |
| GRO 84-4001 |
| GRO844001 |
| NW 784756 |
| SH05-01-6 |
| SH08016 |
| ST06 |
| ST06-016R |
| ST06013 |
| ST06016 |
| TEWST06-01-6 |
| TEWST06-016R |
| ZBJ844001 |
| ZBJD844001 |
| 23633 |
| 6302 |
| 422162 |
| 57058 |
| 727650 |
| 784756 |
| 8332-13 |
| 8332-15 |
| 8332-47 |
| 8332-A |
| SH08-01-6 |
| ST060148 |
| 84-4001 |
| 5624 |
| 8232A |
| CB21120 |
| 784384 |
| 784449 |
| SU-11 |
| 782-1128 |
| 15507Y |
| 801 |
| 80253C |
| 752A |
| 420R-5P |
| 725118 |
| 725119 |
| 41017 |
| 6204 |
| 6301 |
| 422166 |
| WT5624A |
