Heavy-Duty Clutch 15.5 in - 2 in Input Shaft, 10 Splines, 7 Springs / VCT Plus - 2050 ft-lb Torque
#EAT308925-25
Product Overview

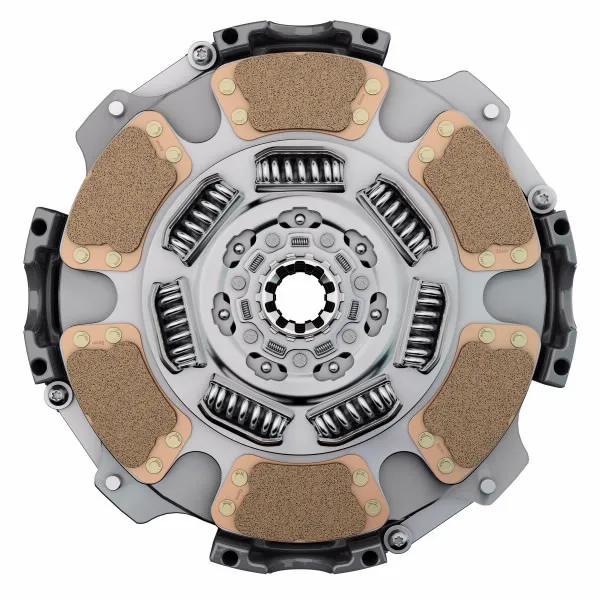

This Eaton heavy-duty clutch features a 15.5-inch diameter with a 2-inch input shaft and 10 splines, designed for manual transmission applications. It delivers a robust torque rating of 2050 ft-lb and includes 7 damper springs for enhanced performance and durability. The clutch assembly is built for long service intervals, including a 50,000-mile release bearing lubrication interval, making it ideal for demanding linehaul and heavy-duty use.Clutch, Manual Adjustment, Heavy-Duty, Manual Transmission, Ceramic Facing, 15.5 in Clutch, 7 Damper Spring Count, 6 Friction Pad Count, 2.00 in - 10 Input Shaft, 2 Discs, No Pre-Damper, 2050 ft lb Torque Rating, 7.25 in Height, 17 in Length, 17 in Width
Features & Benefits
- Manual adjustment for precise clutch engagement
- Heavy-duty construction with 7 damper springs
- 15.5-inch clutch size for high torque capacity
- 2050 ft-lb torque rating suitable for demanding applications
- 50,000 mile release bearing lubrication interval
- Ceramic facing material for improved wear resistance
- Includes 2 friction discs for reliable power transfer
Specifications
| Dimension de l'embrayage | 15.5 po |
| Matériau de parement | Céramique |
| Taille de l'arbre d'entrée | 2 po |
| Pré-amortisseur | Non |
| Type de transmission recommandé | Manuelle |
| Type | Réglage manuel, robuste |
| CUP | 840379301632 |
| Poids | 135 lb |
| Nombre de ressorts d'amortisseur | 7 |
| Friction Pad Count | 6 |
| Hauteur | 7.25 po |
| Longueur | 17 po |
| Nombre de disques | 2 |
| Nombre de cannelures | 10 |
| Torque Rating | 2050 pi-lb |
| Width | 17 po |
| Product Category | Embrayage |
Interchanges & Equivalent parts:
| 208925-25 |
| EZ208925-25 |
| 108935-15 |
| 108935-26 |
| 10893526 |
| C20892525 |
| CCC108925-25AM |
| CCC208925-25 |
| EZ208925-82H |
| SPI108935-26 |
| SPI10893526 |
| 308925-25 |
