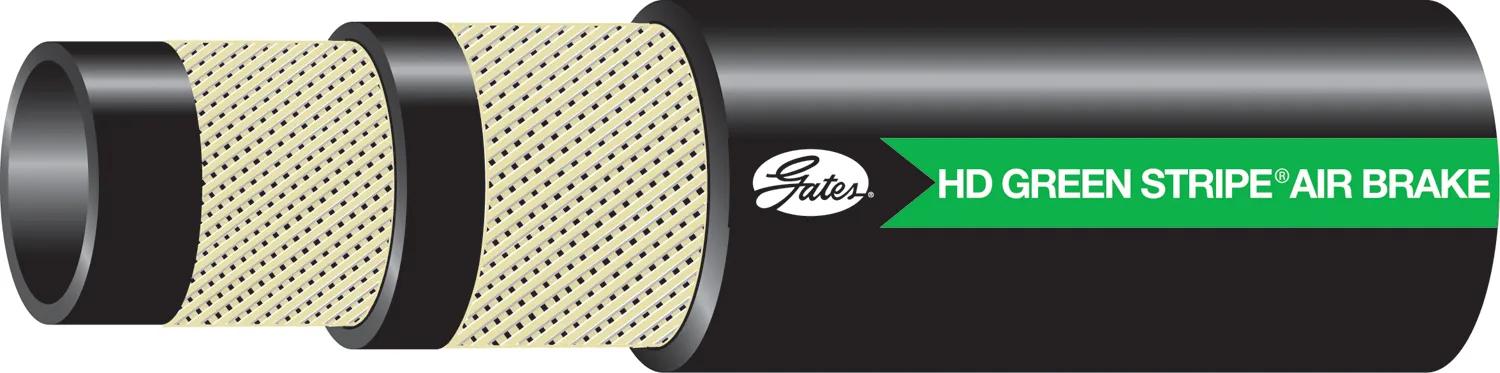

Heavy-Duty Green Stripe Air Brake Hose
#GAT28304
Product Overview
Recommended For Truck, Bus & Mobile Air Brake Systems. Can be Used as Flexible Connector Between Frame & Axle.
Features & Benefits
- Exceeds SAE J1402 & Bendix Specification. Complies w/ D.O.T. FMVSS 106 Requirements. Federal Law Requires Registration w/ the D.O.T. for Anyone Producing Air Brake Hose Assemblies w/ Swaged or Crimped Fittings.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: Gates G33 Air Brake.
Specifications
| Color | Black |
| Coupling Recommendation | Gates G33 Air Brake Couplings |
| Cover Material | Smooth Nitrile & Neoprene |
| Cover Type | Oil Resistant |
| Dash Size | 6 |
| Industrial Description | 3/8 IN X250 REEL GS RBR AB |
| Inside Diameter | 3/8 in (0.95 cm) |
| Length | 250 ft (76.2 m) |
| Material | Neoprene |
| Maximum Pressure | 225 psi (15.51 bar) |
| Minimum Burst Pressure (PSI) | 1000 psi (68.95 bar) |
| Outside Diameter | 3/4 in (1.91 cm) |
| Product Type | Heavy-Duty Green Stripe Air Brake Hose |
| Reinforcement | Reinforced - Two Braids |
| Series | Heavy Duty Green Stripe |
| Standard | SAE J1402 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Neoprene |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| 28304 |
| H1401 |
| 38X250REELGSRBRAB |
| 32454470 |
