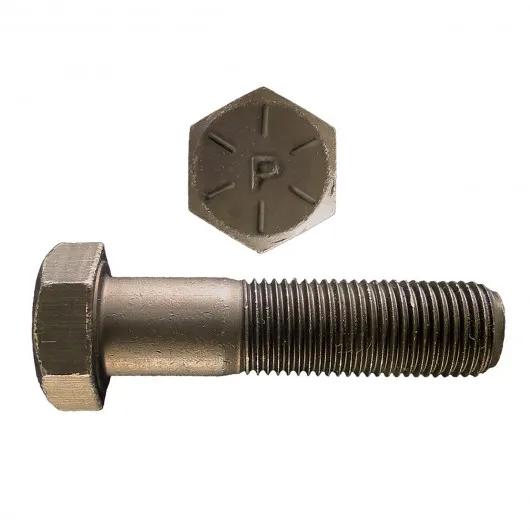

Hex Hd Cap Screw Gr 8 Unf Bare Size 3/4 X 2-1/4 In
#PAP078-718
Product Overview
Hex Head Cap Screw are used to secure an object within or against another object. Bare Metal Fasteners have no corrosion resistant qualities and are a good choice for indoor and industrial applications where corrosion is not of concern. Grade 8 Fasteners are double heat treated and are stronger than grade 5 Fasteners. Tensile Strength: 150,000 p.s.i. (min). Six radial bars Head marking. Made from medium carbon alloy steel.
Specifications
| Finition | Métal nu |
| Filetage complet ou partiel | Partial Thread |
| Niveau | 8 |
| Type de tête | Hexagonale |
| Impérial ou métrique | Impérial |
| Longueur | 2-1/4 po (5,72 cm) |
| Matériel | Acier au carbone |
| Pièces par paquet | 20 |
| Product Classification | Vis à tête cylindrique |
| Groupe de produits | Boulons |
| Length Range | 2 à 2,99 po |
| Thread Size | 3/4 po (1,91 cm) |
| Thread Type | UNF (Unified National Fine) |
| Type | Vis à tête hexagonale UNF |
Interchanges & Equivalent parts:
| U15078718 |
| U73X22321 |
| X22321 |
| 078-718 |
