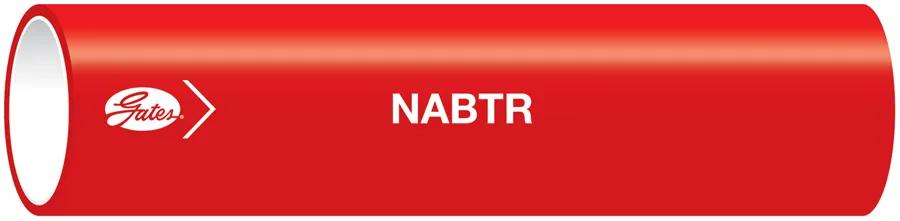

Air Brake Hose (D.O.T.), OD: 1/4 in, Red
#GATH30052-04
Product Overview
Recommended for Truck, Bus, Mobile Air Brake & Service Lines Where Heat & Battery Acids & Not Present. Conforms to SAE J844 Specifications. Meets D.O.T. FMVSS 106-74. Temperature Range: -40 Deg F - +200 Deg F (-40 Deg C - +93 Deg C).
Specifications
| Couleur | Rouge |
| Recommandation d'accouplement | Gates DOT Compression, Gates DOT SureLok Couplings |
| Matériau du couvercle | Nylon |
| Industrial Description | 4NABTR X100FT |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 150 psi (10.34 bar) |
| Minimum Burst Pressure (PSI) | 1204 psi (83.01 bar) |
| Outside Diameter | 1/4 in (0.64 cm) |
| Product Type | Nylon Tubing Compression Nylon Air Brake Tubing |
| Radius | 1 in (2.54 cm) |
| Reinforcement | Type A - Non-Reinforced, NOT Recognized by DOT for Air Brake Systems, For Service Lines Only |
| Temperature Range | -40°F @ 200°F (-40°C @ 93°C) |
| Tube Description | Heat & Light Stabilized Seamless Extruded Nylon |
| Tube O.D. | 1/4 in (0.64 cm) |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| H30052-04 |
| 43270063 |
