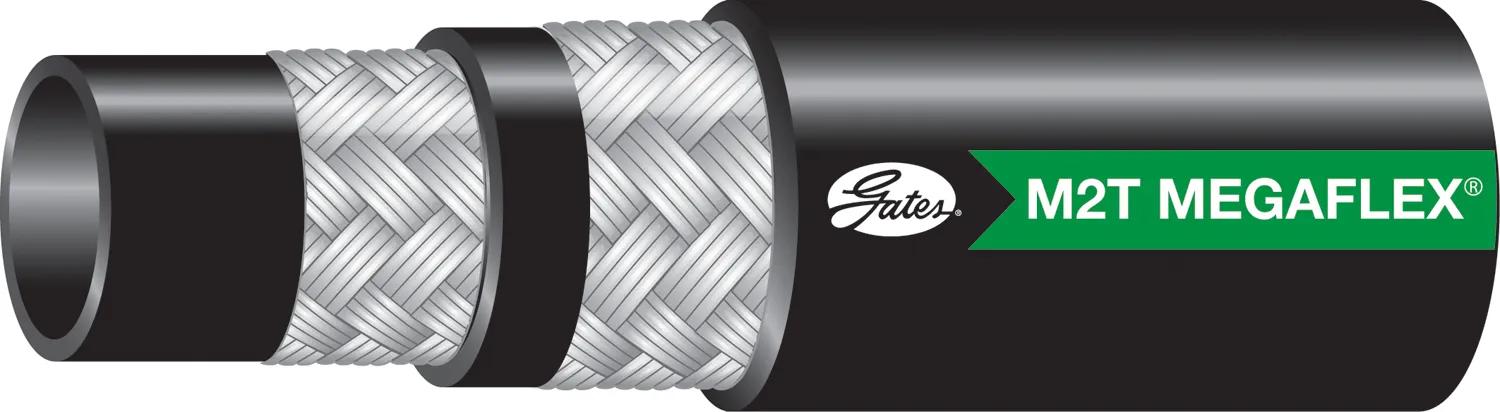

Hydraulic Hose, 1 in ID, 200 ft Length, Black Nitrile Tube, High Pressure M2T MegaFlex 2-Wire Braid - SAE 100R16
Product Overview
Recommended for high-pressure hydraulic oil line applications, this M2T™ hose features smaller exterior dimensions and a significantly tighter bend radius than competitive R16 hoses, facilitating easier routing and installation in tight spaces. Compatible with biodegradable hydraulic fluids such as polyolester, polyglycols, vegetable oils, and petroleum-based fluids. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16, ISO 1436 2SN R2, and meets performance requirements of EN 857 2SC and EN 853 2SN. Available with standard, XtraTuff™, or MegaTuff™ covers, offering up to 25 to 300 times longer abrasion resistance and superior ozone and weathering resistance. Tested to industry-leading 600,000 impulse cycles and meets Flame Resistance Acceptance Designation MSHA 2G.Hydraulic Hose, 2-Braid, Wire Reinforcement, Black, Nitrile, PVC Synthetic Rubber Cover, Nitrile Tube, 4-1/2 in Bend Radius, 2500 psi Burst Pressure, 1 in ID, 1.39 in OD, SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2, EN 857 2SC and EN 853 2SN Standards, -40 to 212 °F Temperature Range, 2500 psi Working Pressure, 200 ft Length, For High-Pressure Hydraulic Oil Line
Features & Benefits
- M2T Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: GlobalSpiral (Sizes 6 - 16), GlobalSpiral Plus, MegaCrimp & Stainless Steel B (Sizes 4 - 16).
- Recommended For: High-pressure hydraulic oil lines
- For use with GlobalSpiral™ couplings [G20 Series], GlobalSpiral™ Plus couplings [G22 Series], MegaCrimp™ couplings [G25 Series], Stainless Steel Braid couplings [G17 Series] and stainless steel spiral couplings [G18 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff™ hose lasts up to 25 times longer than standard hose
- MegaTuff™ hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Tighter bend radius reducing hose assembly length to save money
- Cover: MSHA approved oil and weather resistant, Validated with MegaCrimp™
Specifications
| Burst Pressure | 10000 psi (689.46 bar) |
| Color | Black |
| Coupling Recommendation | GlobalSpiral, GlobalSpiral Plus, MegaCrimp, Stainless Steel B, Stainless Steel Spiral |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline, Nitrile, PVC Synthetic Rubber |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant, MSHA approved oil and weather resistant |
| Dash Size | 16 |
| Industrial Description | 16M2TXREEL |
| Inside Diameter | 1 in |
| Length | 200 ft |
| Maximum Pressure | 2500 psi (172.37 bar) |
| Outside Diameter | 1-25/64 in |
| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Type | High Pressure |
| UPC | 742330975015 |
| Working Pressure | 2500 psi |
| Bend Radius | 4-1/2 in |
| Reinforcement Type | Two Braids; High-Tensile Steel Wire |
| Standards | SAE 100R16, SAE 100R2, ISO 11237 2SC R16, ISO 1436 2SN R2, EN 857 2SC, EN 853 2SN |
| Tube Material | Black, Oil-Resistant, Synthetic Rubber, Nitrile |
| Product Category | Hydraulic Hose |
Interchanges & Equivalent parts:
| GR16SC16X250 |
| GR1616X250 |
| GYHGR16SC16X250 |
| GYHGR16-16X250 |
| GR16-16X250 |
| GR1616X250RL |
| GR1616X50 |
| GR1616X50BX |
| H24516250R |
| H28016250R |
| H29016250R |
| 010266A |
| 011466 |
| 11466 |
| FC31016 |
| FC31016RL |
| 43116 |
| 43116BX |
| 43116RL |
| 70395 |
| 16M2TXREEL |
| 46571571 |
| FC310-16 |
| FC310-16RL |
| H29016 |
| FC64016RL |
| GH78116R150 |
| 04029961 |
| EC21516 |
