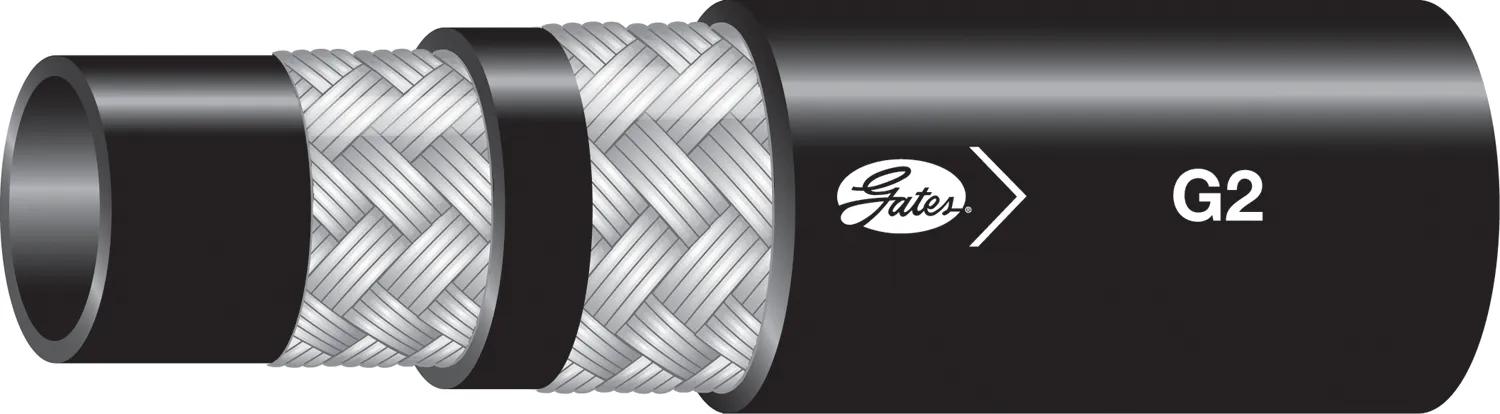

Hydraulic Hose, ID: 3/4 in, MegaCrimp
#GAT86624
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Meets or Exceeds the Requirements of SAE 100R2, ISO1436 2SN R2 & EN 853 2SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Recommended Couplings: Field Attachable Type T (Sizes 4 – 24), GlobalSpiral, GlobalSpiral Plus, MegaCrimp, Power Crimp (Size 3) & Stainless Steel B.
- Temperature Range: -40 Deg F to +212 Deg F (-40 Deg C to +100 Deg C).
Specifications
| Color | Black |
| Coupling Recommendation | Field Attachable Type T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Industrial Description | 12G2X50FT |
| Inside Diameter 1 (in) | 3/4 in (1.91 cm) |
| Length | 220 ft (67.05 m) |
| Maximum Pressure | 3100 psi (213.73 bar) |
| Minimum Burst Pressure (PSI) | 12400 psi (854.94 bar) |
| Outside Diameter | 1-5/32 in (2.94 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber (Nitrile - Type C) |
| Type | High Pressure |
Interchanges & Equivalent parts:
| GR2SN12X50 |
| GYHGR2SN-12X50 |
| GR2SN12X50BX |
| H42512 |
| 010212 |
| 12G2X50FT |
| 10212 |
| 86624 |
