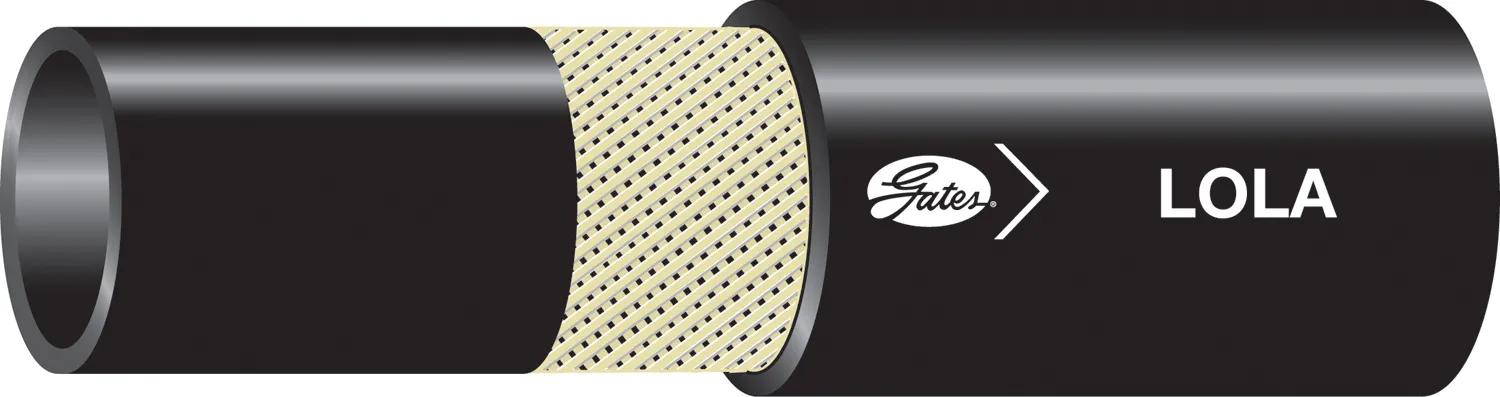

Hydraulic Hose, Le: 220 pi, ID: 1/4 in, MegaCrimp
#GAT70657
Product Overview
Recommended for Petroleum-Base Hydraulic Oils, Glycol Antifreeze Compounds, Water, Engine Lubricating Oils & Air.
Features & Benefits
- Recommended Couplings: Field Attachable LOL (Except Size 3), GLP (Except Size 3) & GLX (Sizes 4, 6, 8, & 12). Use Clamps Over Beaded Nipple. Special Order Couplings May Be Needed.
- Lock-On Hose & Couplings are Not Recommended for Pressure Surge Applications or Critical Applications, Such as Permanent Piping in Residential or Commercial Buildings.
- Do not Use for Gasoline or Diesel Fuels, Unless Approved by Gates H/C Product Application. Black Cover Only Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperatures Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C); For Air: -40 Deg F - +160 Deg F (-40 Deg C to +71 Deg C).
Specifications
| Application | Petroleum Based Hydraulic Oils, Water, Glycol Anti-Freeze Solutions, Engine Lubricating Oils & Air |
| Caution | LOL Lock-On Hose is Packaged in UPS Shippable Reels. The Use of Clamps w/ LOC Couplings is Not Recommended. |
| Color | Black |
| Coupling Recommendation | Field Attachable LOC, GLP |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 4 |
| Industrial Description | 4LOLAXREEL |
| Inside Diameter 1 (in) | 1/4 in (0.64 cm) |
| Length | 220 ft (67.05 m) |
| Maximum Pressure | 300 psi (20.68 bar) |
| Minimum Burst Pressure (PSI) | 1200 psi (82.74 bar) |
| Outside Diameter | 15/32 in (1.19 cm) |
| Product Type | LOL Plus Lock-On Hose |
| Radius | 3 in (7.62 cm) |
| Reinforcement | One Fiber Braid |
| Temperature Range | -40°F @ 212°F, @ 160°F (Air) |
| Tube Description | Black, Highly Heat & Oil-Resistant, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 28 inhg (13.76 psi) |
Interchanges & Equivalent parts:
| 535278008 |
| GYH535-278-008 |
| 535-278-008 |
| H10104500R |
| IGBLK04X500 |
| UGBLK04X500 |
| H10104250R |
| H20104 |
| H20104500R |
| H20104BK250R |
| H20104BK500R |
| 011954 |
| 11954 |
| 25754RL |
| 8014BLKBX |
| 8014BLKRL |
| 8314 |
| 8314RL |
| B704 |
| 70657 |
| 4LOLAXREEL |
| 32842501 |
| 2575-4RL |
| 8014 |
| 04030338 |
