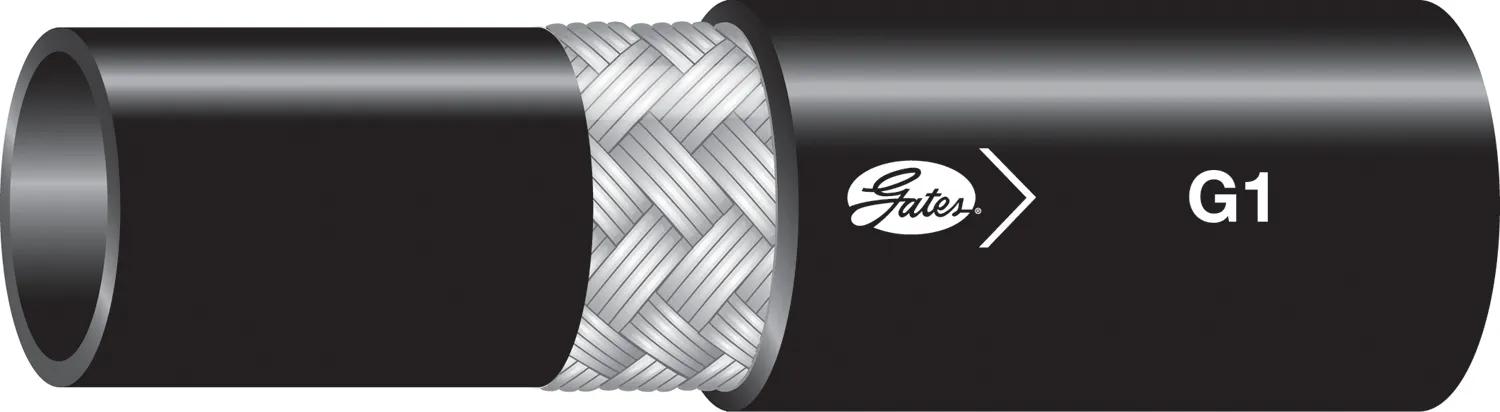

Tuyau hydraulique, Lo: 220 pi, DI: 3/4 in, MegaCrimp
#GAT70603
Sommaire du produit
Recommended for Medium Pressure Hydraulic Lines. Meets or Exceeds the Requirements of SAE 100R1 Type S & ISO 1436 1SN R1, as Well as the Performance Requirements of EN 853 1SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Caractéristiques et avantages
- Plage de température : -40 °F - +212 °F (-40 °C - +100 °C)
- Raccords recommandés : Type T à fixer sur le terrain, GlobalSpiral, GlobalSpiral Plus, MegaCrimp, MPGB (taille 3), Power Crimp (taille 3), Power Crimp Grease (taille 3) et acier inoxydable B (tailles 4 - 12, 20 et 32)
Spécifications
| Couleur | Black |
| Recommandation d'accouplement | Field Attachable T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| Matériau du couvercle | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Type de housse | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 12 |
| Description industrielle | 12G1XREEL |
| Diam. intérieur 1 (po) | 3/4 po (1,91 cm) |
| Longueur | 220 ft (67,05 m) |
| Pression maximale | 1525 psi (105.14 bar) |
| Pression minimale d'éclatement (PSI) | 6100 psi (420.57 bar) |
| Diamètre extérieur | 1-3/32 in (2.78 cm) |
| Type de produit | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Rayon | 9 in (22.86 cm) |
| Renforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Plage de température | -40°F @ 212°F (-40°C @ 100°C) |
| Tuyau - Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Moyenne pression |
Interchanges et pièces équivalentes:
| GYHGR1SN-12X250 |
| GR1SN12X250 |
| GR1SN-12X250 |
| 12762 |
| GR1SN12X250RL |
| H10412250R |
| H19012250R |
| 012762 |
| 268112 |
| FC21112 |
| FC21112RL |
| GH66312R250 |
| 42112 |
| AX12 |
| 70603 |
| 12G1XREEL |
| 2681-12 |
| FC211-12 |
| FC211-12RL |
| GH663-12R250 |
| 42212 |
| 04030086 |
| EC11512 |
| 46570123 |
