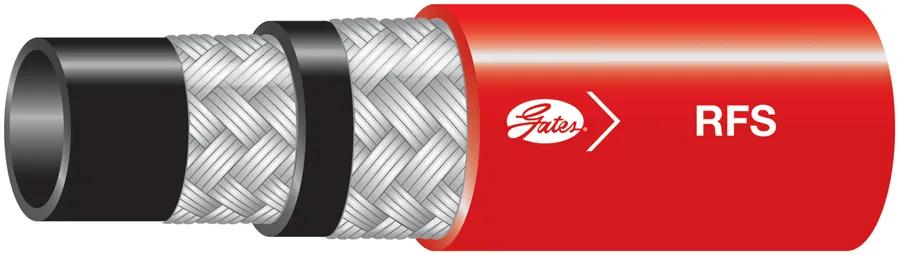

Hydraulic Hose, Le: 230 pi, ID: 3/4 in
#GATH24100-12F
Product Overview
Recommended for Low-Pressure Powder Fire Suppressant Applications in Mining, Forestry & Fire Fighting Equipment. The Red Cover is for Easy Visual Identification in these Applications. Meets Performance Requirements of SAE 100R1.
Features & Benefits
- Meets Flame Resistance Acceptance Designation MSHA 2G & Fire Retardant Anti Static Designation FRAS. Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: MegaCrimp & Power Crimp (Size 3 Only).
Specifications
| Couleur | Red |
| Recommandation d'accouplement | MegaCrimp |
| Matériau du couvercle | Modified Nitrile - Type C2 |
| Type de housse | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 12 |
| Description industrielle | 12RFSXREEL |
| Diam. intérieur 1 (po) | 3/4 po (1,91 cm) |
| Longueur | 230 ft (70,1 m) |
| Pression maximale | 1250 psi (86.18 bar) |
| Pression minimale d'éclatement (PSI) | 5000 psi (344.73 bar) |
| Diamètre extérieur | 1-3/32 in (2.78 cm) |
| Type de produit | RFS Red Fire Suppressant Hose |
| Rayon | 9-1/2 in (24.13 cm) |
| Renforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Plage de température | -40°F @ 212°F (-40°C @ 100°C) |
| Tuyau - Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Basse pression |
Interchanges & Equivalent parts:
| H24100-12 |
| H2410012 |
| GATH2410012 |
| GATH24100-12 |
| H24100-12F |
| 46573316 |
