Hydraulic Hose, Le: 328 pi, ID: 3/4 in, MegaCrimp
#GAT70877
Product Overview
Recommended for Extremely High-Pressure, High-Impulse Applications. Exceeds All Performance Requirements for SAE 100R12, EN 856 R12 & ISO 3862 Type R12.
Features & Benefits
- Recommended Coupling: GlobalSpiral, Special One-Piece (MC4-20 Crimper Only) (Size 20) & Stainless Steel S.
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). MegaTuff Hose Lasts up to 300 Times Longer than Standard Hose During Hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 12 |
| Industrial Description | 12EFG4K-MTFXCTN |
| Inside Diameter 1 (in) | 3/4 in (1.91 cm) |
| Length | 328 ft (99.97 m) |
| Maximum Pressure | 4000 psi (275.79 bar) |
| Minimum Burst Pressure (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 1-13/64 in (3.05 cm) |

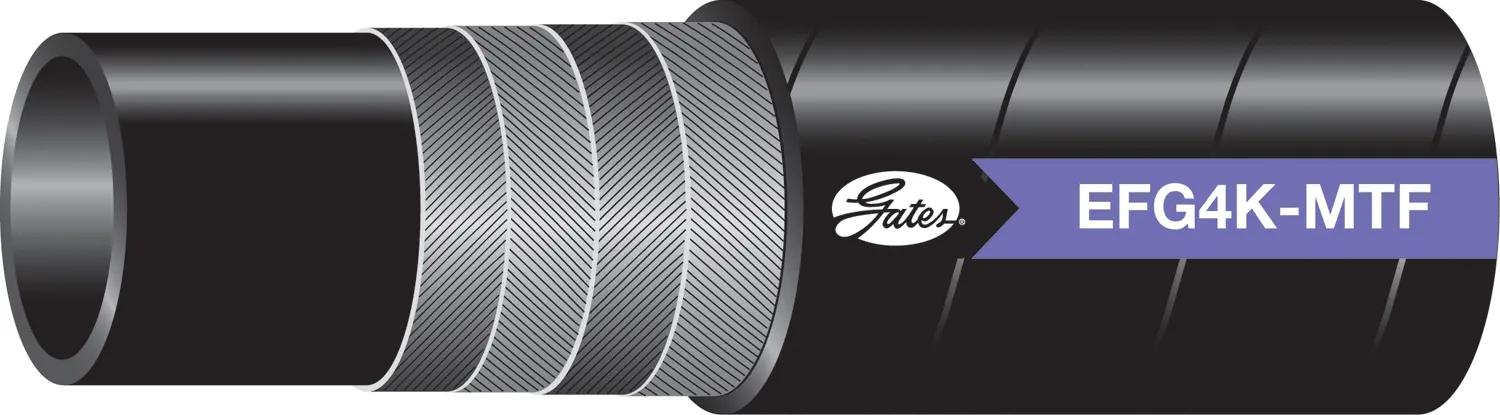

| Product Type | EFG4K Spiral Wire Hose - SAE 100R12 - MegaTuff Cover |
| Radius | 4-45/64 in (11.94 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R12 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Synthetic Rubber |
| Type | Very High Pressure |
Interchanges & Equivalent parts:
| AR1212X200CL |
| SR1212X100 |
| H430R12100 |
| 721ST12 |
| 721TC12 |
| 772ST12 |
| 772TC12 |
| 70877 |
| 12EFG4KMTFXCTN |
| 04029748 |
| 722ST12 |
| 46511405 |
