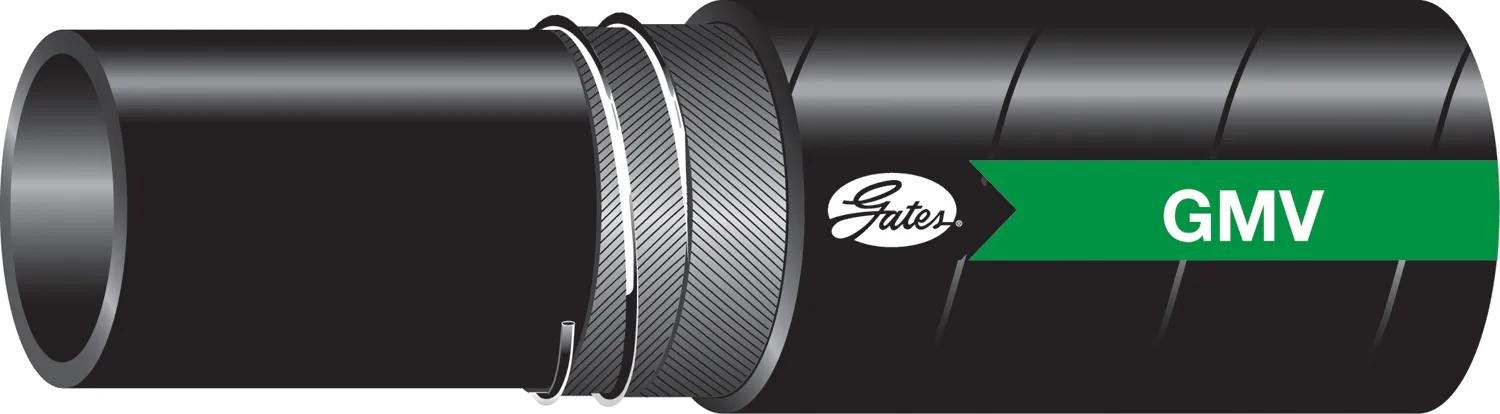

Hydraulic Hose, Le: 50 pi, ID: 3/4 in, GlobalSpiral
#GAT70184
Product Overview
Recommended for Petroleum & Water-Base Hydraulic Fluids in Suction Lines or in Low Pressure Return Lines. Meets or Exceeds Requirements of SAE 100R4. Uses Half the Bend Radius of SAE 100R4.
Features & Benefits
- Meets Marine ABS & DNV-GL w/ Use of HeatGuard High Temp Sleeve. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C). Recommended Coupling: GL, GlobalSpiral Plus & MegaCrimp (Sizes 12 – 20) (Use Clamp Over Beaded Nipple).
Specifications
| Color | Black |
| Coupling Recommendation | GL, MegaCrimp |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Dash Size | 12 |
| Industrial Description | 12GMVXCTN |
| Inside Diameter 1 (in) | 3/4 in (1.91 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 350 psi (24.13 bar) |
| Minimum Burst Pressure (PSI) | 1400 psi (96.53 bar) |
| Outside Diameter | 1-7/32 in (3.1 cm) |
| Product Type | GMV Global MegaVac Return Line & Suction Hose |
| Radius | 2-1/2 in (6.35 cm) |
| Reinforcement | Double Spiral Braid w/ Helical Spiral-Wire |
| Standard | SAE 100R4 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Tube Description | Black, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 25 inhg (12.28 psi) |
Interchanges & Equivalent parts:
| GR412X100 |
| GR412X100CL |
| H03912150 |
| FC61912 |
| 81112 |
| 811HT12 |
| 70184 |
| 12GMVXCTN |
| FC619-12 |
| C12 |
| U312 |
| U412 |
| 266112 |
| FC31812 |
| 04030265 |
| FLEXOR4 |
