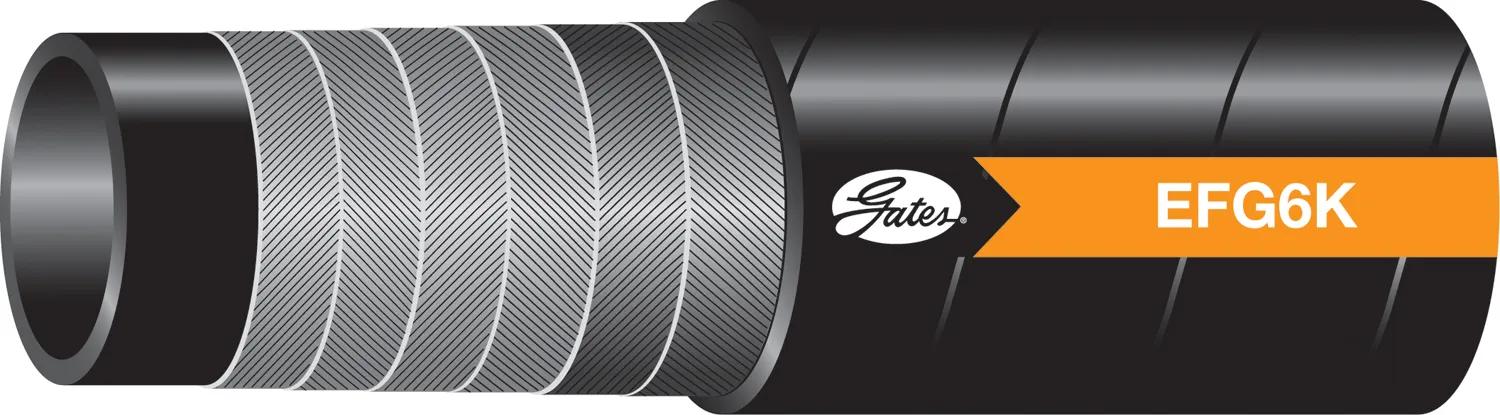

Hydraulic Hose, Nitrile Tube, Black, 3/4 in ID, 1500 ft Length, MegaCrimp, SAE 100R15
Product Overview
EFG6K hydraulic hose is recommended for extremely high-pressure, high-impulse applications such as hydrostatic transmissions. Compatible with biodegradable hydraulic fluids including polyolester, polyglycol, vegetable oil, and standard petroleum-based fluids. Designed to meet or exceed SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10, -12), EN 856 4SH (-12, -16, -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). The 12EFG6K meets ISO 18752 Grade D. Recommended couplings include Global Spiral™, Global Spiral MAX Pressure, and Stainless Steel S couplings (-6 through -20).Hydraulic Hose, 4-Spiral, Wire Reinforcement, Black, Polychloroprene Cover, Nitrile Tube, 4.7 in Bend Radius, 6000 psi Burst Pressure, 3/4 in ID, 1.24 in OD, SAE 100R15, EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16 and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). 12EFG6K, ISO 18752 Grade D Standards, -40 to 250 °F Temperature Range, 6000 psi Working Pressure, 1500 ft Length, For Extremely High Pressure and High Impulse Hydraulic
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG6K is Designed to Meet or Exceed All Requirements of SAE 100R15 Specifications & Performance Requirements of EN 856 4SP (Sizes 6, 8, 10 & 12), EN 856 4SH (Sizes 12, 16 & 20), and ISO 3862 Type R15 (Sizes 6, 8, 10, 12, 16 & 24).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S (Sizes 6 - 20).
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- For use with Global Spiral™ couplings [G20 Series], Global Spiral Max pressure couplings [G23 and G24 Series] and stainless steel spiral couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii (except -32).
- Meets Flame Resistance Acceptance Designation MSHA 2G.
- -6 to -20 validated with Global Spiral™; -24, -32 with Global Spiral™ maximum.
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure.
- EFG6K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15.
- 6000 PSI constant pressure for all ID's.
Specifications
| Application | Extremely High Pressure and High Impulse Hydraulic |
| Burst Pressure | 24000 psi (1654.72 bar) |
| Color | Black |
| Coupling Recommendation | GlobalSpiral, GlobalSpiral MAX Pressure, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 12 |
| Industrial Description | 12EFG6KXCTN |
| Inside Diameter | 3/4 in |
| Length | 1500 ft |
| Maximum Pressure | 6000 psi (413.68 bar) |
| Outside Diameter | 1.24 in |
| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Type | Extremely High Pressure Hose |
| UPC | 742330022405 |
| Working Pressure | 6000 psi |
| Bend Radius | 4.7 in |
| Reinforcement Type | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standards | SAE 100R15, EN 856 4SP (-6, -8, -10, -12), EN 856 4SH (-12, -16, -20), ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24), ISO 18752 Grade D |
| Tube Material | Black, Oil-Resistant, Synthetic Rubber (Nitrile) |
| Product Category | Hydraulic Hose |
Interchanges & Equivalent parts:
| G4SH12X200 |
| GYHG4SH-12X200 |
| G4SH12X100CL |
| G4SP12X100 |
| G4SP12X100CL |
| GR1512X100CL |
| H43012100 |
| H46412100 |
| H48512100 |
| H48712150 |
| FC25412 |
| 73112 |
| 4SP12 |
| SR1512 |
| HSH12A |
| H46412 |
| H85012 |
| HT612 |
| N312 |
| EC60012 |
| GH50612 |
| 04029629 |
| 70839 |
| 12EFG6KXCTN |
| 46510363 |
| FLEXOR4SHFLEXOR4SHECOLINE |
| 515012 |
| 46511288 |
