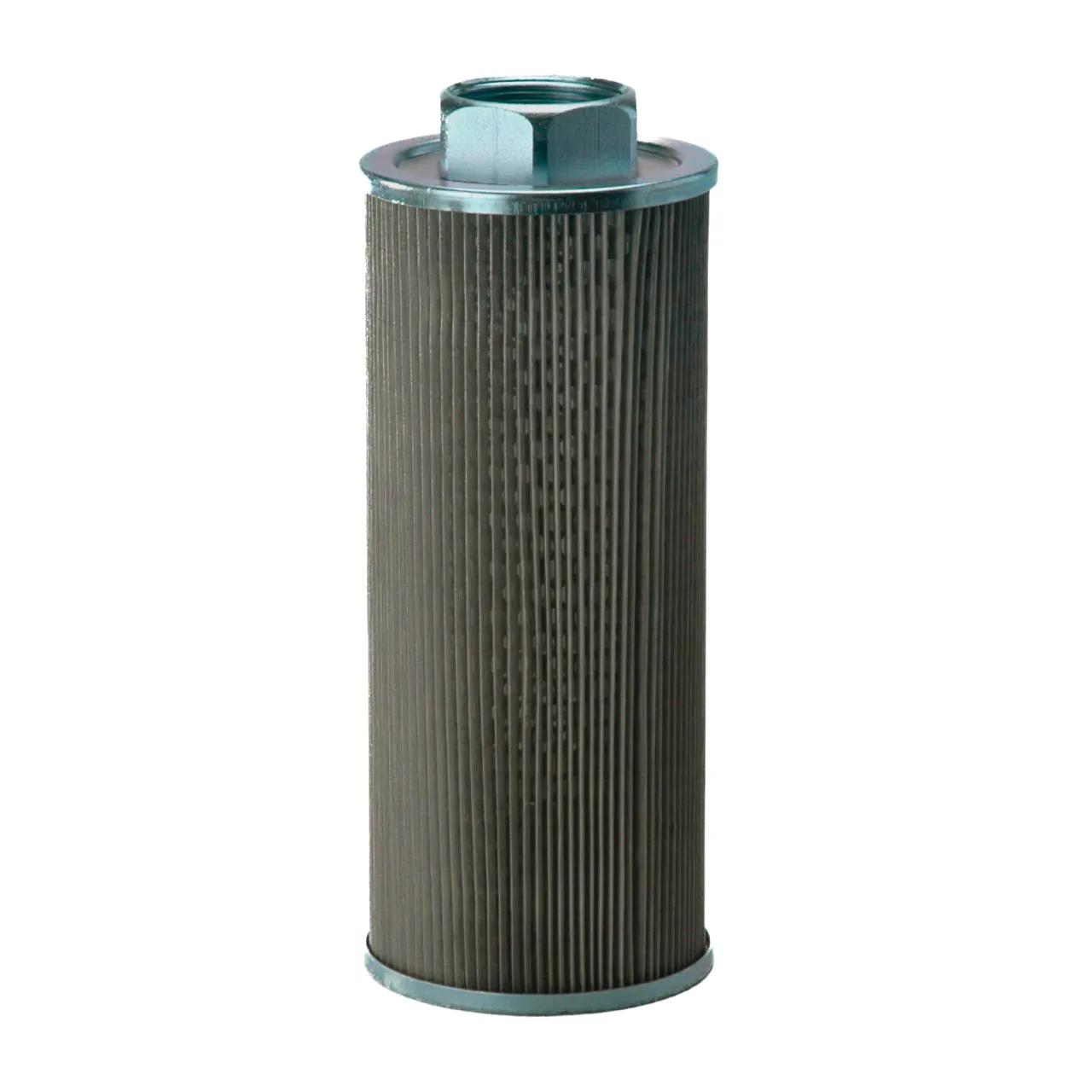

Hydraulic Strainer L: 9,85 in, OD: 3,95 in
#DONP173914
Product Overview
HYDRAULIC FILTER, STRAINER
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.91 psi (0.2 bar) |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 2 | 150 Micron |
| Efficiency Beta 2 (Micron) | 150 Micron |
| Length | 9-27/32 in (24.99 cm) |
| Outer Diameter | 3-61/64 in (10.03 cm) |
| Outlet Diameter | 2.48 in (63 mm) |
| Length Range | 9 to 9.99 in |
| Style | Strainer |
| Thread Size | 1 1/2 NPT |
Interchanges & Equivalent parts:
| HF6263 |
| SEH50112100RV3 |
| 937491 |
| TFS15403 |
| WSS50125X |
| AS50112100RV3 |
| SE50100RB3 |
| ST50100RB3 |
| 2191-P173914 |
| DONP173914 |
| DN P173914 |
| DN P173914 |
| F26C150B |
